| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Frenquency: |
50Hz/60Hz |
| Output Voltage: |
0-3kv/3.3kv/4.16kv/6kv/6.6kv/10kv/11kv/13.8kv |
| Application: |
High Frequency Converter Transducer |
| Output Type: |
Triple |
| Principle Of Work: |
Vector Control Transducer |
| Switch Mode: |
PWM Control |
| Main Circuit Type: |
Voltage |
| Brand: |
Rxpe |
Product Description
RXPE-- High-voltage Frequency Converter
IGBT from Siemens
Four Quadrant Operation
TUV CE ISO9001certificate
With foreign references
High-voltage frequency converter
MVC of RXPE is the 6KV/800-8000kVA series middle-voltage motor energy saving speed product (including mine hoist traction-type middle-voltage inverter, etc. ) developed using currently international advanced IGBT power module series multilevel technology, digital control technology, SPWM pulse width modulation technology and superconducting heat pipe cooling technology, voltage multi-module series technology and vector control technology.
It has features of high efficiency and energy saving, high power factor and high reliability, and is widely used in coal, metallurgy, electric power, building materials, petroleum, chemical industry, papermaking, water supply and drainage and other industries, to achieve variable speed operation and optimized control of middle-voltage motor.
MVC-Performance
-- Operation mode settings
Closed loop operation mode and open loop operation mode
-- Frequency settings
Computer settings and simulation settings
-- Control method settings
Local control, host computer control, remote dialing control
-- Display and records of operation data
-- Operation state and parameters of displayable frequency converter
-- Operation state and parameters of automatically recording frequency converter
-- Users and maintenance personnel can inquiry and print operation records
-- Failure self-examination and alarm
Has functions of failure self-examination and inquiry, display failure and position alarmed, at the same time, switch off the part of failure, and inquiry records of the failure.
-- Perfect protection function
Current limit protection, over-current protection, over-voltage protection, under-voltage protection, unbalance protection, over-temperature protection, control system failure protection, abnormity of cooling fan protection, and so on.
-- Bypass function
-- When a single frequency conversion power unit occurs failure, the system can automatically bypass the unit, the equipment can still operate normally.
-- When the system occurs a serious failure, the user can switch off the high-voltage frequency converter with the bypass switch, make the motor operate under working condition without frequency conversion.
-- Operation in the four quadrant
MVC can also achieve turning clockwise, turning anticlockwise, traction, electric braking, and other functions to meet the speed requirements of loads required to operate in the four quadrant, such as hoist, traction, and so on.
-- Function of "one drive multiple arrangement"
Due to the frequency converter adopts the high-high mode, the rated output voltage is equivalent to the voltage of the power supply grid and rated voltage of the motor, it is easy to realize the scheme that one frequency converter controls multiple motors.
-- ki(I=1, 2 ^n) close, ki '(I '=1, 2^n) cutout, motor Mi can operation at power frequency.
-- ki cutout, ki 'close, Km close, motor Mi can operation at variable speed.
-- If both Ki, ki ' adopt vacuum electric switch, the frequency converter can achieve functions of soft start and automatically scheduling start and stop of the motor based on demands.
MVC-Application
Motor Drive Series__MVC__Application__Mine Hoist
--Hoist middle-voltage frequency conversion Project of Xiaoqing Mine of Iron Coal Company
Motor Drive Series__MVC__Application__Fans
--The main fan frequency conversion reconstruction project of Tiemei Group
Motor Drive Series__MVC__Application __Pumps
--Slag Slurry Pump Frequency Conversion Project of Gongchangling Mining Company
MONTNETSRONGXIN TECHNOLOGY GROUP Co., Ltd., one of the listed companies in China, is mainly engaged in the research, development and production of high-power power electronic equipments. The products include high-voltage power grid reactive power compensator, harmonics filters, series compensator, variable frequency converter, and inverter.
RXPE's products are widely used in power system, metallurgy, coal mining, nonferrous metals, electric railway, new energy, petrochemical, aerospace, shipping and relevant areas. Business range covers E. U countries like Germany, Italy, Turkey; Asian countries such as China, India, Vietnam, Thailand; African countries like Nigeria; And South American countries like Brazil.
RXPE has passed the Germany TUV certification, European Union CE-LVD certification, Switzerland SGS ISO9001, ISO14001, OHSAS18001 and other international certificates. The products are in full compliance with international standards.

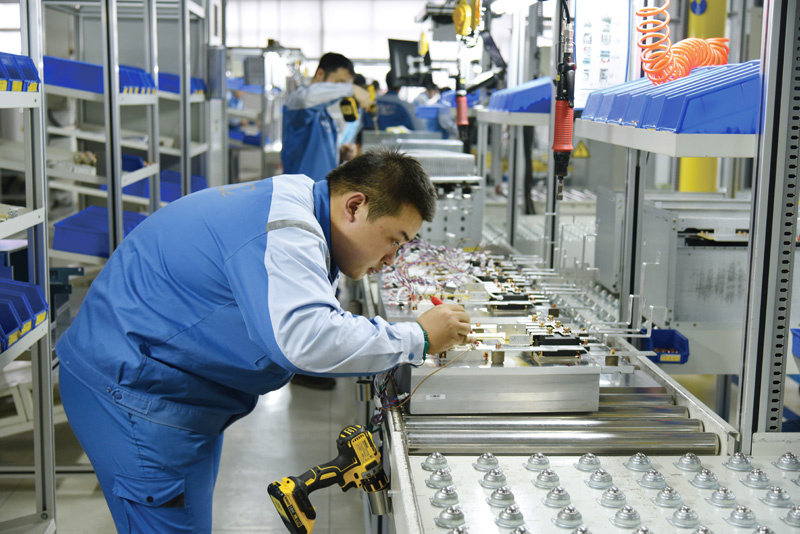

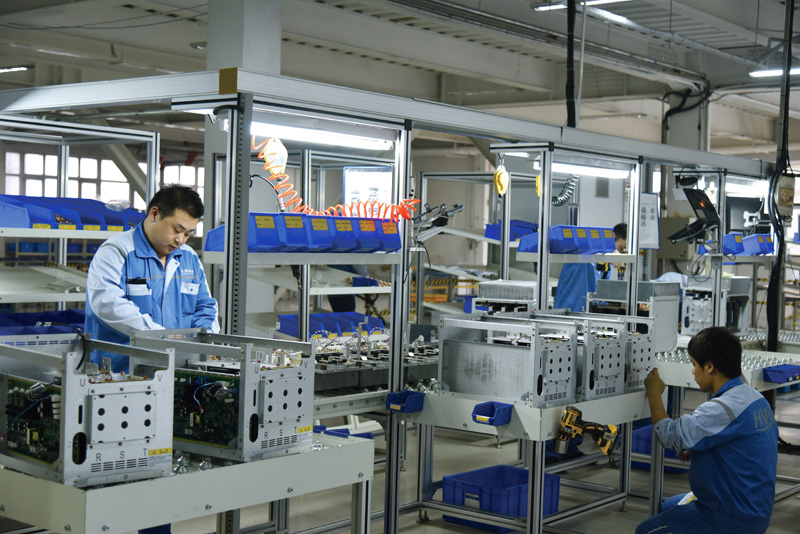

RXPE owns one of the top R & D team, advanced power electronics test/manufacture bases and a total construction area of more than 80000 square meters, including 66kV/16000kVA medium-voltage substation, medium-voltage frequency converter Full-load Test Center. with the innovative research capacity and multidisciplinary team from EU and China, RXPE has possessed nearly 40 patents, 10 software copyrights and formulated two national standards.
RXPE will always commit itself to promote sustainable development of society and improve clients' performance with its leading technologies and services.
Please feel free to contact with us.
