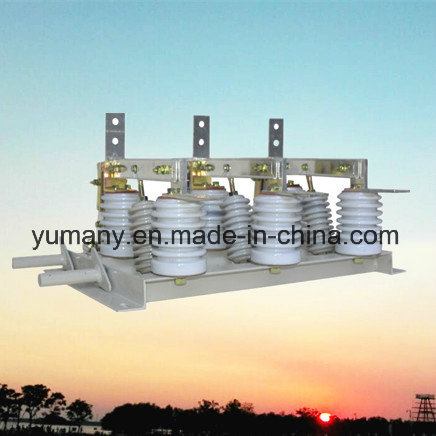

Hv Indoor Service Disconnect Switch with Earth Isolator (GN24-12D/630A)

Name: Hv Indoor Service Disconnect Switch with Earth Isolator (GN24-12D/630A)
Brand: all-electronics-online.com
SKU: 714654612
Availability: InStock
Rating: 4.6 (53 reviews)

Price:	US $ 180-306/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	GN24-12D/630A
Operating Mechanism:	with CS6-2 and D Series Equipped with CS6-1
OEM Or ODM:	Accepted
Standard:	IEC62271-102
Voltage:	24kv
Type:	High-voltage
Structure:	Three-column Disconnector
Installation:	Indoor High-voltage
Operation:	Manual
Series:	Three
Run:	Plug-In
Switching Mode:	Single Throw-in
Certification:	CE
Brand:	Ymany

Product Description

GN24-12D model indoor HV disconnect switch applies to power system of rated voltage 12KV, AC 50Hz, it is equipped with CS6 manual operating mechanism and is used to break and make circuit under no-load. there are additional pollution abatement type, high altitude type and electrified display.
1. Environmental Conditions

Suitable Altitude: 1000m
Suitable Temperature: -30ºC ~ +40ºC
Relative Humidity: Daily mean ≤95%, monthly mean ≤90%
No conductivity dust.
No insulation object with devastating metal and corrosive gas.
No violent vibration and striking.
No explosive danger and fire.

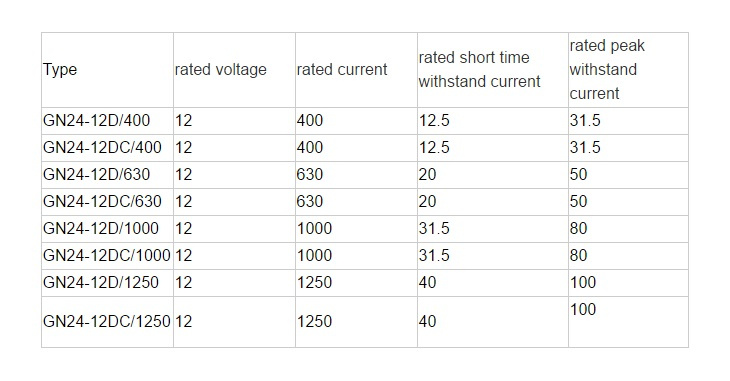

2. Technical Data

NANJING YUMANY IMP & EXP Co., Ltd located in Nanjing the ancient capital of the six Dynasties of China with transport facilities. We are closed to Nanjing port, Shanghai port and Ningbo port.

We have been engaged in the import and export of kinds of goods and technology for 12 years. Inparticular we have rich experience in electrical products, electronic products, arts and crafts. Such as dual power automatic transfer switch, LED auto lights, HV disconnect switch, PAR light, time switch, relay, auto parts, contactor, valves, micro and limit switch, embroidery etc.

We have a professional service team with 16 professional employee, we could answer your any question for 24 hours*7 days.

In past 8 years credible sales network has been set up and we have our regular clients from over 100 countries and regions worldwide.

Our principle as "clients' needs come first. " Let's advance hand in hand to create beautiful futures together. Our aim is to be your most trusted partner.
