| Prod Model: |
HTW-31-WT26P |
| Thermostat Operating Voltage: |
2 X AA1.5 V, Alkaline Batteries. |
| Backup Storage: |
Eeprom |
| Receiver Operating Voltage: |
230 VAC, 50/60 Hz |
| Maximum Voltage / (Ohmic) Load: |
250 VAC/10 a. |
| Frequency: |
868 MHz/433MHz Optional |
| Channel Selection: |
by Programming The Thermostat and The Receiver |
| Switching Options: |
5+1+1 Day, 4 Periods Each Day. |
| Receiver Switch Contacts: |
No and Nc. |
| Temperature Settings: |
5°c ~ 35°c, 0.5°c Increments. |
| Accuracy: |
+/- 0.5°c |
Product Description

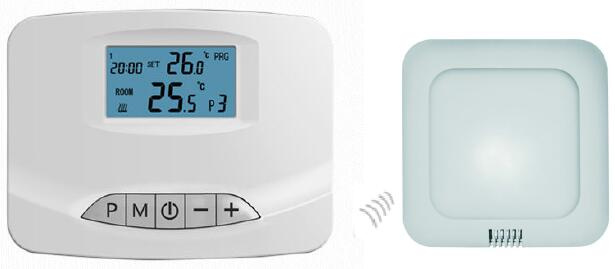

GeneralHVAC Digital Wireless Remote Heating Thermostat Replace Honeywell(HTW-31-WT26P) series are wireless room thermostats with 5+1+1 days programmable function. It consist of two parts, transmitter and receiver. Between transmitter and receiver, they are radio frequence communication. Normally tranmitter install at room or put on desk for convenient use, and receiver directly connect with the boiler or other heaitng device. Transmitter acquires the room temperature by the intergrated sensor, after comparing with setpoint to send control commands(on/off signal) for receiver to start /stop boilers or other heating device. With program funciton, user can preset the setpoint for each day also( max. 4 period), after done, thermostat can work according to preset value . It is widely used in residential building, apartments, commercail space etc.Features• Can be placed anywhere in the home to detect and control the temperature of an area of the user's choices
• Link with the receiver via RF

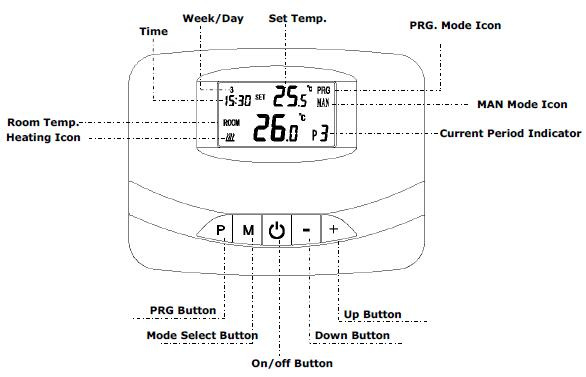

• Time+Setpoint+Ambient Temp display
• 5+1+1. 4 Periods Programmable Heating Schedule.
• Battery powered easy change .
• Anti-freezing protection
• Builtin NTC Air Sensor
• Customized Logo printing optional
• Use highly reliable single-chip microcontroller and resist the interference strongly.

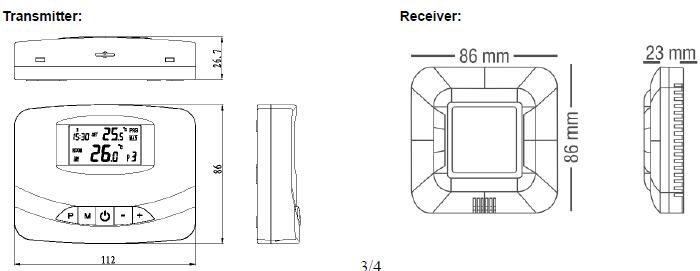

Technical Parameters• Thermostat dimensions: Surface mounted, 112mm x 86mm x 22.7mm.
• Receiver dimensions: Surface mounted, 86mm x 86 mm x23mm.
• Backlight:White Backlight
• Transmitter Power Source 2*AAA battery
• Receiver Relay Contact 10A-Voltage-free
• Room temperature setting range:5°C---35°C
• Accuracy:0.5°C
• Wireless frequency band:868MHZ/433MHZ optional
• Wireless transmitte range:100m in the open air
