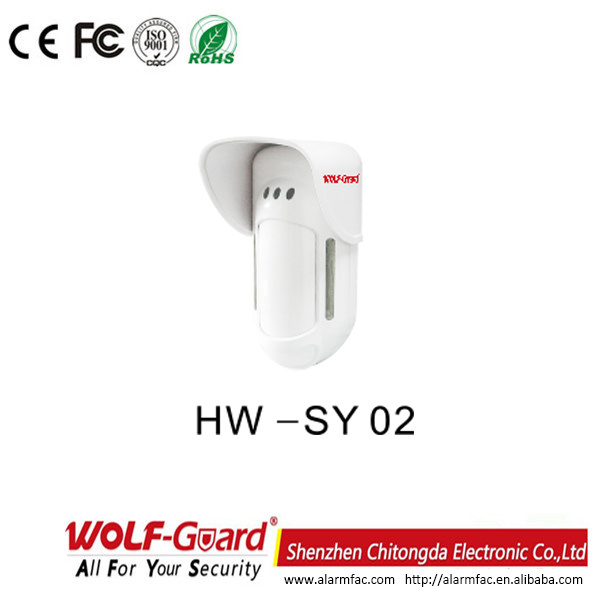

HW-SY02 Infrared Microwave Complex Intrusion Detector

Prod Model:	HW-SY02
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Detecting Rang:	6-12m
Detecting Angle:	Horizontal1110°vertical60°
Anti-Light:	2000lux
Anti-Interfere:	30V/M
Transmission Frequency:	433MHz±0.5MHz
Sending Distance:	No Obstacle 80m
Static Current:	≤75ua
Alarm Current:	≤25mA
Battery Type:	9V

Product Description

HW-SY02 Infrared Microwave Complex Intrusion Detector

Shenzhen Chitongda Electronic Co.,Ltd.
Address:Block2, Chitongda Group Technology Park, No.108 of Baoshi WestRoad,Shiyan Street, Bao'an District, Shenzhen, China
Website: www.alarmfac.com   www.YL-007.com    Tel:0755-33977007 ,Mobile:+8615112267762   +8615817395430


HW-SY02 Infrared Microwave Complex Intrusion Detector
Feature:

1.It adopts self-designed DSP chip with patented frequency adjustment calculation technology.

2.It works as an anti strong light detector and decreases misinformation.

3. It can effectively recognize weight and size of intruder, so it prevents misinformation when pet interferes.

4.Good at auto temperature adjustment.

5.Have excellent detecting functions.

*waterproof and fit for all weather conditions
*dual PIR sensors with high sensitivity and accuracy
*anti-pet function
*anti-masking: can even detect trasparent object such as glass, plastic bags, etc

 Spec:
Pet Weight:10kg
detecting rang:6-12m
detecting angle: Horizontal1110°Vertical60°
Anti-light:2000Lux
Anti-interfere:30V/m
Transmission frequency:433MHZ±0.5MHZ
Sending distance:NO obstacle 80m
Static current:≤75uA
Alarm current:≤25mA
Battery type:9V
Better life:6months
Work condition: Temperature : -10 ~40°C
Humidity : ≤ 90%
