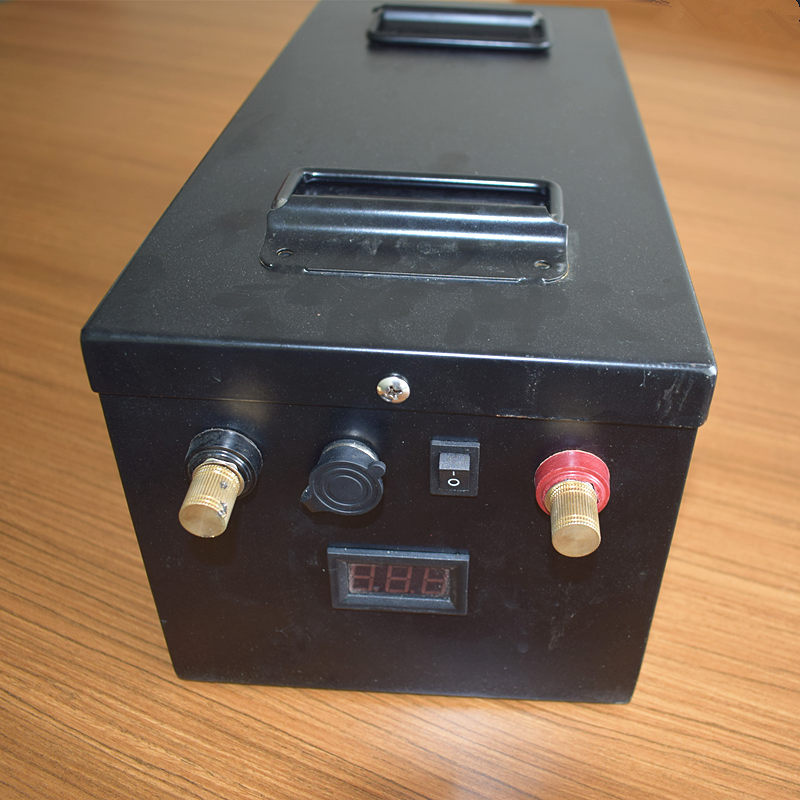

Hxx 12V 220ah Lithium Battery Pack Financial Equipment Lithium-Ion Battery Pack Customization Solar Energy Storage

Prod Model:	H03S220
Color:	Black
Weight:	17kg
Type:	Lithium-Ion Battery Pack
Connection Mode:	Series and Parallel
Rated Capacity:	220ah
Usage:	Solar Energy Storage
Electrolyte:	No

Product Description

HXX 12V 220ah lithium battery pack Financial Equipment Lithium-Ion Battery Pack Customization solar energy storage

Cell	model		best quality diy
	Capacity		diy
	rated voltage(V)		3.2V
	Typical Impedance (mΩ)		≤5mΩ
	Battery material		Lifepo4
PACK	Combination method		4S
	Minimal capacity		220AH
	Nominal voltage		12.8V
	Max. charge voltage		14.6V
	Discharge cut-off voltage		≤10.5V
	Max Charge current		30A
	Max Discharge current		200A
	Working Current		100A
	Weight (Approx.)		17
	Max. dimension(L×W×H)(mm)		435*160*150mm
	Operating  temperature	Charge temperature	0ºC~45ºC
		Discharge temperature	-10ºC~55ºC
Protection Board (BMS)	Single cell over-charge cut-off voltage		3.85V
	over-charge release voltage		3.65V
	Single cell under-discharge cut-off voltage		2.3V
	Discharge release voltage		2.5V
	Over-discharge cut-off current		250A
	Over-discharge cut-off current delay		1.5S
	Short-circuit protection		Yes
	Short-circuit protection delay		500uS
	Condition for the recovery of over-current and Short-circuit		self
	Balance current		45mA
	Balance Condition		3.60V
	communication		NO

(Parameter we offered below just for reference , customer can directly buy it .Neverthless , we offer the   full capacity ,safety deep cycle and long cycles battery.)


(if you do not find what you want, please contact or E-mail us, we accept customize.)

Application for lithium-ion battery:
a).Portable Equipment:
 Post machine,hand set,the portable printer,data terminal;
b).Medical Instruments:
 Ecg monitoring instrument, ultrasonic,breath machine,electrocardiograph
c).Industrial instrument and communication instrument:
 Flaw detector,fusion splicer,optical power meter,gas detector
d).Consumer Electronics:
 PDA,MID,PC,POS machine,electric tool,laptop. ebike,emergency light power,data camera, DV, speaker,mp3,mp4 portable DVD and so on.
e).Portable Equipment:
 POS, Portable printer, handset .Electric toy: RC car/ boat/helicopter etc.


>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
