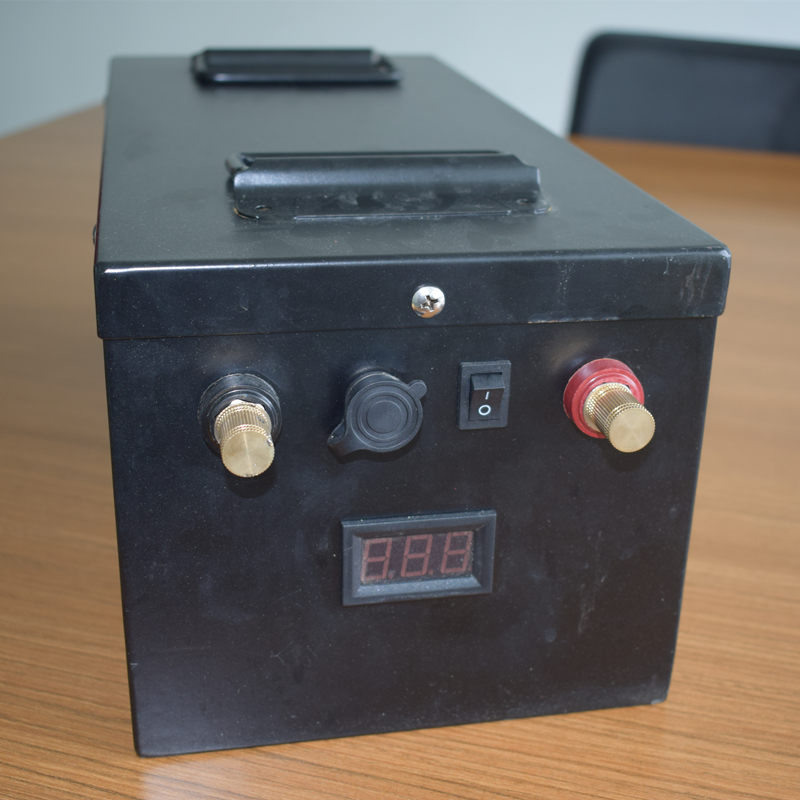

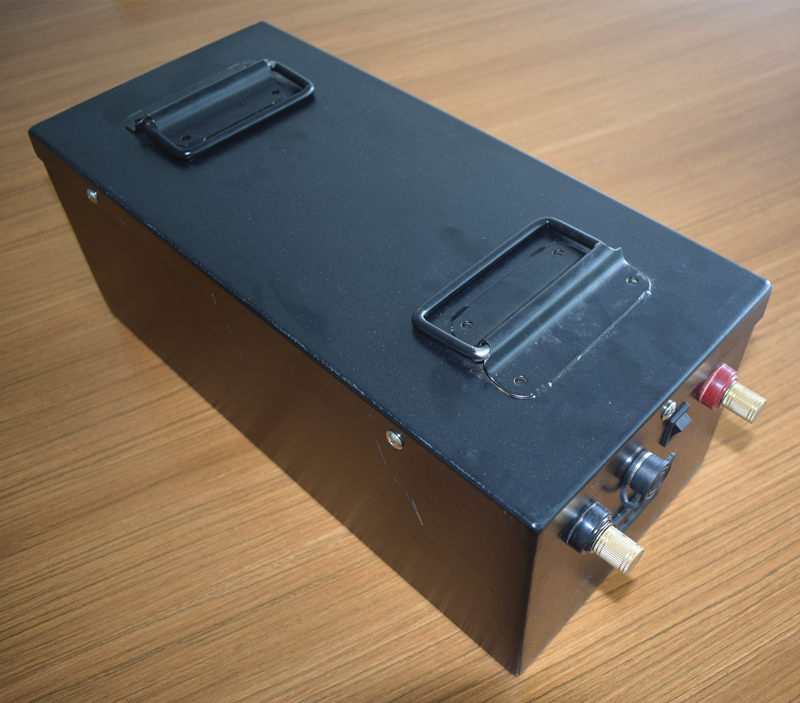

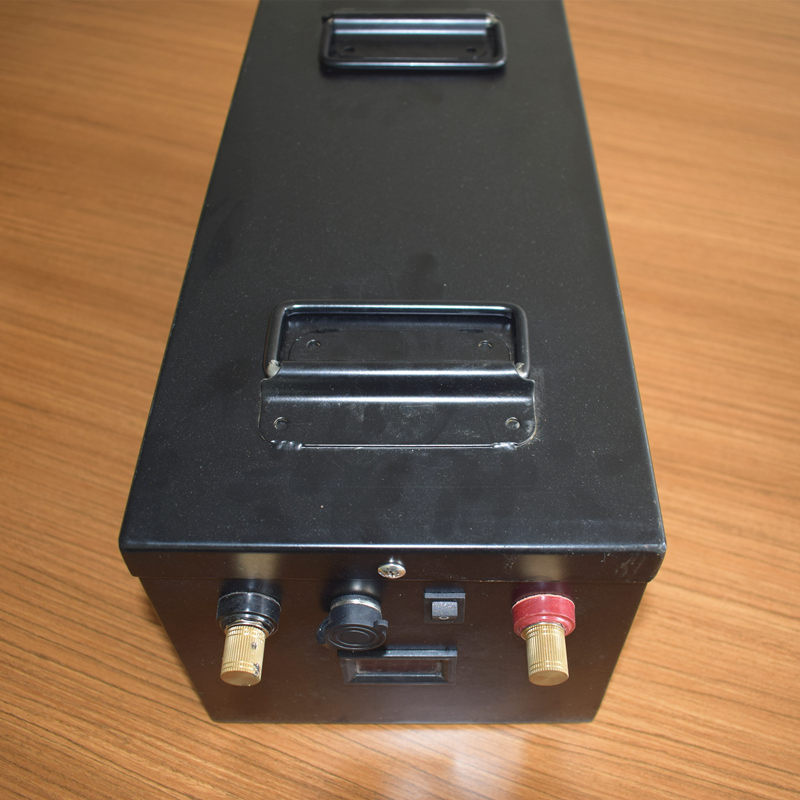

Hxx 12V220ah Lithium Battery BMS High Discharge Rate Emergency Reserve

Prod Model:	H03S220
Color:	Black
Type:	Lithium-Ion Battery Pack
Connection Mode:	Series and Parallel
Rated Capacity:	220ah
Electrolyte:	No

Product Description

HXX 12v220ah lithium battery BMS high discharge rate emergency reserve

Cell	model		best quality diy
	Capacity		diy
	rated voltage(V)		3.2V
	Typical Impedance (mΩ)		≤5mΩ
	Battery material		Lifepo4
PACK	Combination method		4S
	Minimal capacity		220AH
	Nominal voltage		12.8V
	Max. charge voltage		14.6V
	Discharge cut-off voltage		≤10.5V
	Max Charge current		30A
	Max Discharge current		200A
	Working Current		100A
	Weight (Approx.)		17
	Max. dimension(L×W×H)(mm)		435*160*150mm
	Operating  temperature	Charge temperature	0ºC~45ºC
		Discharge temperature	-10ºC~55ºC
Protection Board (BMS)	Single cell over-charge cut-off voltage		3.85V
	over-charge release voltage		3.65V
	Single cell under-discharge cut-off voltage		2.3V
	Discharge release voltage		2.5V
	Over-discharge cut-off current		250A
	Over-discharge cut-off current delay		1.5S
	Short-circuit protection		Yes
	Short-circuit protection delay		500uS
	Condition for the recovery of over-current and Short-circuit		self
	Balance current		45mA
	Balance Condition		3.60V
	communication		NO

(Accept customizd battery pack, we can't update all items here. If any battery you want,   please take it easy to contact with me tell me the capacity voltage and size you want, thanks.)



(if you do not find what you want, please contact or E-mail us, we accept customize.)

Battery Quality:
1. Cells: A grade cells to make sure batteries in high and full capacity
2. Protection: Dual IC chips, that can anti-shortcircuit, anti-overcharger, anti-overcurrent, anti-overload
3. Compose Type: Injection Technology to make battery more stable
4. Long life cycly, No memory, environment friendly
Advantages:
1, High energy density
2, High working voltage for single battery cells
3, Pollution-free
4, Long cycle life
5, No memory effect
6, Capacity, resistance, Voltage, platform time consistency is good
7, With short-circuit production function, safe and reliable
8, Factory price& High quality
9, Good consistency, low self discharge
10, Light weight, small size


>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
