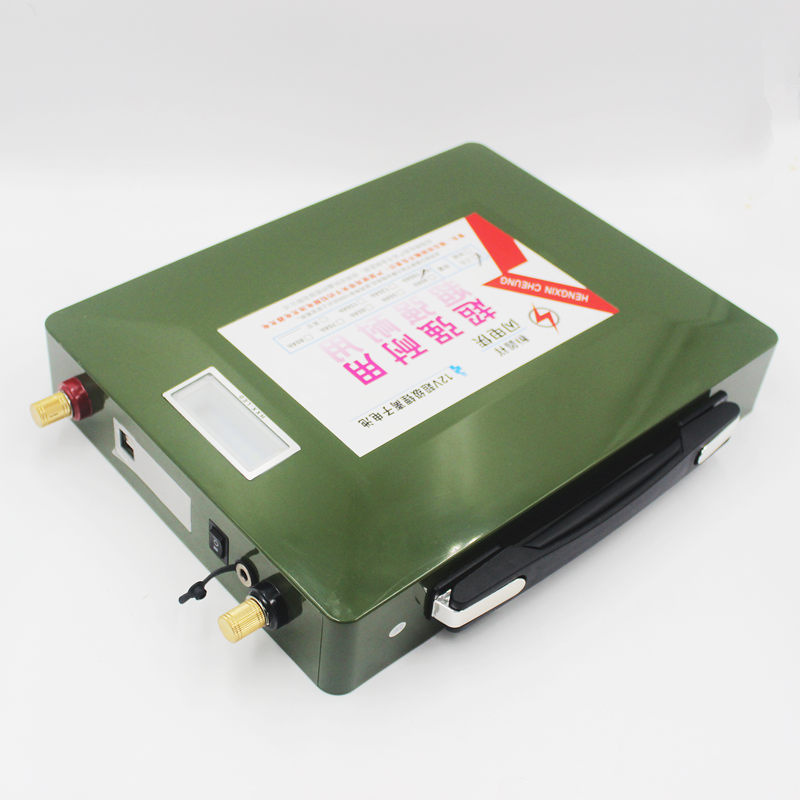

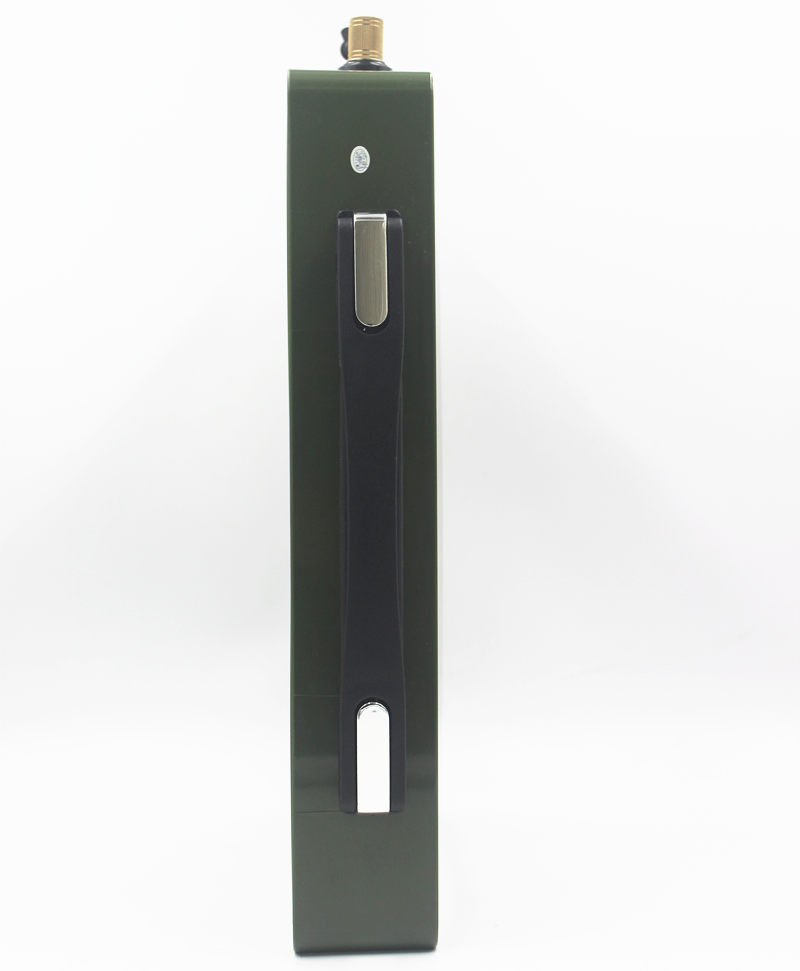

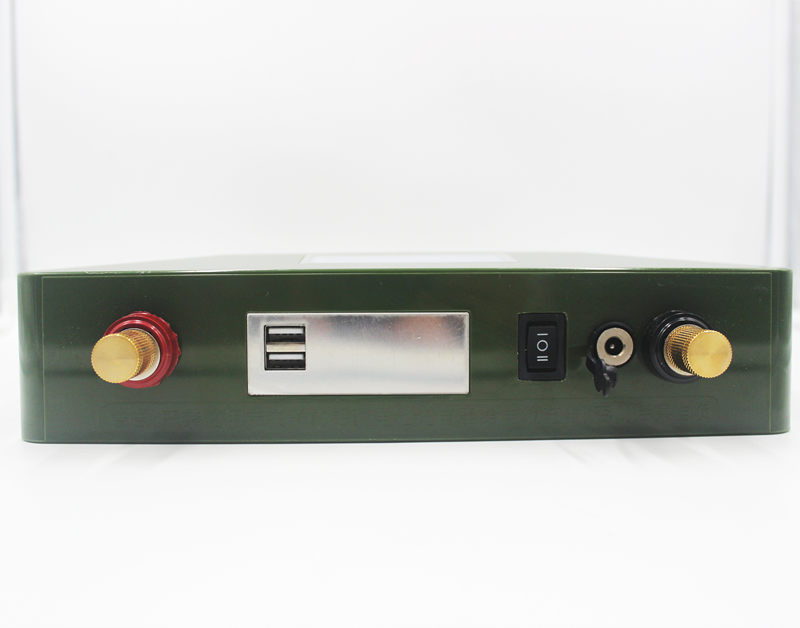

Hxx 12V45ah Lithium Battery Pack ABS Case BMS Solar Street Lightiing Power Supply

Prod Model:	H03N45
Type:	Lithium-Ion Battery Pack
Connection Mode:	Series and Parallel
Rated Capacity:	45ah
Electrolyte:	No

Product Description

HXX 12v45ah lithium battery pack ABS case BMS Solar street lightiing power supply

Cell	model		best quality diy
	Capacity		diy
	rated voltage(V)		3.2V
	Typical Impedance (mΩ)		≤5mΩ
	Battery material		Lifepo4
PACK	Combination method		4S
	Minimal capacity		45AH
	Nominal voltage		12.8V
	Max. charge voltage		14.6V
	Discharge cut-off voltage		≤10.5V
	Max Charge current		60A
	Max Discharge current		120A
	Working Current		100A
	Weight (Approx.)		3.5KG
	Max. dimension(L×W×H)(mm)		335*260*55mm
	Operating  temperature	Charge temperature	0ºC~45ºC
		Discharge temperature	-10ºC~55ºC
Protection Board (BMS)	Single cell over-charge cut-off voltage		3.85V
	over-charge release voltage		3.65V
	Single cell under-discharge cut-off voltage		2.3V
	Discharge release voltage		2.5V
	Over-discharge cut-off current		250A
	Over-discharge cut-off current delay		1.5S
	Short-circuit protection		Yes
	Short-circuit protection delay		500uS
	Condition for the recovery of over-current and Short-circuit		self
	Balance current		45mA
	Balance Condition		3.60V
	communication		NO

(Parameter we offered below just for reference , customer can directly buy it .Neverthless , we offer the   full capacity ,safety deep cycle and long cycles battery.)


Accept customizd battery pack, we can't update all items here. If any battery you want,   please take it easy to contact with me tell me the capacity voltage and size you want, thanks.

Our company is a 10-year battery factory with over 100 workers located in Shenzhen China .Due to there are thousands  of lithium battery models in our factory , it is impossible to list all of them on this websit .Therefore if you can not find the exact model you want , do not hesitate to e-mail us and tell us what you want . Any inquiries or questions from you , will be replied within one hour .

Application for lithium-ion battery:
a).Portable Equipment:
 Post machine,hand set,the portable printer,data terminal;
b).Medical Instruments:
 Ecg monitoring instrument, ultrasonic,breath machine,electrocardiograph
c).Industrial instrument and communication instrument:
 Flaw detector,fusion splicer,optical power meter,gas detector
d).Consumer Electronics:
 PDA,MID,PC,POS machine,electric tool,laptop. ebike,emergency light power,data camera, DV, speaker,mp3,mp4 portable DVD and so on.
e).Portable Equipment:
 POS, Portable printer, handset .Electric toy: RC car/ boat/helicopter etc.

>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
