Hybrd Stepper Motor NEMA11 with Good Performance

Name: Hybrd Stepper Motor NEMA11 with Good Performance
Brand: all-electronics-online.com
SKU: 763765235
Availability: InStock
Rating: 4.5 (99 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	11HA
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Number Of Stator:	Two-Phase
Excitation Mode:	HB-Hybrid
Type:	Electromechanical
Certification:	CE
Brand:	Rb

Product Description

Product Description

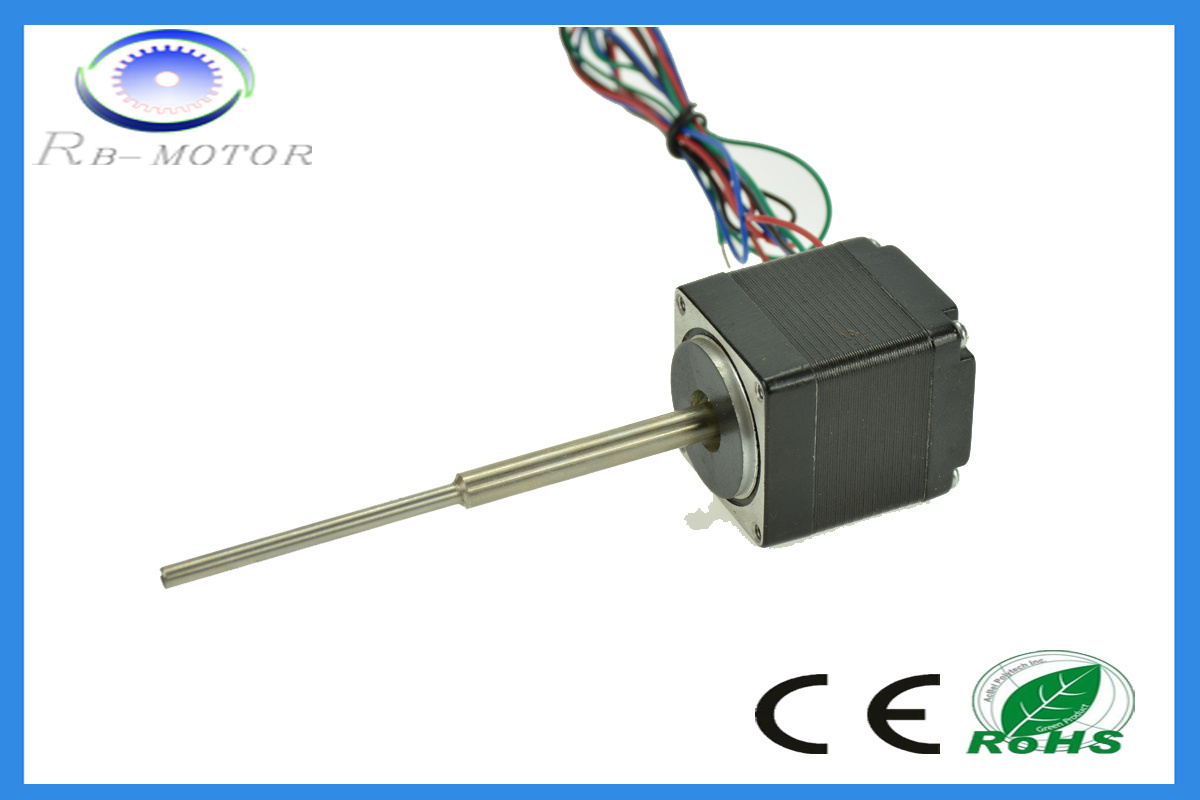

Two Phase 1.8 degree combined NEMA 11 Hybrid Stepper Motor / Stepping Motor / Step Motor 28mm x 28mm ( Double motors )
Motor feature: Smooth movement, High torque,High speed, Low noise
Applied to the printers / 3D printers, the lighting industry,the intelligent spherical camera and the industrial control industry etc.
Technical Specification

Model No.

Step Angle

Number of Winding

Leads of motor

Winding Resistance

Winding Inductance

Rated Current

Rated Voltage

Holding Torque

Detent Torque

Max starting rate

Max slewing rate

Rotor Intertia

Weight

body length

Ohm ±10%

mH ±20%

A/phase

DC V

mN.m

PPS

g2.cm

11HA5-22B-020

1.8

1.32

11.88

260

11.8

2500

3500

34.6

0.100

32.5
