| Prod Model: |
Cosmo Star Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Protection: |
Short Circuit |
| Color: |
Black & White |
| Phase: |
Single Phase |
| Power Source: |
Electric Power & Solar Power & Wind Power |
Product Description

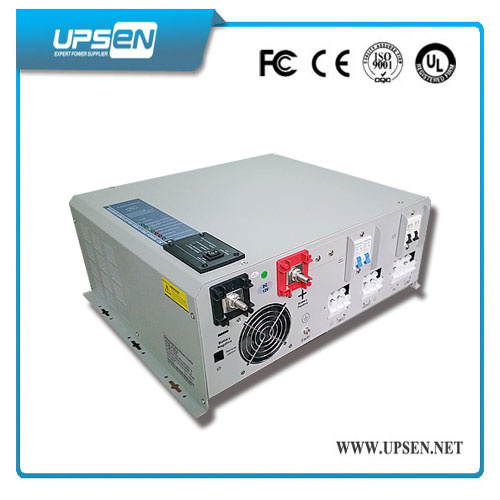

Hybrid DC to AC Power Inverter 1-12Kw with Remote control&RS232 communication port
1: Pure sine wave output (THD< 3%)
2: Build in MPPT solar charge controller 40A or 50A
3: Ups mode and solar inverter mode for your select by switch
Key Features
1: Professional off grid solar system solution, which is combination of big power inverter and solar controller
2: Working modes switch automatically-Ac Grid bypass mode, Inverter Mode, Ac Charging mode, solar
Charging mode
3: Pure Sine Wave output whig matches wave from of AC Grid not matter it on Ac grid mode or inverter
Mode, workable on inductive load

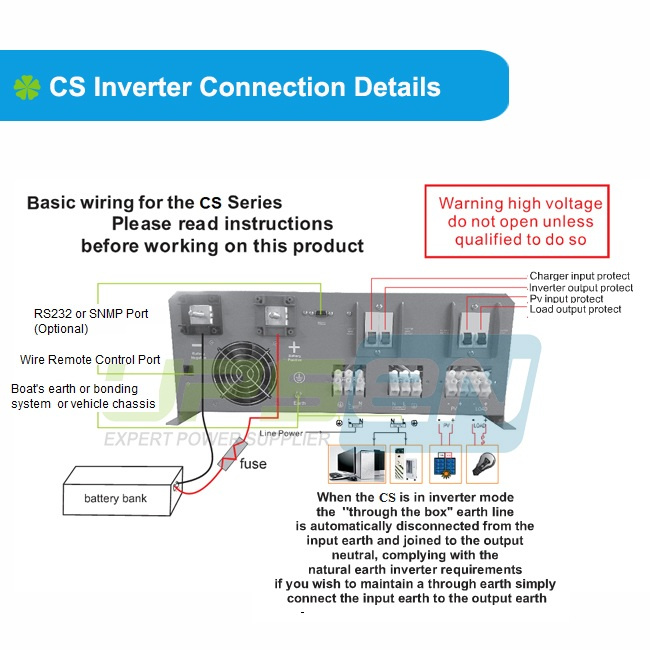

4: Remote control&RS232 communication port
5: Power Saver mode
6: Four stages smart charing, charging current adjusted automatically
7: DIP Switch optional: Selectable charging voltage for various battery type
8: Manual control input&output breakers
9: AC Grid priority&battery priority working mode are selectable
10: AC Grid mode: AC Bypass supplies load when AC is normal, battery invert AC Supplies load when AC is
Off
11: Battery priority: Battery invert supplies load when battery get full-charged; AC Bypass supplies load
When battery low and at the meantime battery get charged from solar controller. It transfers back to
Battery invert mode when battery gel full charged. It males full use of solar energy and saves electricity.
| Model | CS1000 | CS 1500 | CS 2000 | CS 3000 |
| Gerneral specification |
| Nominal Input Voltage | 120VAC/230VAC |
| Low voltage trip | 85V±4%/184±4% |
| Low voltage re engage | 95V±4%/194±4% |
| high voltage trip | 135V±4%/253±4% |
| high voltage re engage | 127V±4%/243±4% |
| Nominal input Frequency | 50Hz or 60Hz (auto sensing) |
| Low freq trip | 47Hz for 50Hz,57Hz for 60Hz |
| High freq trip | 55Hz for 50Hz,65Hz for 60Hz |
| AC output |
| power | 1000W | 1500W | 2000W | 3000W |
| Voltage | 120VAC/230VAC |
| Frequency | 50Hz±0.3Hz |
| Waveform | pure sine wave |
| Crest Power | 3 times of ratings |
| DC input |
| Battery voltage | 12V/24V |
| *2 for 24V model | AC charger mode | Solar inverter mode(battery power priorty mode) |
| Position 1~6 | Position 7 | Position 8 | Position 9 |
| Low battery trip(12V) | 10V | 11V | 10.5V | 10V |
| high battery trip(12V) | 15.5V | 14V | 13.5V | 13V |
| AC charger |
| Input Voltage Range | 90~135VAC/164~243VAC |
| Charge current 12V model | 35A | 45A | 65A | 75A |
| charge current 24V model | 20A | 25A | 35A | 40A |
| solar charger |
| PV Input Voltage Range | 15-30V for 12V ;30-55V for 24V |
| Max.PV open circuit array voltage | 55VDC |
| Charge current | MPPT 40A/50A |
| Bypass |
| bypass without battery connected | Yes |
| Max bypass current | 30amps |
| bypass over load current | 35amps:alarm |
| others |
| LED Display on case | From the right to the left |
| LED1 line mode , LED2 inverter mode, LED3 charging mode, |
| LED4 Fully charged,LED5 over heat shutdown,LED6 Overloadedshutdown |
| LED7 Saving Mode |
| LED Display on switch | Charging Mode(green lighting),inverter mode(green lighting), |
| Alarm(red lighting) |
| Protections | low battery,over charging,over temp,over load, short circuit protection |
| Physical |
| Net Weight(KG) | 20.8 | 22.8 | 24.5 | 29.1 |
| D X W X H(mm) | 486.4*400*181.2 |
