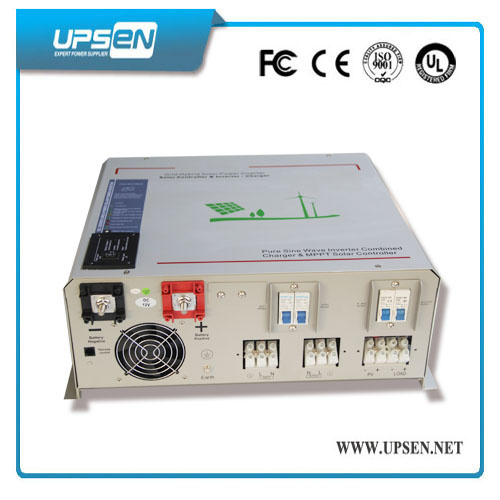

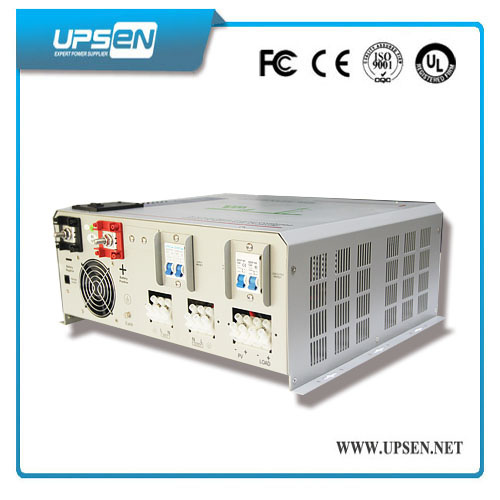

Hybrid Solar LCD Display Inverter off Grid System with Internal MPPT Charge Controller
| Price: |
US $ 100-300/Piece |
| Min Order: |
5/Piece |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |
| Prod Model: |
Cosmo Series inverter |
| Protection: |
Short Circuit,Overcurrent,Overvoltage |
| Color: |
Black & White |
| Power Source: |
Electricpower & Solar Power & Wind Power |
| Controller Charger: |
Inbuilt 30/60AMP MPPT Controller |
| Function: |
Remote Control & RS232 Communication Port or Snmp |
| PV Input And AC Input: |
Yes |
| AC Grid Priority & Battery Priority Work: |
Yes |
| Delivery Time: |
7-10days |
Product Description
Hybrid Solar inverter Off Grid system 5000 Watt 24 volt with MPPT chargerDescription:1):Power Range: 1KW-6KW2):Capacity: 1000W - 6000W Single Phase.
3):Charging current adjusted automatically.
4):Working modes switches automatically.
5):Pure Sine Wave Inverter Combined with Both AC Charger and Mppt Controller together.
Technical Specification| Model | CS 1000 | CS 1500 | CS 2000 | CS 3000 |
| Gerneral specification |
| Nominal Input Voltage | 120VAC/230VAC |
| Low voltage trip | 85V±4%/184±4% |
| Low voltage re engage | 95V±4%/194±4% |
| high voltage trip | 135V±4%/253±4% |
| high voltage re engage | 127V±4%/243±4% |
| Nominal input Frequency | 50Hz or 60Hz (auto sensing) |
| Low freq trip | 47Hz for 50Hz,57Hz for 60Hz |
| High freq trip | 55Hz for 50Hz,65Hz for 60Hz |
| AC output |
| power | 1000W | 1500W | 2000W | 3000W |
| Voltage | 120VAC/230VAC |
| Frequency | 50Hz±0.3Hz |
| Waveform | pure sine wave |
| Crest Power | 3 times of ratings |
| DC input |
| Battery voltage | 12V/24V |
| *2 for 24V model | AC charger mode | Solar inverter mode(battery power priorty mode) |
| Position 1~6 | Position 7 | Position 8 | Position 9 |
| Low battery trip(12V) | 10V | 11V | 10.5V | 10V |
| high battery trip(12V) | 15.5V | 14V | 13.5V | 13V |
| AC charger |
| Input Voltage Range | 90~135VAC/164~243VAC |
| Charge current 12V model | 35A | 45A | 65A | 75A |
| charge current 24V model | 20A | 25A | 35A | 40A |
| solar charger |
| PV Input Voltage Range | 15-30V for 12V ;30-55V for 24V |
| Max.PV open circuit array voltage | 55VDC |
| Charge current | MPPT 40A/50A |
| Bypass |
| bypass without battery connected | Yes |
| Max bypass current | 30amps |
| bypass over load current | 35amps:alarm |
| others |
| LED Display on case | From the right to the left |
| LED1 line mode , LED2 inverter mode, LED3 charging mode, |
| LED4 Fully charged,LED5 over heat shutdown,LED6 Overloadedshutdown |
| LED7 Saving Mode |
| LED Display on switch | Charging Mode(green lighting),inverter mode(green lighting), |
| Alarm(red lighting) |
| Protections | low battery,over charging,over temp,over load, short circuit protection |
| Physical |
| Net Weight(KG) | 20.8 | 22.8 | 24.5 | 29.1 |
| D X W X H(mm) | 486.4*400*181.2 |

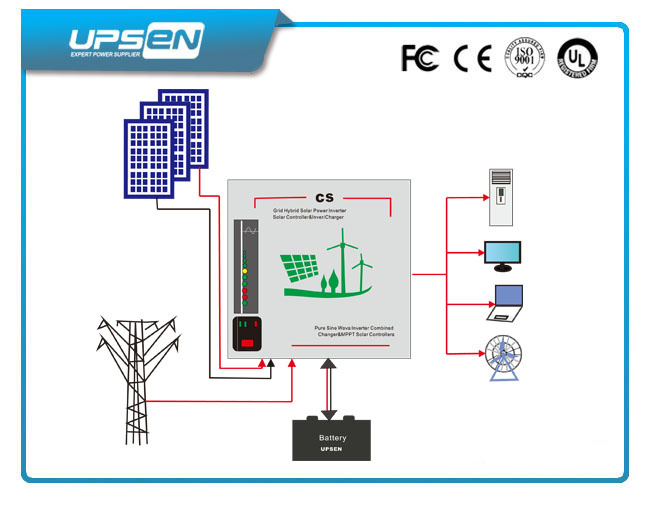

Key Features:1):Professional off grid solar system solution, which is a combination of big power inverter and solar controller.2):Working modes switches automatically- AC Grid bypass mode, inverter mode, AC Charging mode, solar charging mode.3):Pure sine wave output which matches wave form of AC grid no matter is on AC grid mode or inverter mode, workable on inductive load.4):Remote control & RS232 communication port.5):Power saver mode.6):Four stages smart charging, charging current adjusted automatically.7):DIP switch optional-Selectable charging voltage for various battery type.8):Manual control input&output breakers.9):AC Grid priority & battery priority working mode as selectable.10):AC grid mode: AC Bypass supplies load when AC is normal, battery invert AC supplies load when AC is off .11):Battery priority: battery invert supplies load when battery get full-charged; AC bypass supplies load when battery low and at the meantime battery get charged from solar controller. It transfers back to battery invert mode when battery get full charged. It makes full use of solar energy and saves electricity.12):LCD&LED Screen for option.13):Inbuilt MPPT Solar Charger Controller 20/30/40/50/60A, AC Charger 35 - 70A, with DC Voltage 12/24/48VDC.14):Easy to install & easy to operate & easy to solve.15):Low DC voltage supports home & office appliances.
Package:Dimension:CS600-3000W-486*400*181mm,CS4000-6000W-486*432*181mmWeight:22KG-56KG
UPSEN Warranty TermsUPSEN provide warranty for products from the date of purchase as follows:1.UPS: 1 Year for Offline & Line Interactive UPS, 2 Years for Online UPS 1K-20Kva, 3 Years for UPS above 20Kva.2.BATTERY: 1 Year for Sealed Lead Acid Battery, 2 Years for AGM Deep Cycle Battery, 3 years for Gel Battery, 5 Years for OPzV Battery.3.INVERTER: 3 Years for Low Frequency Inverter, 2 years for High Frequency Inverter.4.CONTROLLER: 2 years5.ELECTRIC VEHIVLE CHARGING: 3 years.Additional Service:1.All products will be provided 1% free product or 2% free PCB Board (Exclude Batteries).2.To obtain service under warranty via an valid guarantee offered by dealers.3.To obtain service under warrantee via serial number.4.In case of Inverter fault, please contact our technical department, we can repair and replace new spares parts 5.for buyers6.free, but the transportation charges shall be borne by the buyers within the warranty period.As a user of UPSEN, you have the following service:1.Free repair or replace service during warranty period.2.24-hour helpline; Service helpline: 0086-755- 29610051.3.Nationwide warranty.
Shenzhen UPSEN Electronic Co., Ltd. Which is located in south of China, Shenzhen City, close to Pearl of the Orient HK, with beautiful environment and convenient transport.
We are a private high-tech enterprise integrating researching & development, production & operation and technical services as a whole, which is specialized in Electric, Electronic and Energy fields for a long time. Our main products are UPS Power, Inverter Power, Battery Power, Solar&Wind Power. We are dedicated to offer quality power and power solution for Data-center, Telecom, Bank, Hospital, Transportation, Industry, Army, Security, and civil & office area etc. Moreover, we have mastered the core technology of power products through our independent research, we are one of few domestic enterprises which can meet the customers' customized requirements, and provide professional power solutions.
We already past ISO9001 international quality system certification, and established a complete quality system ranging from material source, process, assembling to testing. All our products are with CE Certificate, which exported to more than 30 countries and areas, like Australia, Europe, Africa, North America, South America, the Middle East, central Asia, southeast Asia etc.
We will always offer excellent quality and products to customers. Hope to make Integrity and Double-Win business with you, and to be your professional power supplier and solve your any power problems. We are sure UPSEN can achieve more successes with our efforts and your support.
