Hybrid Stepper Motor 57HS76 with Brake in China Factory
| Price: |
US $ 1-200/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
HSB |
| Brake Model: |
35, 50, 56 |
| Input Voltage: |
24V |
| Power: |
5.8W, 4.8W, 9.3W |
| Diameter: |
40mm,50mm, 61mm |
| Brake Length: |
26mm,31.5mm, 37.5mm |
| Brake Torque: |
0.35n.M, 1.5n.M, 3.9n.M |
| Number Of Stator: |
Two-Phase |
| Excitation Mode: |
HB-Hybrid |
| Type: |
Magnetic-Electric |
| Operate Mode: |
2 Phase |
| Certification: |
Ce |
| Brand: |
Jss |
Product Description

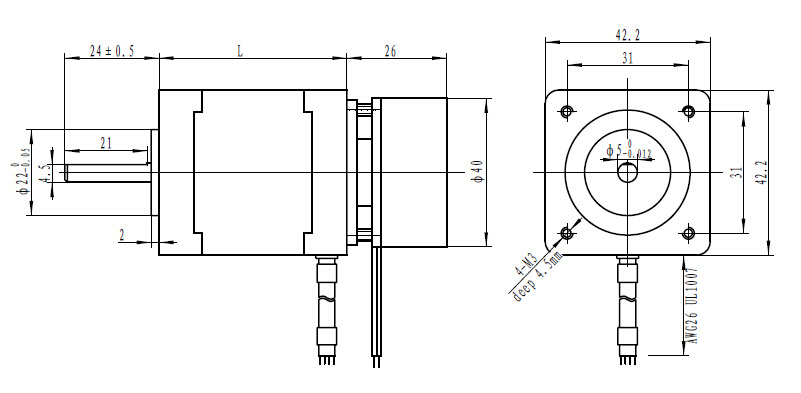

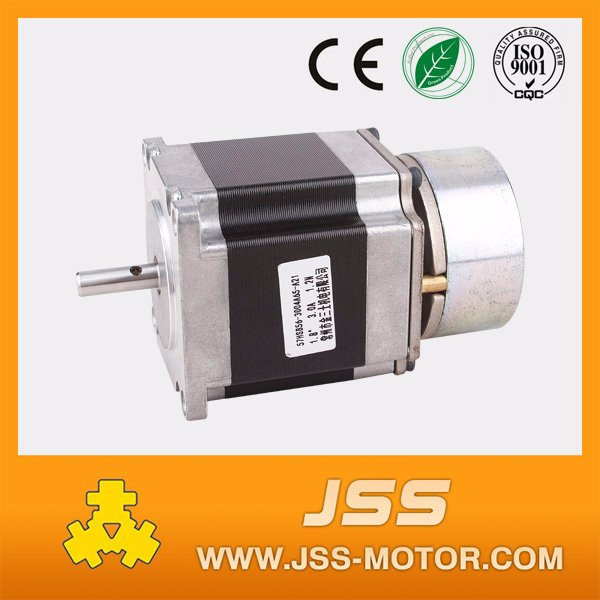

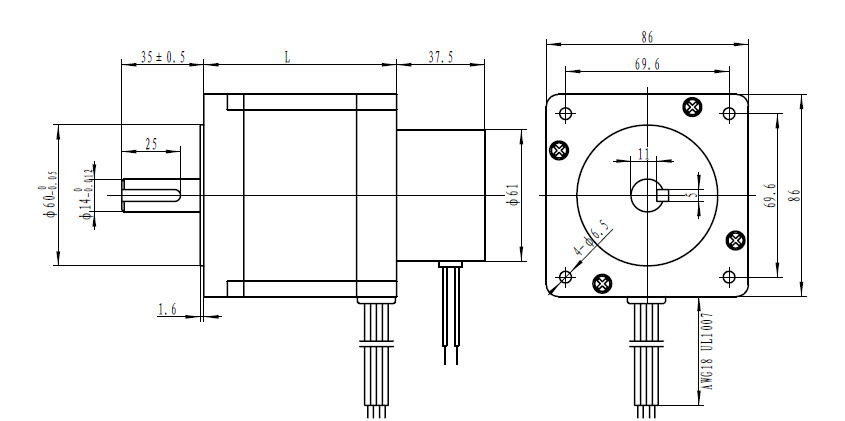

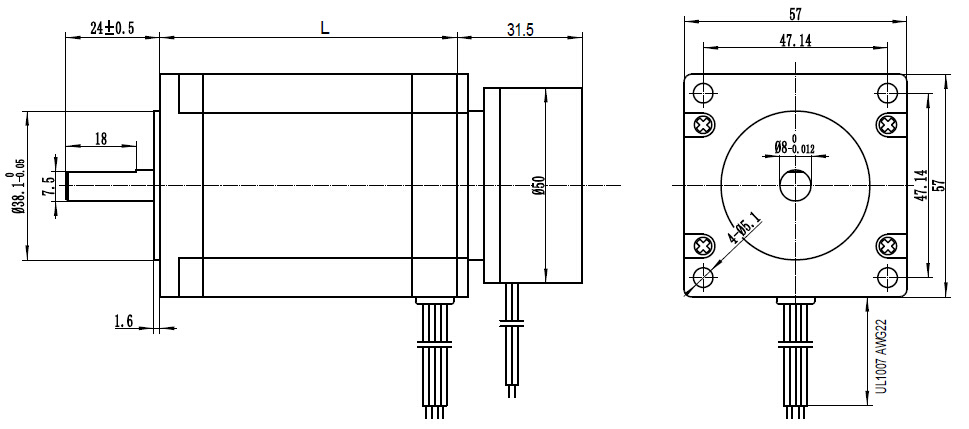

HSB Stepper Motor with Brake
Brake Specification:| Brake Model | Input Voltage | Power | Diameter | Brake Length | Brake Torque | Applicable Motor | Weight |
| 35 | 24V | 5.8W | 40mm | 26mm | 0.35N.m | 42HSB | 0.15KG |
| 50 | 24V | 4.8W | 50mm | 31.5mm | 1.5N.m | 57HSB | 0.33KG |
| 56 | 24V | 9.3W | 61mm | 37.5mm | 3.9N.m | 86HSB | 0.506KG |
Motor Electrical Specification:
Nema17| Model No. | Step Angle
(°) | Voltage /Phase (V) | Current /Phase (A) | Resistance /Phase
(Ω) | Inductance Phase (mH) | Holding Torque (kg.cm) | Detent Torque (g.cm.Max) | Rotor Inertia (g.cm²) | Motor Length (mm) | Lead Wires No. | Motor Weight (kg) |
| 42HS29-0804 | 1.8 | 2.3 | 0.8 | 2.9 | 3 | 1.8 | 180 | 25 | 29 | 4 | 0.16 |
| 42HS34-0404 | 1.8 | 12.0 | 0.4 | 30 | 35 | 3.2 | 200 | 34 | 34 | 4 | 0.22 |
| 42HS34-0844 | 1.8 | 4.8 | 0.84 | 5.75 | 8 | 2.8 | 200 | 34 | 34 | 4 | 0.22 |
| 42HS34-1704 | 1.8 | 2.2 | 1.7 | 1.3 | 1.8 | 2.8 | 200 | 34 | 34 | 4 | 0.22 |
| 42HS40-0404 | 1.8 | 12.0 | 0.4 | 30 | 60 | 4.2 | 220 | 54 | 40 | 4 | 0.28 |
| 42HS40-0804 | 1.8 | 5.4 | 0.8 | 6.8 | 12 | 4.5 | 220 | 54 | 40 | 4 | 0.28 |
| 42HS40-1204 | 1.8 | 6.6 | 1.2 | 5.5 | 11 | 5.2 | 220 | 54 | 40 | 4 | 0.28 |
| 42HS40-1704 | 1.8 | 3.4 | 1.7 | 2 | 3 | 4 | 220 | 54 | 40 | 4 | 0.28 |
| 42HS40-1206 | 1.8 | 4.0 | 1.2 | 3.3 | 3.5 | 2.97 | 220 | 54 | 40 | 6 | 0.28 |
| 42HS48-0404 | 1.8 | 12.0 | 0.4 | 30 | 45 | 4.5 | 280 | 68 | 48 | 4 | 0.38 |
| 42HS48-1004 | 1.8 | 4.5 | 1 | 4.5 | 10 | 5 | 280 | 68 | 48 | 4 | 0.38 |
| 42HS48-1304 | 1.8 | 4.6 | 1.3 | 3.5 | 6.6 | 5.5 | 280 | 68 | 48 | 4 | 0.38 |
| 42HS48-1504 | 1.8 | 4.2 | 1.5 | 2.8 | 5.5 | 5.5 | 280 | 68 | 48 | 4 | 0.38 |
| 42HS48-1684 | 1.8 | 3.4 | 1.68 | 2 | 3.8 | 5.2 | 280 | 68 | 48 | 4 | 0.38 |
| 42HS48-0406 | 1.8 | 12.0 | 0.4 | 30 | 28 | 3.2 | 280 | 68 | 48 | 6 | 0.38 |
| 42HS52-1504 | 1.8 | 4.5 | 1.5 | 3 | 7 | 6.8 | 300 | 95 | 52 | 4 | 0.45 |
| 42HS60-1504 | 1.8 | 3.8 | 1.5 | 2.5 | 6 | 7 | 360 | 95 | 60 | 4 | 0.55 |
Nema23| Model No. | Step Angle
(°) | Voltage /Phase (V) | Current /Phase (A) | Resistance /Phase
(Ω) | Inductance Phase (mH) | Holding Torque (kg.cm) | Detent Torque (g.cm.Max) | Rotor Inertia (g.cm²) | Motor Length (mm) | Lead Wires No. | Motor Weight (kg) |
| 57HS41-2004 | 1.8 | 2 | 2 | 1 | 1.2 | 3.2 | 210 | 120 | 41 | 4 | 0.45 |
| 57HS41-1004 | 1.8 | 5.4 | 1 | 5.4 | 9.5 | 5.5 | 210 | 120 | 41 | 4 | 0.45 |
| 57HS41-2004 | 1.8 | 2 | 2 | 1 | 2.2 | 5 | 210 | 120 | 41 | 4 | 0.45 |
| 57HS51-1504 | 1.8 | 2.4 | 1.5 | 1.6 | 3.8 | 8.2 | 360 | 275 | 51 | 4 | 0.65 |
| 57HS51-2004 | 1.8 | 2.4 | 2 | 1.2 | 3 | 9 | 360 | 275 | 51 | 4 | 0.65 |
| 57HS51-2006 | 1.8 | 2 | 2 | 1 | 1.6 | 7 | 360 | 275 | 51 | 6 | 0.65 |
| 57HS56-1504 | 1.8 | 5.7 | 1.5 | 3.8 | 12 | 13.5 | 400 | 300 | 56 | 4 | 0.7 |
| 57HS56-3004 | 1.8 | 2.85 | 3 | 0.95 | 2.8 | 12 | 400 | 300 | 56 | 4 | 0.7 |
| 57HS56-2006 | 1.8 | 3.6 | 2 | 1.8 | 2.8 | 9 | 400 | 300 | 56 | 6 | 0.7 |
| 57HS64-3004 | 1.8 | 3.9 | 3 | 1.3 | 2.2 | 15 | 500 | 380 | 64 | 4 | 0.8 |
| 57HS76-2004 | 1.8 | 8.6 | 2 | 4.3 | 16.2 | 24 | 680 | 480 | 76 | 4 | 1 |
| 57HS76-3004 | 1.8 | 2.7 | 3 | 0.9 | 3.5 | 20 | 680 | 480 | 76 | 4 | 1 |
| 57HS76-4004 | 1.8 | 2.4 | 4 | 0.6 | 2.2 | 20 | 680 | 480 | 76 | 4 | 1 |
| 57HS82-3004 | 1.8 | 4.2 | 3 | 1.4 | 5 | 22 | 700 | 510 | 82 | 4 | 1.2 |
| 57HS82-4004 | 1.8 | 3 | 4 | 0.75 | 3.5 | 20 | 700 | 510 | 82 | 4 | 1.2 |
| 57HS100-3004 | 1.8 | 3 | 3 | 1 | 4.5 | 25 | 1000 | 680 | 100 | 4 | 1.4 |
| 57HS112-3004 | 1.8 | 3.9 | 3 | 1.3 | 6.5 | 30 | 1200 | 800 | 112 | 4 | 1.7 |
| 57HS112-3504 | 1.8 | 2.45 | 3.5 | 0.7 | 3 | 28 | 1200 | 800 | 112 | 4 | 1.7 |
Nema34 | Model No. | Step Angle
(°) | Voltage /Phase (V) | Current /Phase (A) | Resistance /Phase
(Ω) | Inductance Phase (mH) | Holding Torque (kg.cm) | Detent Torque (g.cm.Max) | Rotor Inertia (g.cm²) | Motor Length (mm) | Lead Wires No. | Motor Weight (kg) |
| 86HS65-3004 | 1.8 | 3.3 | 3 | 1.1 | 6.5 | 28 | 800 | 1000 | 65 | 4 | 1.7 |
| 86HS68-4004 | 1.8 | 1.3 | 4 | 0.33 | 1.6 | 35 | 1000 | 1200 | 68 | 4 | 1.7 |
| 86HS78-4004 | 1.8 | 1.5 | 4 | 0.38 | 2.5 | 35 | 1200 | 1400 | 78 | 4 | 2.3 |
| 87HS78-4204 | 1.8 | 1.9 | 4.2 | 0.45 | 4 | 45 | 1200 | 1400 | 78 | 4 | 2.3 |
| 87HS78-6008 | 1.8 | 3.0 | 6 | 0.5 | 4 | 45 | 1200 | 1400 | 78 | 8 | 2.3 |
| 87HS82-4504 | 1.8 | 1.4 | 4.5 | 0.32 | 2.8 | 45 | 1300 | 1500 | 82 | 4 | 2.5 |
| 86HS82-5608 | 1.8 | 2.0 | 5.6 | 0.35 | 3 | 50 | 1300 | 1500 | 82 | 8 | 2.5 |
| 86HS100-5004 | 1.8 | 2.5 | 5 | 0.5 | 4 | 68 | 2000 | 2100 | 100 | 4 | 3.2 |
| 86HS100-5008 | 1.8 | 2.5 | 5 | 0.5 | 4 | 65 | 2000 | 2100 | 100 | 8 | 3.2 |
| 86HS118-6004 | 1.8 | 3.6 | 6 | 0.6 | 6 | 85 | 2400 | 2700 | 118 | 4 | 3.7 |
| 86HS118-5608 | 1.8 | 3.4 | 5.6 | 0.6 | 6 | 85 | 2400 | 2700 | 156 | 8 | 3.7 |
| 86HS156-5504 | 1.8 | 3.9 | 5.5 | 0.7 | 9 | 120 | 3600 | 4000 | 156 | 4 | 5.5 |
| 86HS156-6204 | 1.8 | 3.6 | 6.2 | 0.75 | 9 | 122 | 3600 | 4000 | 156 | 8 | 5.5 |
