Hydraulic Pressure Force Transducer (QH-61B)

Name: Hydraulic Pressure Force Transducer (QH-61B)
Brand: all-electronics-online.com
SKU: 774418295
Availability: InStock
Rating: 4.6 (134 reviews)

Price:	US $ 65/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	QH-61B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Pancake Load Cell
Capacity:	0.1t to 30t.
Safe Overload:	Fs% 120
Ultimate Overload:	Fs% 150
Pattern:	Pancake Load Cell

Product Description

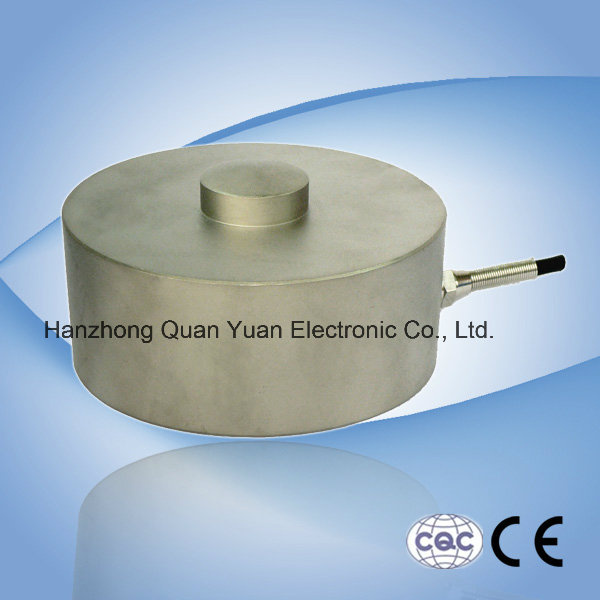

Hydraulic Pressure Force Transducer (QH-61B)

Product Discription:

QH-61B load cells are available in the capacities from 0.1t to 30t

Alloy.steel construction with spoke type. Tension and/or compression loading.

Silicon adhesive sealed, waterproof, anti-corrosion and suitable for all kinds of environment.

Integral structure and easy installation.

Suitable for electronic truck scale,track scale,hopper scales and other electronic weighing devices.

Features:

Capacity: 0.1t to 30t

IP Rating: IP66 ~ IP68

High accuracy.

Alloy steel, Integral installation

Easy installation. reliable performance.

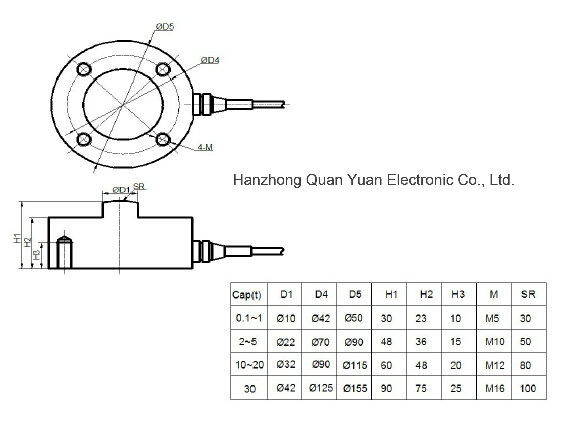

Electrical connection and Dimensions:

Technical Specifications:

Specifications:
capacity	t	0.1,0.2,0.5,1,2,3,5,10,20,30

safe overload	%FS	120
ultimate overload	%FS	150
rated output	mV/V	2.0 ± 0.2
excitation voltage	Vdc	9 ~ 12
combined error	%FS	± 0.02
zero unbalance	%FS	± 2
non-linearity	%FS	± 0.02
hysteresis	%FS	± 0.02
repeatability	%FS	± 0.01
creep	%FS/30min	± 0.02
input resistance	Ω	700 ± 10
output resistance	Ω	700 ± 5
insulation resistance	M Ω	≥ 5000 @ 50 Vdc
operating temperature range	ºC	-35 ~ +65
compensated temperature range	ºC	-10 ~ +40
temperature coefficient of SPAN	%FS/10ºC	± 0.02
temperature coefficient of ZERO	%FS/10ºC	± 0.03

Electrical connection:

Excitation+ red Excitation- black Signal+ green Signal- white

Four-core shielded cable with polyethylene. Cable is not connected with elastomer.

Cable length:3 m

Cable diameter :5 ±0.2 mm

The cable length could be chose by customer's application.
