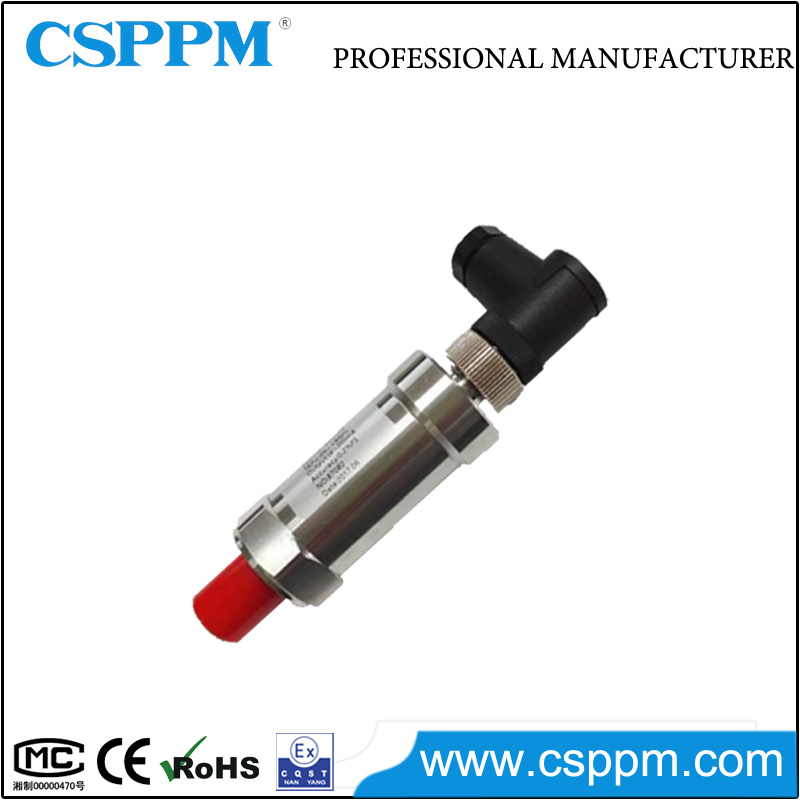

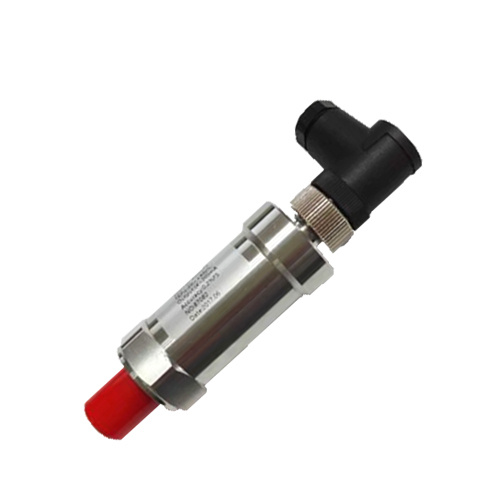

Hydraulic Pressure Transmitter Ppm-T126

Name: Hydraulic Pressure Transmitter Ppm-T126
Brand: all-electronics-online.com
SKU: 827941125
Availability: InStock
Rating: 4.5 (34 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	PPM-T126
Pressure Range:	0~60MPa
Certification:	CMC

Product Description

Description
The model PPM-T126 Pressure Transmitter for General Industrial Application offers excellent quality at an extremely competitive price. The various pressure ranges, pressure connection and output signal required for particular operating conditions are available.

Features
1. Measuring ranges from 0~1kPa to 0~60MPa.
2. Accuracy: 0.2%FS.
3. Output signal: 4~20mA, 0~10V, 0~5V, 1~5V, 0.5~4.5V.
4. Process connection: M20×1.5, G1/4, 1/4 NPT

Applications
Machine building, Ship building, Measurement and control technology, Hydraulics and pneumatics, Pumps and compressors, urban water supply.

Specification

Measuring medium	Gas, liquid
Pressure type	Absolute pressure(A),Sealed pressure(S),Gauge pressure(G)
Measuring range	0~1kPa,2kPa,5kPa,10kPa,20kPa,30kPa,40kPa,50kPa,100kPa, 150kPa,200kPa,300kPa,400kPa,500kPa,700kPa,1MPa,1.5MPa,2MPa, 3MPa,5MPa,6MPa,7MPa,10MPa,15MPa,20MPa,30MPa,40MPa ,50MPa,60MPa
Power supply	12~36VDC
Output signal	4~20mA,0~5VDC,1~5VDC,0~10VDC,0.5~4.5VDC
Accuracy	0.2%FS,0.5%FS;1.0%FS
Temperature drift	≤±0.015%FS/ºC
Long-term stability	≤±0.2%FS/year
Ambient temperature	-30ºC~+85ºC
Medium temperature	-40ºC~+125ºC
Storage temperature	-40ºC~+105ºC
Ingress protection	IP65
Process connection	M20×1.5,M14×1.5,M12×1,G1/4,G1/2,1/4NPT or other on request
Over pressure	150%FS
Damage pressure	300%FS
Vibration resistance	5~1000Hz
Shock resistance	50g
Material	Stainless Steel 1Cr18Ni9Ti Stainless Steel 316

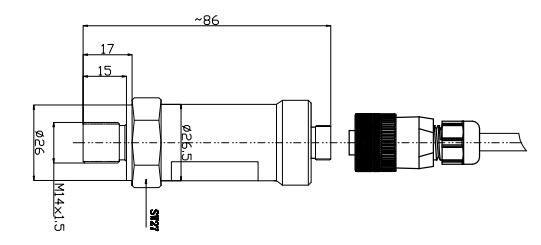

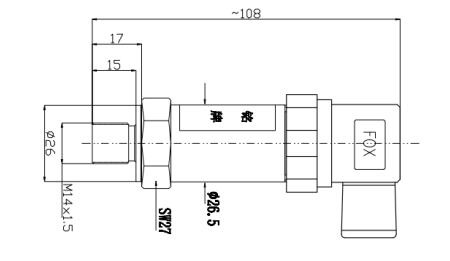

Dimensions in mm
PPM-T126A

PPM-T126B

Wiring diagram
