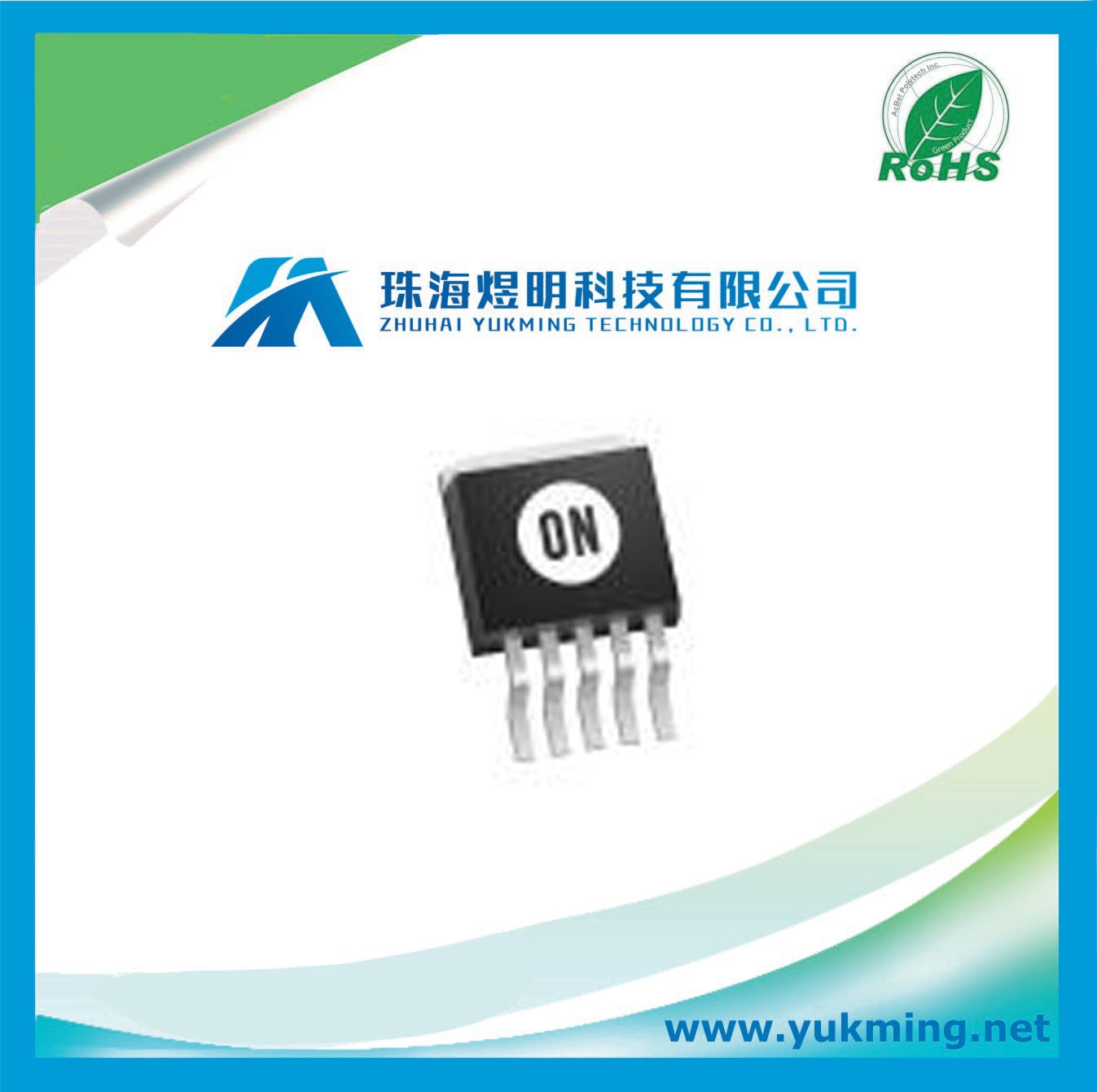

IC Integrated Circuit Ncp5662dsadjr4g of Linear Regulator

IC Integrated Circuit Ncp5662dsadjr4g of Linear Regulator
Price: US $ 0.86/Piece
Min Order: 1000/Piece
Pay Type: L/C,T/T,D/P,Paypal
Prod Model: NCP5662DSADJR4G
Category: Ldo
Number Of Outputs: 1
Output Voltage (V): 0.9(Min)
Maximum Output Current (a): 2
Minimum Input Voltage (V): 2
Maximum Input Voltage (V): 9
Polarity: Positive

Product Description

Lead time2 to 3 days after receiving the payment.
Remark100% New and original ; 30 days warranty
Payment  Heng Seng Bank (Hong Kong), Paypal,
ShipmentDHL ,TNT ,FEDEX, UPS or any other express

MANUFACTURER
ON Semiconductor

PRODUCT CATEGORY
Linear Regulator

DESCRIPTION
LDO Regulator Pos 0.9V 2A 6-Pin(5+Tab) D2PAK T/R

Stable voltages are always needed for sensitive systems implement this LDO NCP5662DSADJR4G linear regulator from ON Semiconductor. Its typical dropout voltage at current is 1@2A V. It has an overall accuracy of ±1 %. This voltage regulation device's single output can produce a current up to 2 A. Using the part will provide the power your application needs by requiring a voltage only of 2 V and not exceeding a voltage of 9 V. With an adjustable output that has a voltage of 0.9(Min) V, this is power management at its best. Your circuit has the capability to produce a constant current at its output by using a load regulation of 0.03%(Typ) and line regulation of 0.03%(Typ). Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. Its polarity is positive. The maximum dropout voltage is 1.3@2A V. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 85 °C.

Specifications
EU RoHS Compliant
Type LDO
Number of Outputs 1
Output Type Adjustable
Output Voltage (V) 0.9(Min)
Polarity Positive
Maximum Output Current (A) 2
Minimum Input Voltage (V) 2
Maximum Input Voltage (V) 9
Typical Dropout Voltage @ Current (V) 1@2A
Maximum Dropout Voltage @ Current (V) 1.3@2A
Accuracy (%) ±1
Line Regulation 0.03%(Typ)
Load Regulation 0.03%(Typ)
Special Features Current Limit|Thermal Shutdown Protection
Minimum Operating Temperature (°C) -40
Maximum Operating Temperature (°C) 85
Packaging Tape and Reel
Mounting Surface Mount

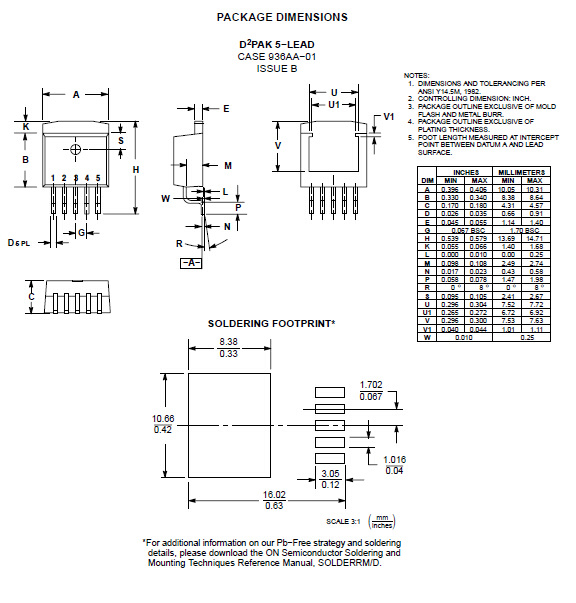

Package Height (mm) 4.57(Max)
Package Length (mm) 10.24(Max)
Package Width (mm) 9.35(Max)
PCB changed 5
Tab Tab
Standard Package Name TO-263
Supplier Package D2PAK
Pin Count 6
Lead Shape Gull-wing

Features
• Ultra−Fast Transient Response (Settling Time: 1−3 s)
• Low Noise Without Bypass Capacitor (26 Vrms)
• Low Ground Current Independent of Load (3.0 mA Maximum)
• Fixed/Adjustable Output Voltage Versions
• Enable Function
• Error Flag (Fixed Output Version)
• Current Limit Protection
• Thermal Protection
• 0.9 V Reference Voltage for Ultra−Low Output Operation
• Power Supply Rejection Ratio > 65 dB
• NCV Prefix for Automotive and Other Applications Requiring Site
and Control Changes
• These are Pb−Free Devices

Applications
• Servers
• ASIC Power Supplies
• Post Regulation for Power Supplies
• Constant Current Source
• Networking Equipment
• Gaming and STB Modules
