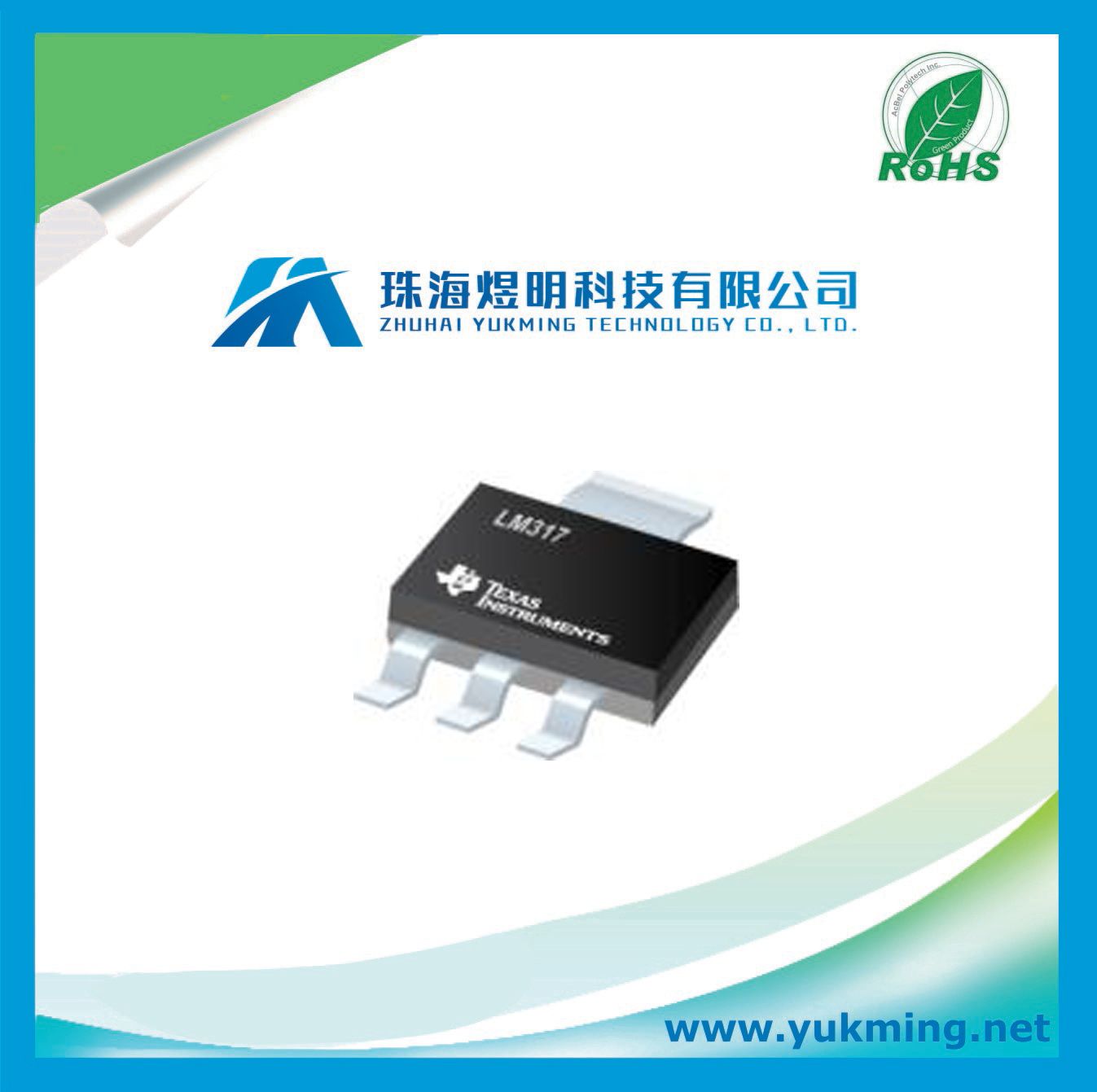

IC Integrated Circuit of 3-Terminal Adjustable Regulator Lm317

Name: IC Integrated Circuit of 3-Terminal Adjustable Regulator Lm317
Brand: all-electronics-online.com
SKU: 802117725
Availability: InStock
Rating: 4.3 (27 reviews)

Price:	US $ 0.267/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LM317

Product Description

3-Terminal Adjustable Regulator

Description
The LM317 device is an adjustable three-terminal positive-voltage regulator capable of supplying more than 1.5 A over an output-voltage range of 1.25 V to 37 V. It requires only two external resistors to set the output voltage. The device features a typical line regulation of 0.01% and typical load regulation of 0.1%. It includes current limiting, thermal overload protection, and safe operating area protection. Overload protection remains functional even if the ADJUST terminal is disconnected.

Features
Output Voltage Range Adjustable From 1.25 V to 37 V
Output Current Greater Than 1.5 A
Internal Short-Circuit Current Limiting
Thermal Overload Protection
Output Safe-Area Compensation

Applications
• ATCA Solutions
• DLP: 3D Biometrics, Hyperspectral Imaging,
Optical Networking, and Spectroscopy
• DVR and DVS
• Desktop PC
• Digital Signage and Still Camera
• ECG Electrocardiogram
• EV HEV Charger: Level 1, 2, and 3
• Electronic Shelf Label
• Energy Harvesting
• Ethernet Switch
• Femto Base Station
• Fingerprint and Iris Biometrics
• HVAC: Heating, Ventilating, and Air Conditioning
• High-Speed Data Acquisition and Generation
• Hydraulic Valve
• IP Phone: Wired and Wireless
• Intelligent Occupancy Sensing
• Motor Control: Brushed DC, Brushless DC, LowVoltage,
Permanent Magnet, and Stepper Motor
• Point-to-Point Microwave Backhaul
• Power Bank Solutions
• Power Line Communication Modem
• Power Over Ethernet (PoE)
• Power Quality Meter
• Power Substation Control
• Private Branch Exchange (PBX)
• Programmable Logic Controller
• RFID Reader
• Refrigerator
• Signal or Waveform Generator
• Software Defined Radio (SDR)
• Washing Machine: High-End and Low-End
• X-ray: Baggage Scanner, Medical, and Dental
