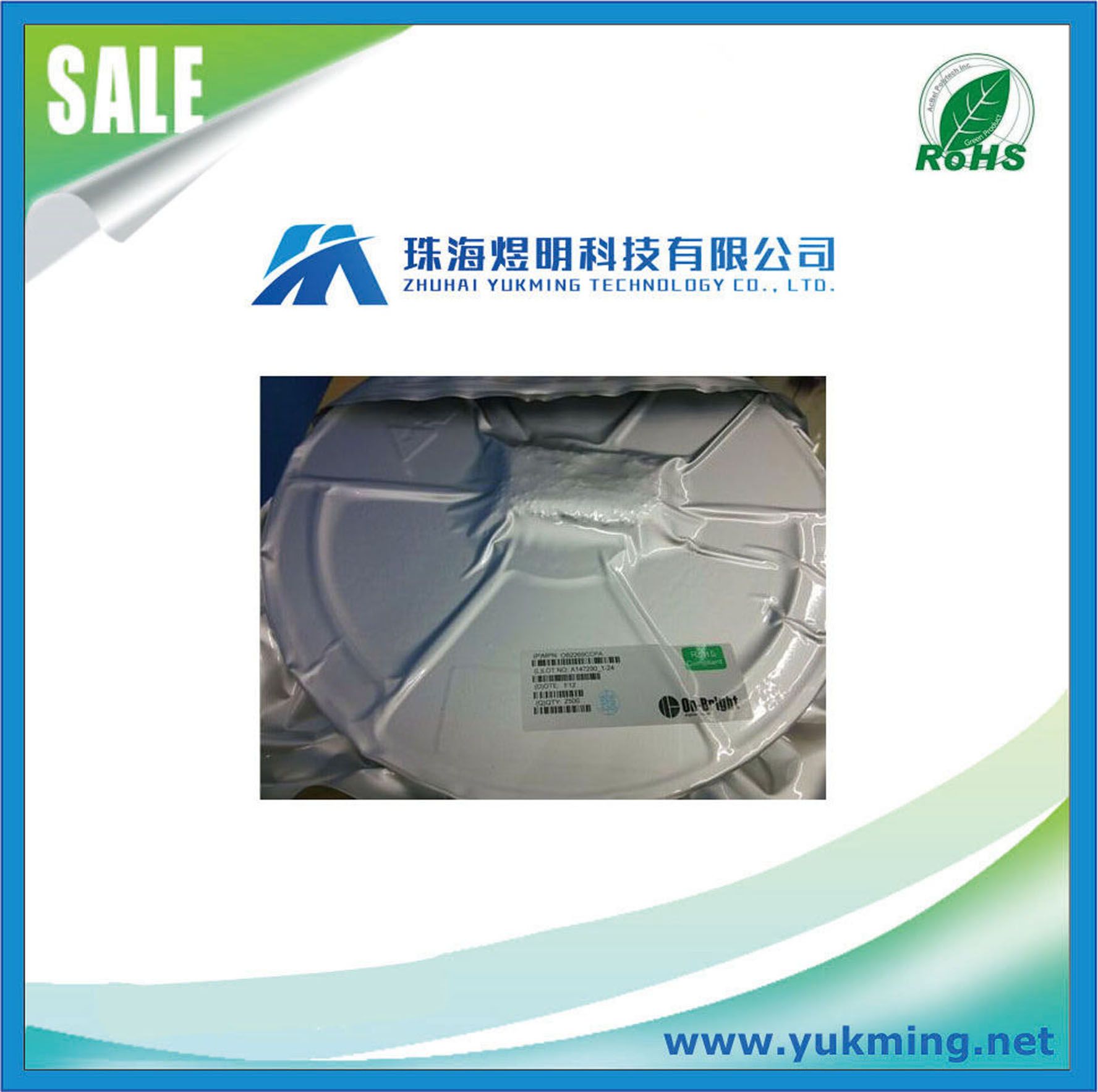

IC Integrated Circuit of Current Mode PWM Controller Ob2269ccpa

Prod Model:	OB2269CCPA
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

Lead time	2 to 3 days after receiving the payment.
Remark	100% New and original ; 30 days warranty
Payment	Heng Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express

GENERAL DESCRIPTION OB2269C is a highly integrated current mode PWM control IC optimized for high performance, low standby power and cost effective offline flyback converter applications. PWM switching frequency at normal operation is externally programmable and trimmed to tight range. At no load or light load condition, the IC operates in extended 'burst mode' to minimize switching loss. Lower standby power and higher conversion efficiency is thus achieved. VDD low startup current and low operating current contribute to a reliable power on startup design with OB2269C. A large value resistor could thus be used in the startup circuit to minimize the standby power. The internal slope compensation improves system large signal stability and reduces the possible subharmonic oscillation at high PWM duty cycle output. Leading-edge blanking on current sense input removes the signal glitch due to snubber circuit diode reverse recovery. This greatly helps to reduce the external component count and system cost in application. OB2269C offers complete protection coverage with automatic self-recovery feature including Cycle-byCycle current limiting (OCP), over load protection (OLP), over temperature protection (OTP), VDD over voltage protection (OVP) and under voltage lockout (UVLO). The Gate-drive output is clamped at 18V to protect the power MOSFET. In OB2269C, OCP threshold slope is internally optimized to reach constant output power limit over universal AC input range. Excellent EMI performance is achieved with OnBright proprietary frequency shuffling technique together with soft switching control at the totem pole gate drive output.The tone energy at below 20KHZ is minimized in operation. Consequently, audio noise performance is greatly improved. OB2269C is offered in both SOP-8 and DIP-8 packages.


FEATURES
On-Bright Proprietary Frequency Shuffling
   Technology for Improved EMI Performance
Extended Burst Mode Control For Improved
   Efficiency and Minimum Standby Power Design
Audio Noise Free Operation
External Programmable PWM Switching
  Frequency
Internal Synchronized Slope Compensation
Low VIN/VDD Startup Current(6.5uA) and Low
  Operating Current (2.3mA)
Leading Edge Blanking on Current Sense Input
Complete Protection Coverage With Auto SelfRecovery
o External Programmable Over Temperature
  Protection (OTP)
o With or Without On-chip VDD OVP for
  System OVP
o Under Voltage Lockout with Hysteresis
  (UVLO)
o Gate Output Maximum Voltage Clamp (18V)
o Line Compensated Cycle-by-Cycle Over-
  current Threshold Setting For Constant Output
  Current Limiting Over Universal Input Voltage
  Range (OCP)
o Over Load Protection. (OLP)


APPLICATIONS
Offline AC/DC flyback converter for
Laptop Power Adaptor
PC/TV/Set-Top Box Power Supplies
Open-frame SMPS
Battery Charger
