IC Integrated Circuit of Light Reflection Switch Itr8307

Name: IC Integrated Circuit of Light Reflection Switch Itr8307
Brand: all-electronics-online.com
SKU: 802117685
Availability: InStock
Rating: 4.8 (125 reviews)

Price:	US $ 0.134/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	ITR8307

Product Description

LIGHT REFLECTION SWITCH

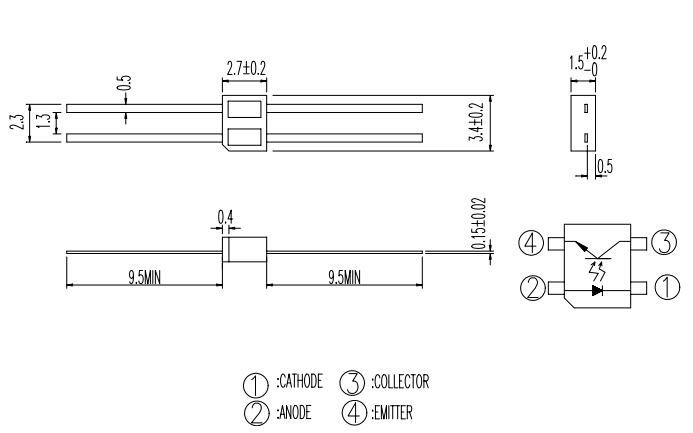

Notes:
1.All dimensions are in millimeters
2.General Tolerance:± 0.15mm
3. Lead spacing is measured where the lead emerge from the package.
4.Above specification may be changed without notice. EVERLIGHT willreserve authority on material change for above specification.
5.These specification sheets include materials protected undercopyright of EVERLIGHT corporation. Please don't reproduce orcause anyone to reproduce them without EVERLIGHT's consent.
6.When using this product , please observe the absolute maximumratings and the instructions for use outlined in thesespecification sheets. EVERLIGHT assumes no responsibilityfor any damage resulting from use of the product which does notcomply with the absolute maximum ratings and the instructionsincluded in these specification sheets.

Description
ITR8307is a light reflection switch which includesa GaAs IRLED transmitter and a NPN photo-transistor with a highphotosensitive receiver for short distance, operating in theinfrared range. Both components are mounted side-by-side in aplastic package.

Features
•Fast response time
•High sensitivity
•Cutting wavelengthλ=840nm
•Thin
•Compact

Applications:
•Camera
•VCR
•Floppy disk driver
•Cassette type recorder
•Various microcomputer control equipment
