IC Integrated Circuit of Low Power Digital Temperature Sensor Tmp102aidrlt

Product Description

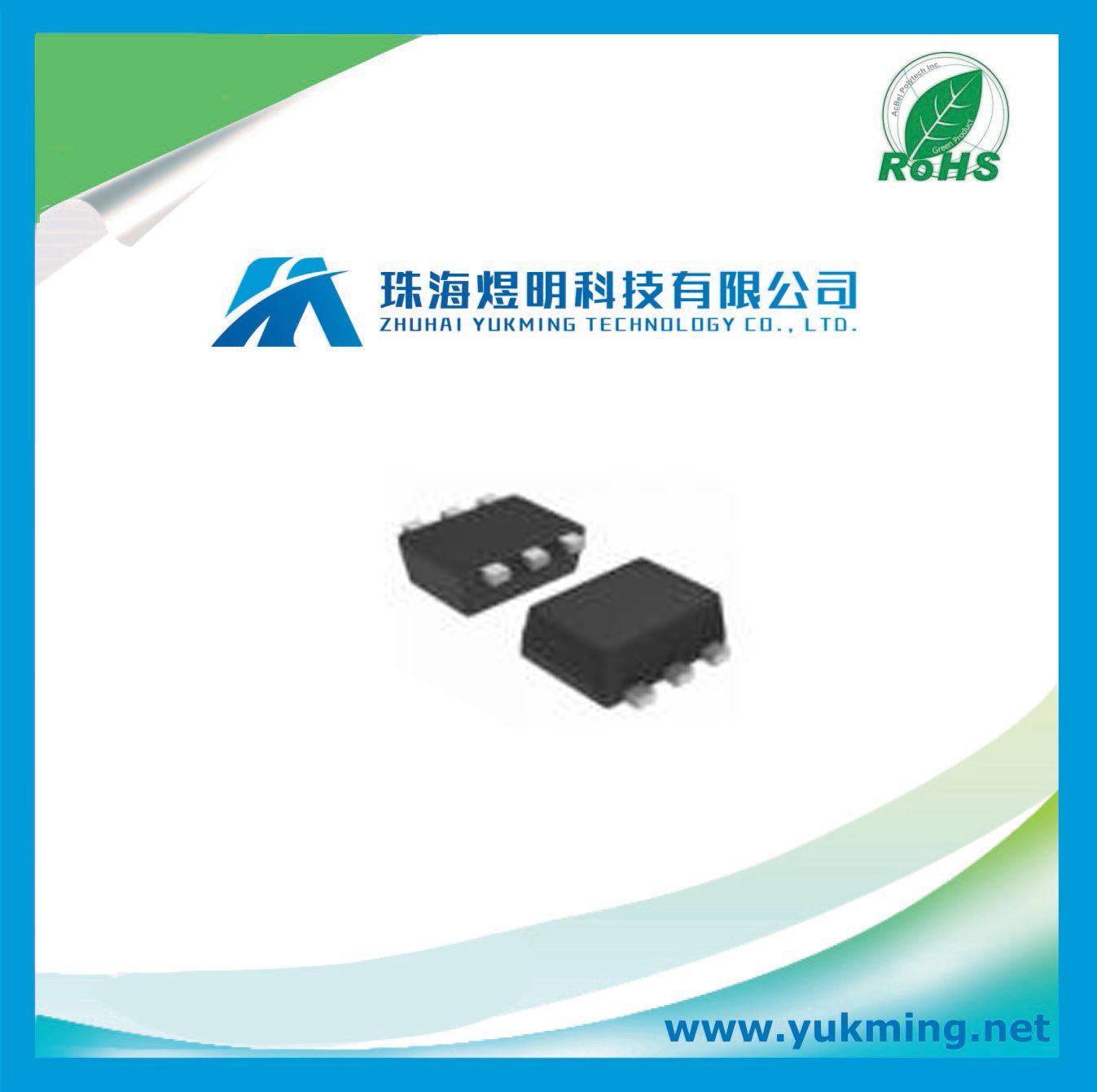

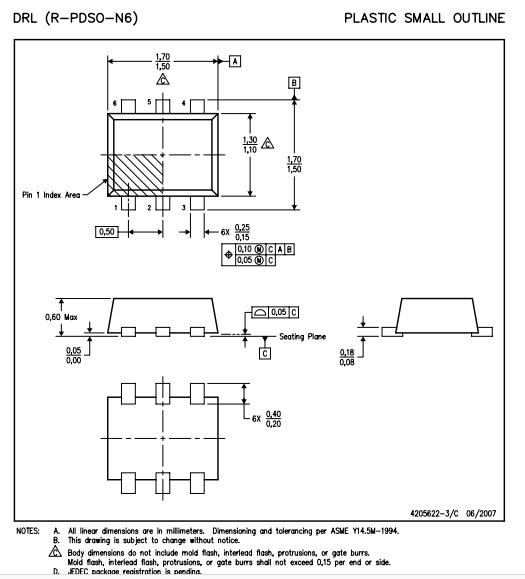

Low Power Digital Temperature Sensor With SMBus/Two-Wire Serial Interface in SOT563

Features
• TINY SOT563 PACKAGE
• ACCURACY: 0.5°C (-25°C to +85°C)
• LOW QUIESCENT CURRENT:
10μA Active (max)
1μA Shutdown (max)
• SUPPLY RANGE: 1.4V to 3.6V
• RESOLUTION: 12 Bits
• DIGITAL OUTPUT: Two-Wire Serial Interface

Applications
• PORTABLE AND BATTERY-POWERED APPLICATIONS
• POWER-SUPPLY TEMPERATURE
MONITORING
• COMPUTER PERIPHERAL THERMAL
PROTECTION
• NOTEBOOK COMPUTERS
• BATTERY MANAGEMENT
• OFFICE MACHINES
• THERMOSTAT CONTROLS
• ELECTROMECHANICAL DEVICE
TEMPERATURES
• GENERAL TEMPERATURE MEASUREMENTS:
Industrial Controls
Test Equipment
Medical Instrumentations

Description
The TMP102 is a two-wire, serial output temperature sensor available in a tiny SOT563 package. Requiring no external components, the TMP102 is capable of reading temperatures to a resolution of 0.0625°C. The TMP102 features SMBus and two-wire interface compatibility, and allows up to four devices on one bus. It also features an SMB alert function. The TMP102 is ideal for extended temperature measurement in a variety of communication, computer, consumer, environmental, industrial, and instrumentation applications. The device is specified for operation over a temperature range of -40°C to +125°C.
