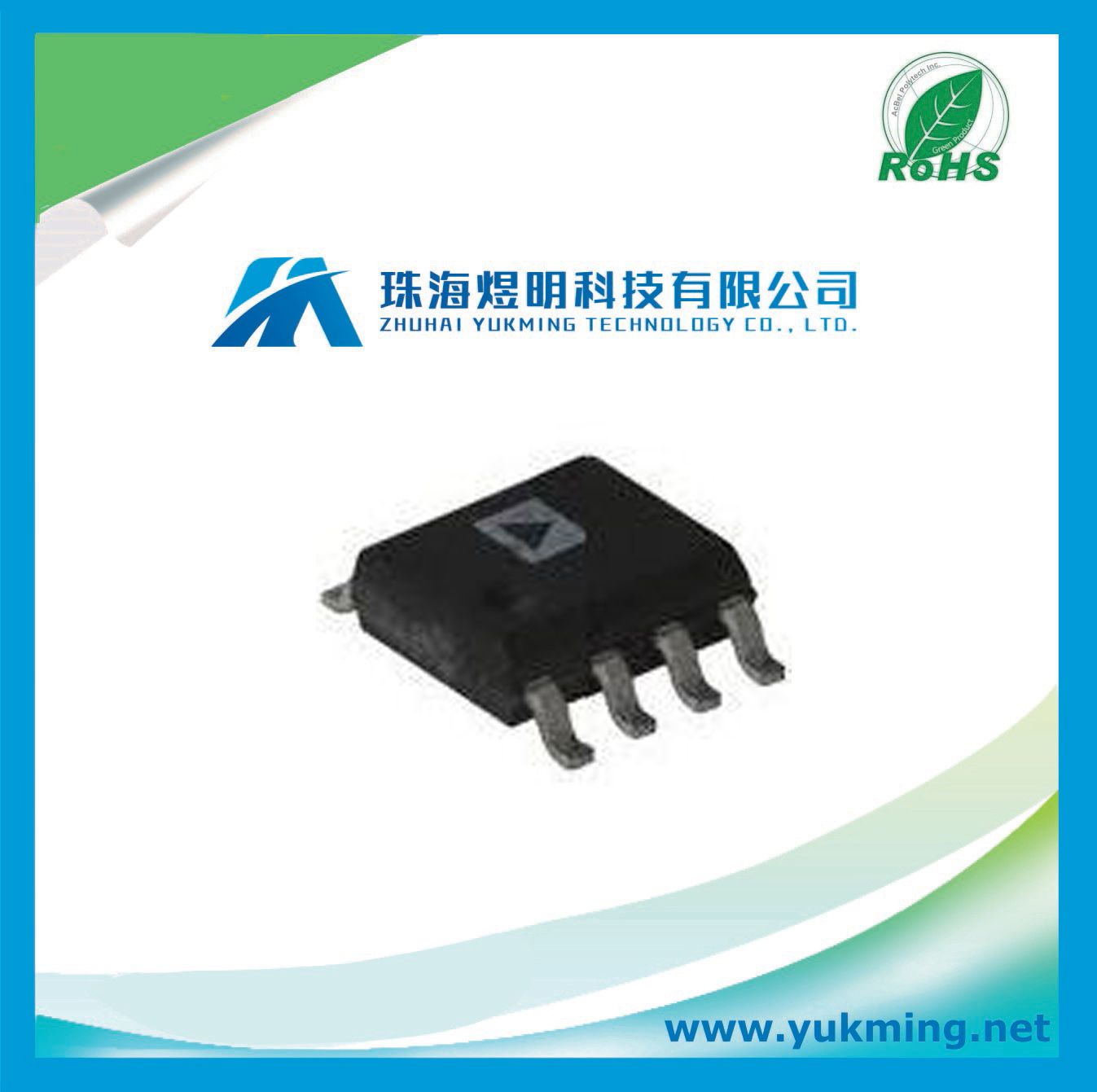

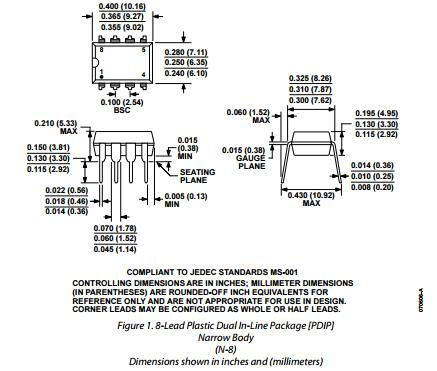

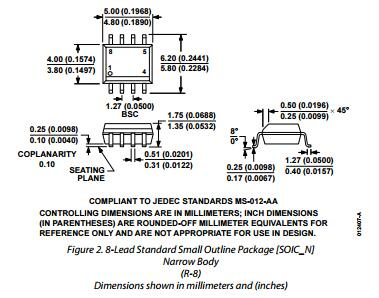

IC Integrated Circuit of Precision Low-Voltage Micropower Operational Amplifier Op90gsz

Product Description

Precision Low-Voltage Micropower Operational Amplifier

FEATURES
Single/Dual Supply Operation: 1.6 V to 36 V,

0.8 V to
18 V
True Single-Supply Operation; Input and Output
Voltage Ranges Include Ground
Low Supply Current: 20 A Max
High Output Drive: 5 mA Min
Low Input Offset Voltage: 150 V Max
High Open-Loop Gain: 700 V/mV Min
Outstanding PSRR: 5.6 V/V Max
Standard 741 Pinout with Nulling to V-

Description
The OP90 is a high performance, micropower op amp that operates from a single supply of 1.6 V to 36 V or from dual supplies of ±0.8 V to ±18 V. The input voltage range includes the negative rail allowing the OP90 to accommodate input signals down to ground in a single-supply operation. The OP90's output swing also includes a ground when operating from a single-supply, enabling "zero-in, zero-out" operation. The OP90 draws less than 20 µA of quiescent supply current, while able to deliver over 5 mA of output current to a load. The input offset voltage is below 150 µV eliminating the need for *ELECTRONICALLY ADJUSTED ON CHIP FOR MINIMUM OFFSET VOLTAGE NULL NULL -IN +IN V+ OUTPUT V- * * Figure 1. Simplied Schematic external nulling. Gain exceeds 700,000 and common-mode rejection is better than 100 dB. The power supply rejection ratio of under 5.6 µV/V minimizes offset voltage changes experienced in battery-powered systems. The low offset voltage and high gain offered by the OP90 bring precision performance to micropower applications. The minimal voltage and current requirements of the OP90 suit it for battery and solar powered applications, such as portable instruments, remote sensors, and satellites.
