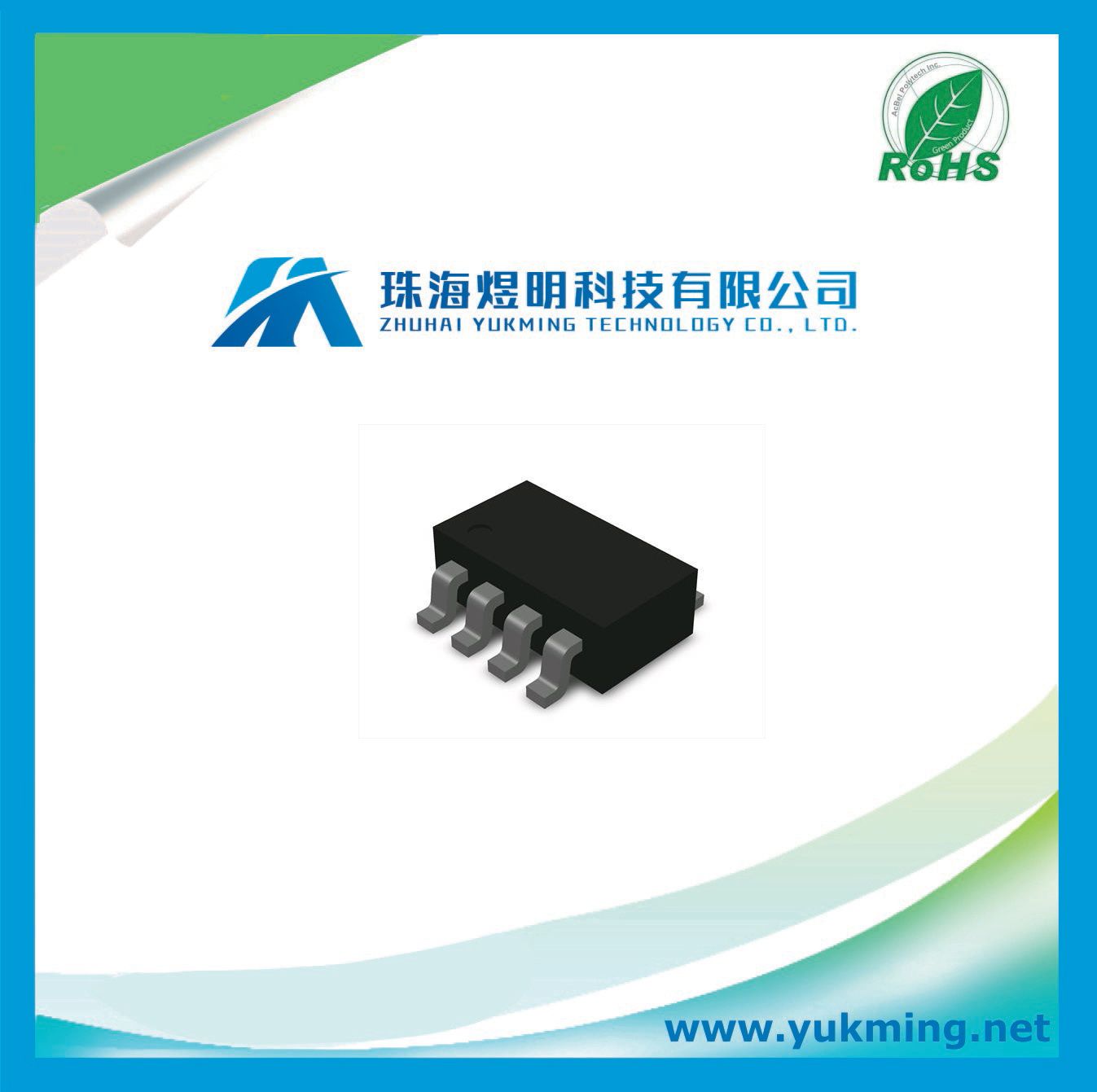

IC Integrated Circuit of Push Button on/off Controller Ltc2950its8-2 Trmpbf

Name: IC Integrated Circuit of Push Button on/off Controller Ltc2950its8-2 Trmpbf
Brand: all-electronics-online.com
SKU: 802117335
Availability: InStock
Rating: 4.4 (146 reviews)

Price:	US $ 3.10/Piece
Min Order:	500/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LTC2950ITS8-2 TRMPBF

Product Description

Push Button On/Off Controller

Features
Adjustable Push Button On/Off Timers
Low Supply Current: 6μA
Wide Operating Voltage Range: 2.7V to 26V
EN Output (LTC2950-1) Allows DC/DC Converter
Control
EN Output (LTC2950-2) Allows Circuit Breaker
Control
Simple Interface Allows Graceful μP Shut Down
High Input Voltage PB Pin with Internal Pull Up
Resistor
±10kV ESD HBM on PB Input
Accurate 0.6V Threshold on KILL Comparator Input

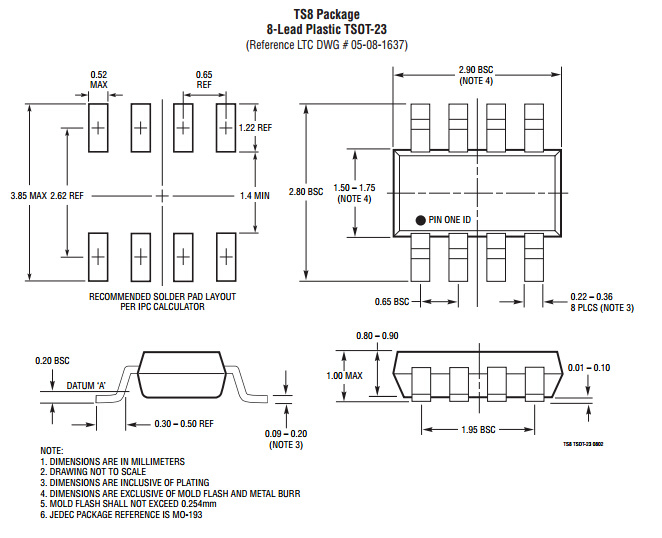

8-Pin 3mm × 2mm DFN and ThinSOTTM Packages

Applications
Portable Instrumentation Meters
Blade Servers
Portable Customer Service PDA
Desktop and Notebook Computers

Description
The LTC®2950 is a micropower, wide input voltage range,
push button ON/OFF controller. The part contains a push
button input with independently programmable ON and OFF
debounce times that control the toggling of an open drain
enable output. The part also contains a simple microprocessor
interface to allow for proper system housekeeping
prior to power down. Under system fault conditions, an
internal KILL timer ensures proper power down.
The LTC2950 operates over a wide 2.7V to 26V input
voltage range to accommodate a wide variety of input
power supplies. Very low quiescent current (6μA typical)
makes the LTC2950 ideally suited for battery powered
Applications.
Two versions of the part are available to accommodate
either positive or negative enable polarities.
The parts are available in either 8-lead 3mm × 2mm DFN
or ThinSOT packages.
