Product Description

Silicon Serial Number with VCC Input

FEATURES
Unique, Factory-Lasered and Tested 64-Bit
Registration Number (8-Bit Family Code
Plus 48-Bit Serial Number Plus 8-Bit CRC
Tester); Guaranteed No Two Parts Alike
Standby Current <1µA
Built-In Multidrop Controller Enables
Multiple DS2411s to Reside on a Common
1-Wire Network
Multidrop Compatible with Other 1-Wire
Products
8-Bit Family Code Identifies Device as
DS2411 to the 1-Wire Master

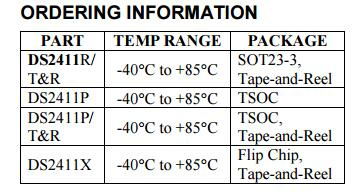

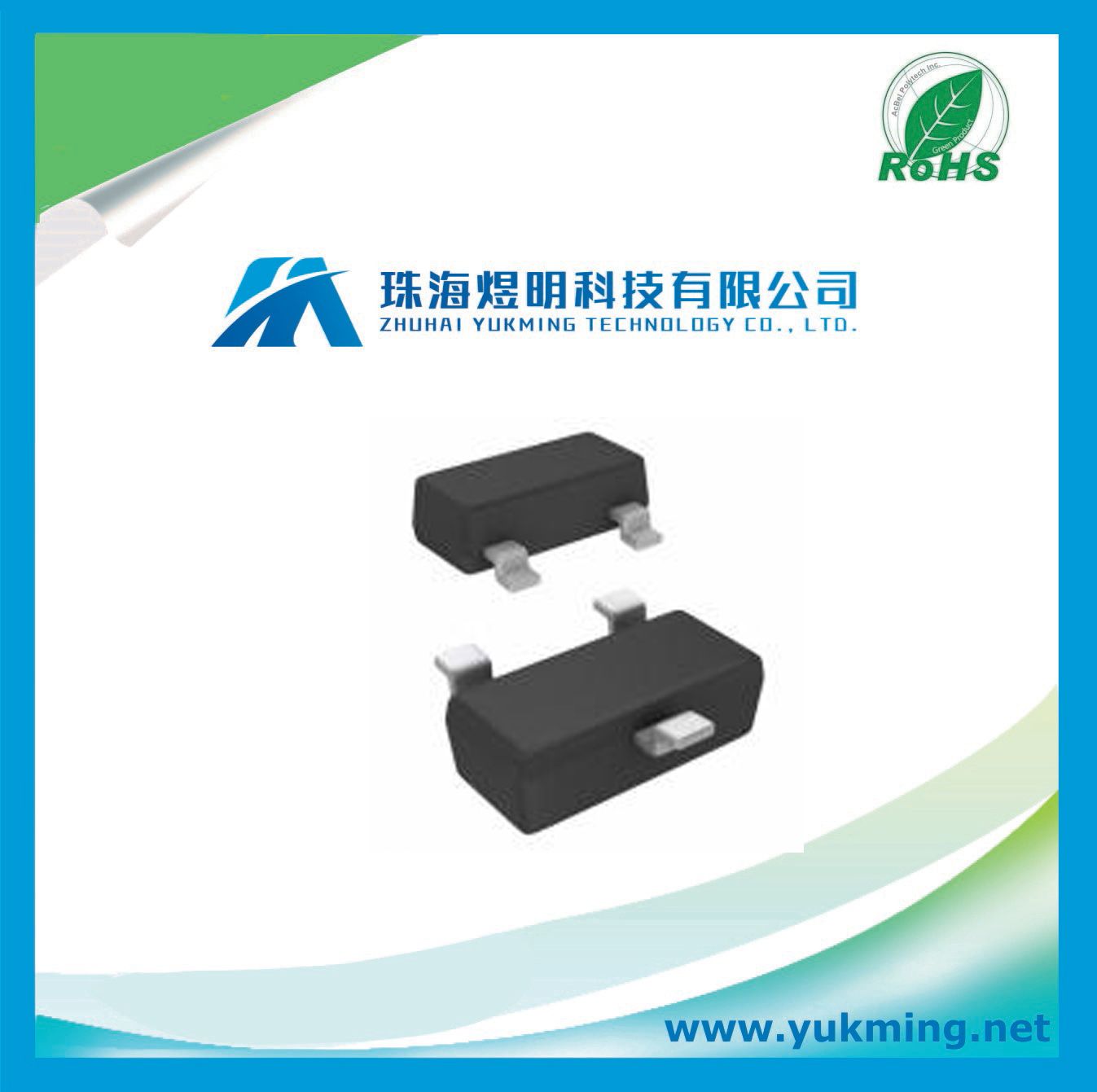

Low-Cost TSOC, SOT23-3, and Flip-Chip
Surface-Mount Packages
Directly Connects to a Single-Port Pin of a
Microprocessor and Communicates at up to
15.4kbps
Overdrive Mode Boosts Communication
Speed to 125kbps
Operating Range: 1.5V to 5.25V, -40°C to
+85°C

DESCRIPTION
The DS2411 silicon serial number is a low-cost, electronic registration number with external power supply. It provides an absolutely unique identity that can be determined with a minimal electronic interface (typically, a single port pin of a microcontroller). The DS2411's registration number is a factory-lasered, 64-bit ROM that includes a unique 48-bit serial number, an 8-bit CRC, and an 8-bit family code (01h). Data is transferred serially through the Dallas Semiconductor's 1-Wire protocol. The external power supply is required, extending the operating voltage range of the device below typical 1-Wire devices.

ABSOLUTE MAXIMUM RATINGS*
I/O Voltage to GND -0.5V to +6V
VCC Voltage to GND -0.5V to +6V
I/O, VCC Current ±20mA
Operating Temperature Range -40°C to +85°C
Junction Temperature +150°C
Storage Temperature Range -55°C to +125°C
Soldering Temperature See IPC/JEDEC J-STD-
020A Specification
