IC Integrated Circuit of System Supervisory Voltage Reset Cat823rtdi-Gt3

Product Description

System Supervisory Voltage Reset with Watchdog and Manual Reset

FEATURES
Automatically restarts microprocessor after
Power failure
Monitors pushbutton for external override
Accurate under voltage system monitoring
Brownout detection system reset for use with
3.0, 3.3, and 5.0 volt systems
Pin and function compatible with the
MAX823/24/25 products
Operating Range from -40°C to +85°C

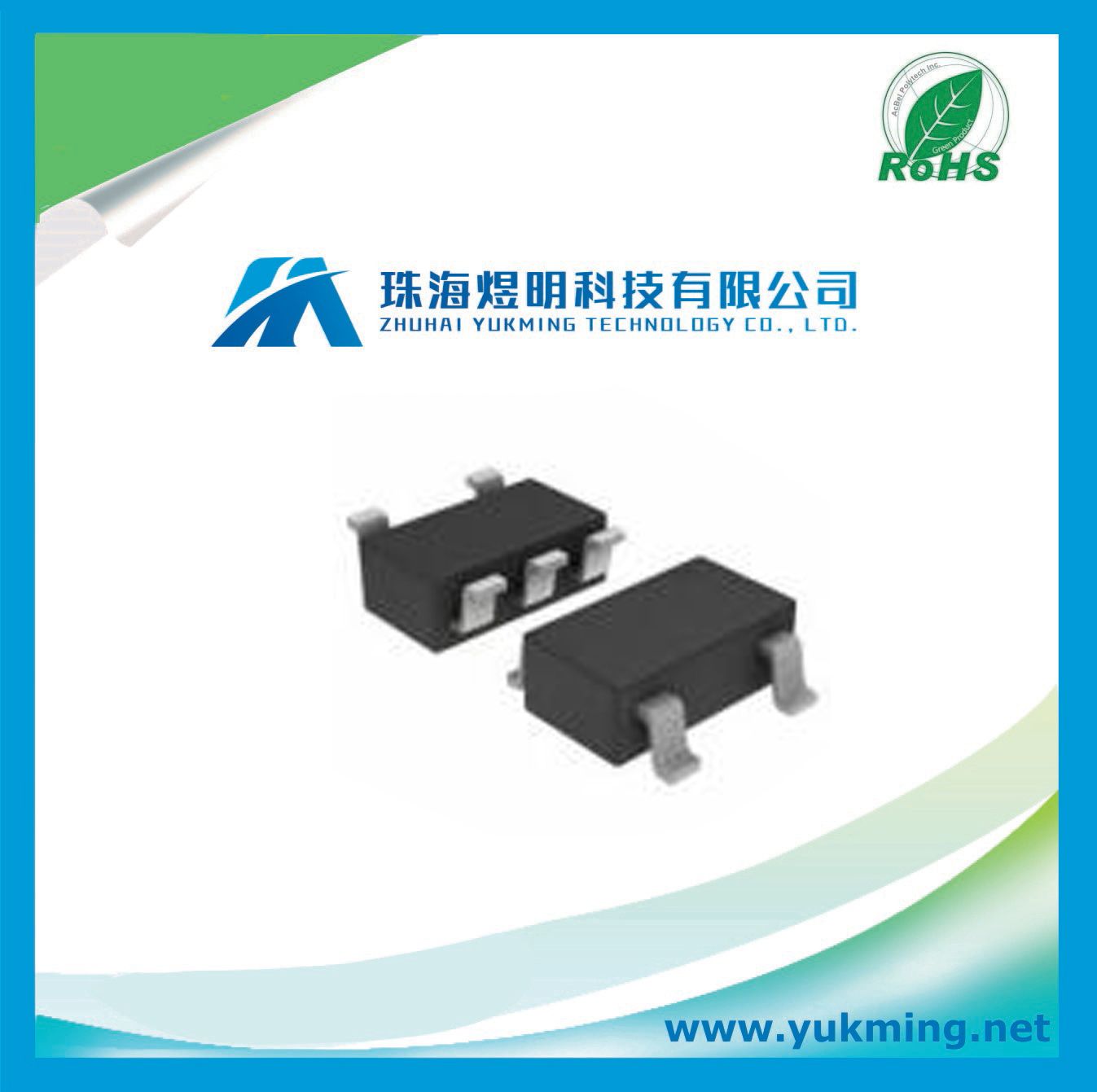

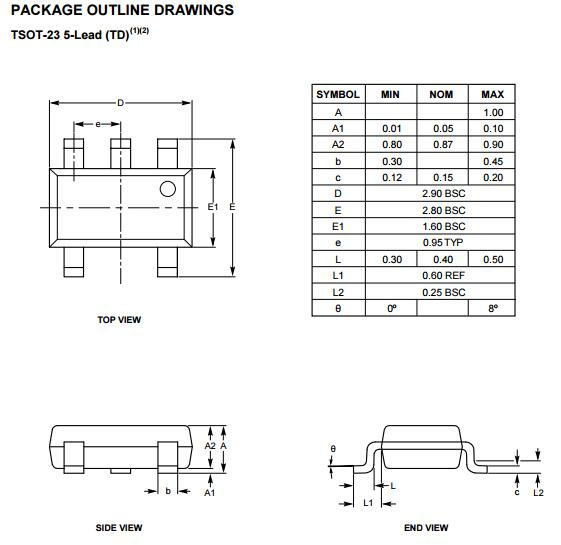

Available in TSOT-23 5-lead and SC-70 packages

APPLICATIONS
Microprocessor and Microcontroller based
systems
Intelligent Instruments
Control Systems
Critical µP Monitors
Portable Equipment

Description

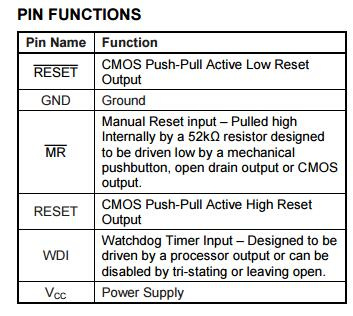

The CAT823, CAT824, and CAT825 provide basic reset and monitoring functions for the electronic systems. Each device monitors the system voltage and maintains a reset output until that voltage reaches the device's specified trip value and then maintains the reset output active condition until the device's internal timer, after a minimum timer of 140ms; to allow the systems power supply to stabilize. The CAT823 and CAT824 also have a watchdog input which can be used to monitor a system signal and cause a reset to be issued if the signal fails to change state prior to a timeout condition. The CAT823 and CAT825 also provide a manual reset input which can be used to initiate reset if pulled low. This input can be directly attached to a pushbutton or a processor signal.
