IC Integrated Circuit Sgm8051 Xn5 of Operational Amplifier

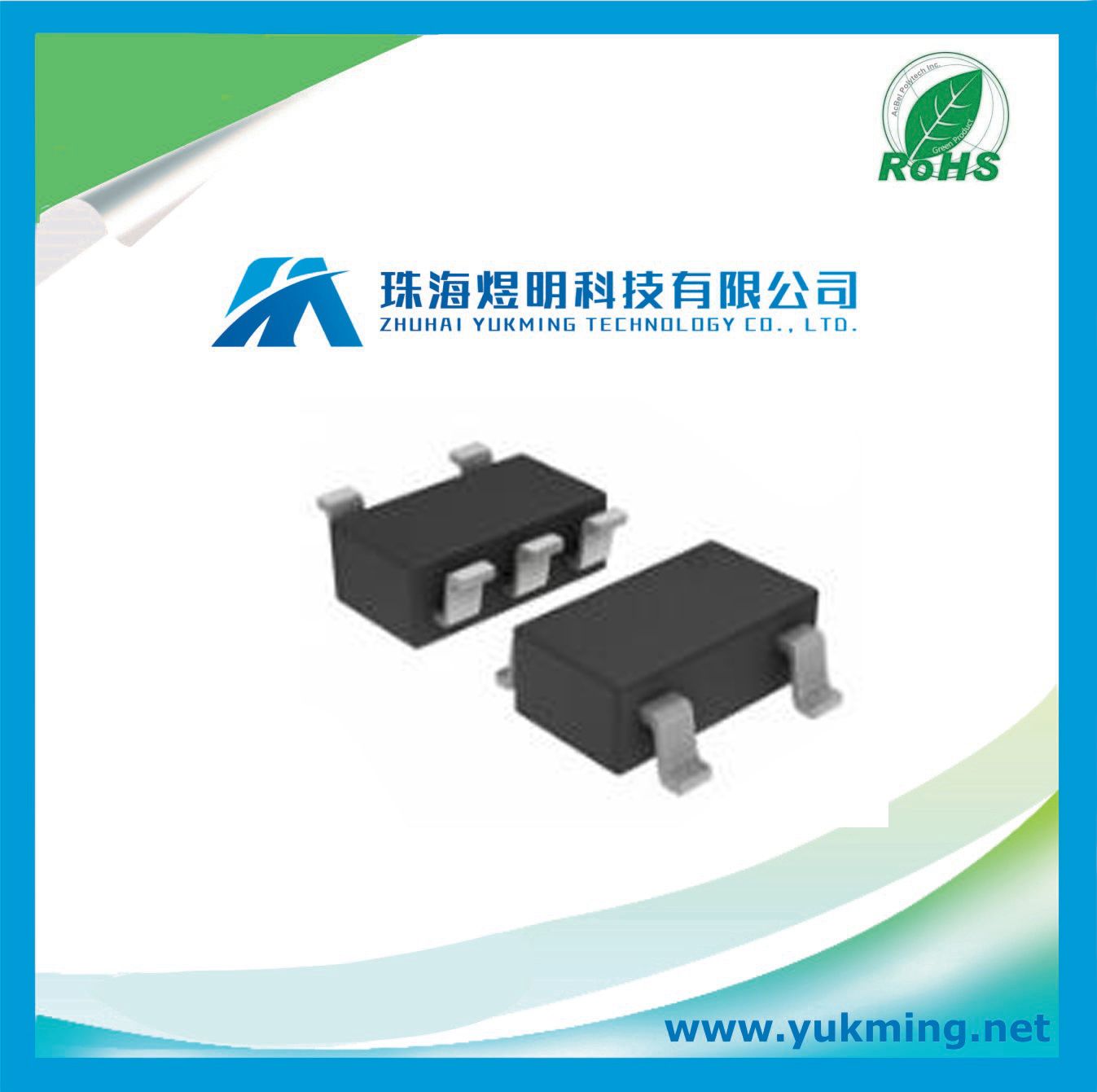

Name: IC Integrated Circuit Sgm8051 Xn5 of Operational Amplifier
Brand: all-electronics-online.com
SKU: 799707925
Availability: InStock
Rating: 4.7 (30 reviews)

Price:	US $ 0.2663/Piece
Min Order:	3000/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	SGM8051 XN5
Operation Supply Voltage:	2.5 V to 5.5 V
Input Voltage Range:	- 0.2 V to + 3.8 V with Vs = 5 V
Excellent Video Specs:	(Rl = 150Ω, G = +2)
Application 1:	Imaging
Application 2:	Photodiode Preamp
Application 3:	Professional Video and Cameras
Application 4:	Hand Sets
Application 5:	DVD/CD

Product Description

Lead time	2 to 3 days after receiving the payment.
Remark	100% New and original ; 30 days warranty
Payment	Heng Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express

250MHz, Rail-to-Rail Output
CMOS Operational Amplifier

PRODUCT DESCRIPTION
The SGM8051/3 (single), SGM8052/5 (dual), SGM8054
(quad) are rail-to-rail output voltage feedback amplifiers
offering ease of use and low cost. They have bandwidth
and slew rate typically found in current feedback
amplifiers. All have a wide input common-mode voltage
range and output voltage swing, making them easy to
use on single supplies as low as 2.5 V.
Despite being low cost, the SGM8051 series provide
excellent overall performance. They offer wide
bandwidth to 250 MHz (G = +1) along with 0.1 dB flatness
out to 37 MHz(G = +2)and offer a typical low power of
2.3 mA/amplifier.
The SGM8051 series is low distortion and fast settling
make it ideal for buffering high speed A/D or D/A
converters. The SGM8053/5 has a power-down disable
feature that reduces the supply current to 75 μA. These
features make the SGM8053/5 ideal for portable and
battery-powered applications where size and power are
critical. All are specified over the extended - 40°C to
+125°C temperature range.

FEATURES
• Low Cost
• Rail-to-Rail Output
2mV Typical VOS
• High Speed
250 MHz, -3 dB Bandwidth (G = +1)
130 V/μs, Slew Rate
58 ns Settling Time to 0.1% with 2V Step
• Operates on 2.5 V to 5.5 V Supplies
• Input Voltage Range = - 0.2 V to + 3.8 V with VS = 5 V
• Excellent Video Specs (RL = 150Ω, G = +2)
Gain Flatness 0.1dB to 37 MHz
Diff Gain: 0.03 % , Diff Phase: 0.08 degree
• Low Power
2.3 mA/Amplifier Typical Supply Current
75μA/Amplifier when Disabled (SGM8053/5 only)
• Small Packaging

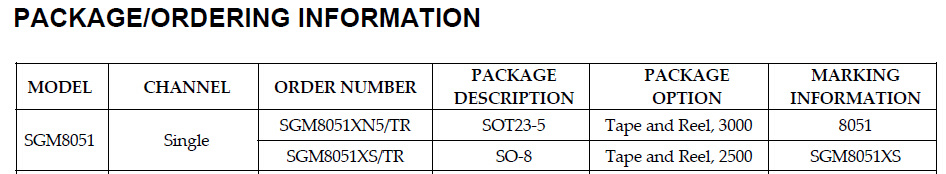

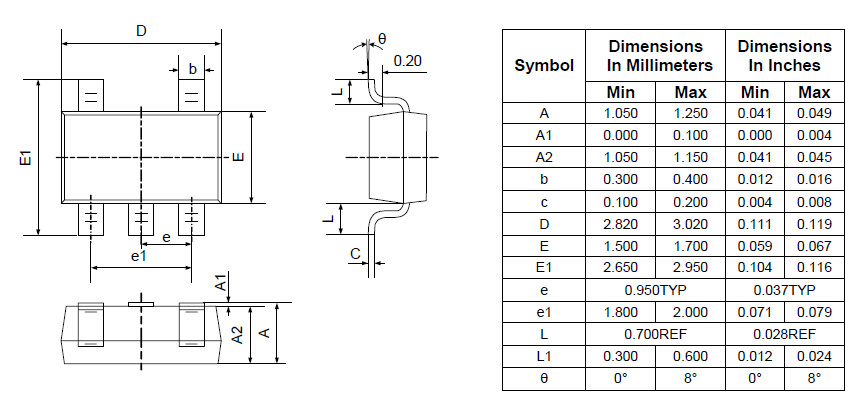

SGM8051 Available in SOT23-5 and SO-8
SGM8052 Available in MSOP-8 and SO-8
SGM8053 Available in SOT23-6 and SO-8
SGM8054 Available in TSSOP-16 and SO-16
SGM8054 Available in TSSOP-14 and SO-14
SGM8055 Available in MSOP-10

APPLICATIONS
Imaging
Photodiode Preamp
Professional Video and Cameras
Hand Sets
DVD/CD
Base Stations
Filters
A-to-D Driver
