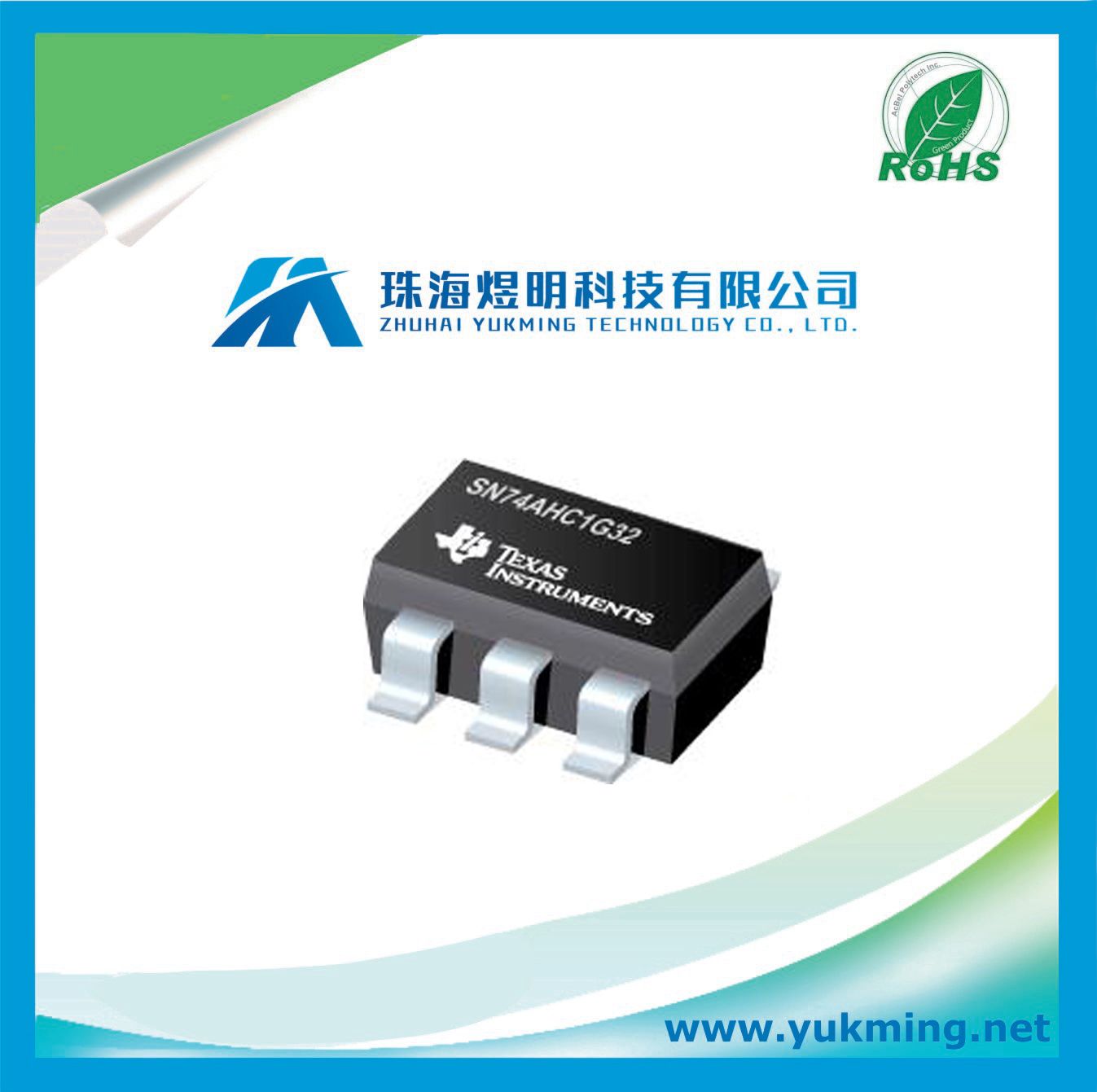

IC Integrated Circuit Sn74ahc1g32dbvt of Single 2-Input Positive-or Gate

Name: IC Integrated Circuit Sn74ahc1g32dbvt of Single 2-Input Positive-or Gate
Brand: all-electronics-online.com
SKU: 799604255
Availability: InStock
Rating: 4.4 (55 reviews)

Price:	US $ 0.2731/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	SN74AHC1G32DBVT
Logic Family:	Ahc
Logic Function:	or
Fabrication Techno:	CMOS
Number Of Elements Per Chip:	1
Number Of Element Inputs:	2-in
Number Of Element Outputs:	1
Operation Temperature Range:	-40 ~ 85

Product Description

Lead time	2 to 3 days after receiving the payment.
Remark	100% New and original ; 30 days warranty
Payment	Heng Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express

SINGLE 2-INPUT POSITIVE-OR GATE

MANUFACTURER
Texas Instruments

PRODUCT CATEGORY
Gates

DESCRIPTION
OR Gate 1-Element 2-IN CMOS 5-Pin SOT-23 T/R

Now you can design fundamental logical circuits using some of Texas Instruments' SN74AHC1G32DBVT logic gates! This gate has an operating temperature range of -40 °C to 85 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This device has a typical operating supply voltage of 2.5|3.3|5 V. Its minimum operating supply voltage of 2 V, while its maximum is 5.5 V.

Specifications
EU RoHS Compliant
Logic Family AHC
Logic Function OR
Fabrication Technology CMOS
Number of Elements per Chip 1
Number of Element Inputs 2-IN
Number of Element Outputs 1
Minimum Operating Temperature (°C) -40
Maximum Operating Temperature (°C) 85
Packaging Tape and Reel
Minimum Operating Supply Voltage (V) 2
Maximum Operating Supply Voltage (V) 5.5
Typical Operating Supply Voltage (V) 2.5|3.3|5
Maximum High Level Output Current (mA) -8
Maximum Low Level Output Current (mA) 8
Maximum Quiescent Current (uA) 1
Mounting Surface Mount

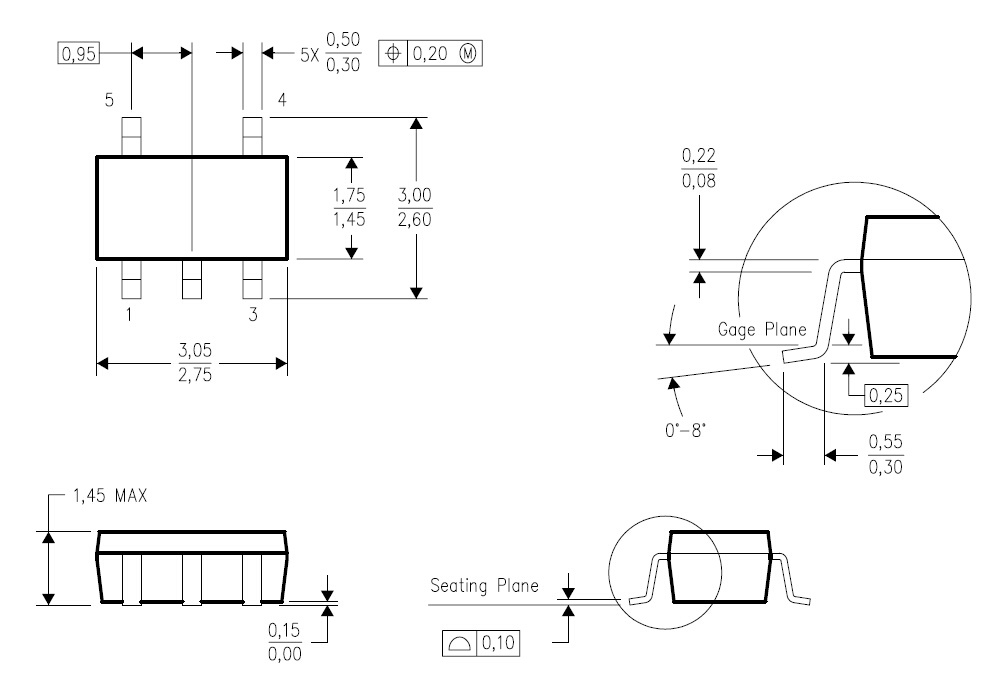

Package Height (mm) 1.3(Max)
Package Length (mm) 3.05(Max)
Package Width (mm) 1.75(Max)
PCB changed 5

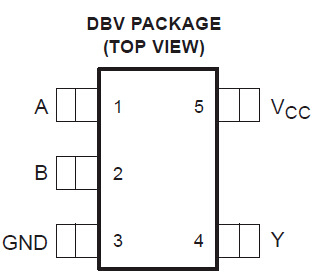

Standard Package Name SOT-23
Supplier Package SOT-23
Pin Count 5
Lead Shape Gull-wing

Features
Operating Range of 2 V to 5.5 V
Max tpd of 6.5 ns at 5 V
Low Power Consumption, 10-μA Max ICC
±8-mA Output Drive at 5 V
Schmitt Trigger Action at All Inputs Makes
the Circuit Tolerant for Slower Input Rise
and Fall Time
Latch-Up Performance Exceeds 250 mA Per
JESD 17
