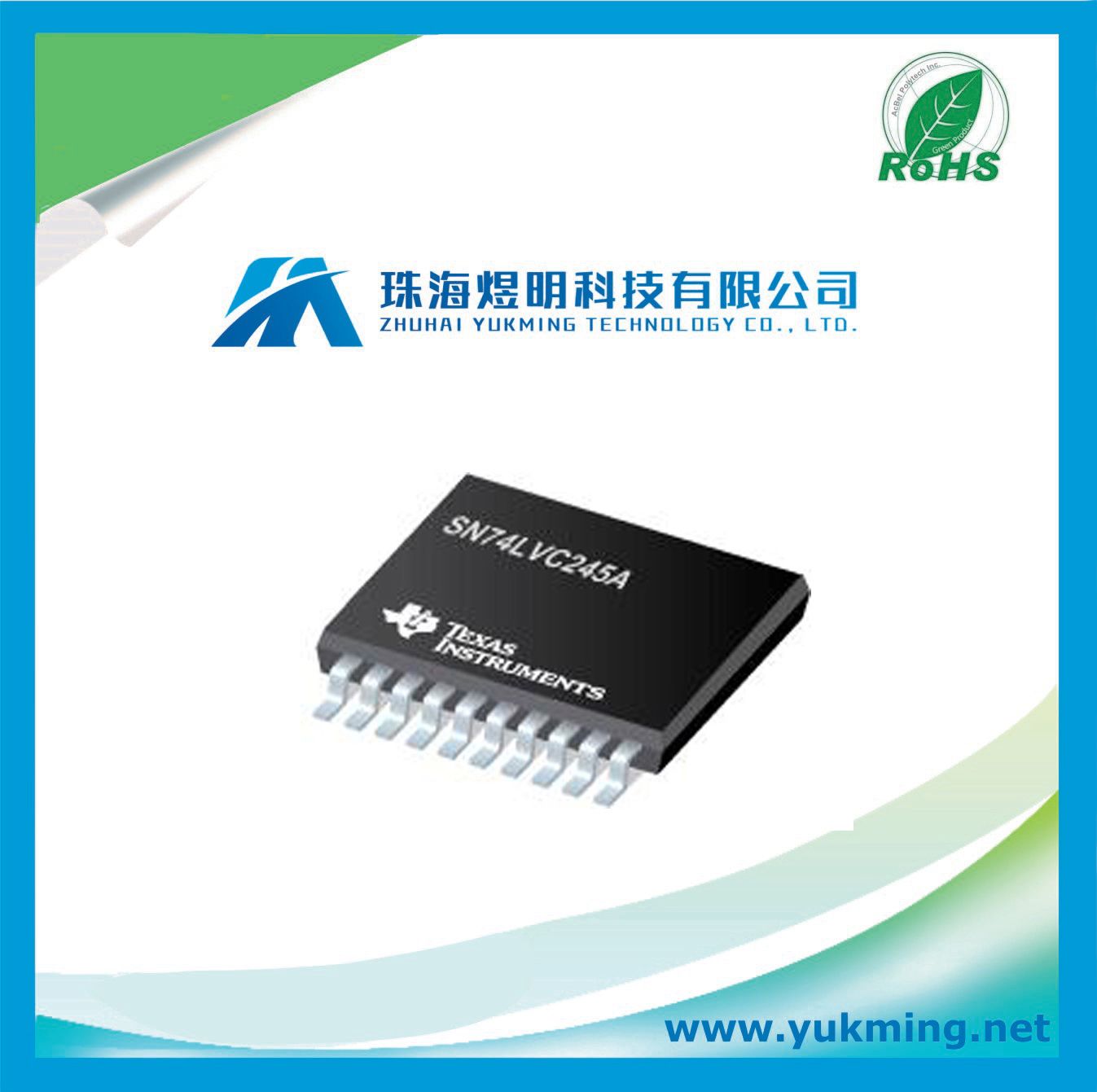

IC Integrated Circuit Sn74lvc245adbr of Bus Transceiver

Name: IC Integrated Circuit Sn74lvc245adbr of Bus Transceiver
Brand: all-electronics-online.com
SKU: 799603915
Availability: InStock
Rating: 4.6 (37 reviews)

Price:	US $ 0.1334/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	SN74LVC245ADBR
Logic Function:	Bus Transceiver
Data Flow Direction:	Bi-Directional
Number Of Elements Per Chip:	1
Polarity:	Non-Inverting
Fabrication Technology:	CMOS
Output Type:	3-State
Tolerant I/OS (V):	5
Number Of Channels Per Chip:	8

Product Description

Lead time	2 to 3 days after receiving the payment.
Remark	100% New and original ; 30 days warranty
Payment	Heng Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express

MANUFACTURER
Texas Instruments

PRODUCT CATEGORY
Bus Transceiver

DESCRIPTION
Bus XCVR Single 8-CH 3-ST 20-Pin SSOP T/R

These octal bus transceivers are designed for 1.65-V to 3.6-V VCC operation. The 'LVC245A devices are designed for asynchronous communication between data buses.

Specifications
EU RoHS Compliant
Logic Family LVC
Logic Function Bus Transceiver
Data Flow Direction Bi-Directional
Number of Elements per Chip 1
Polarity Non-Inverting
Fabrication Technology CMOS
Output Type 3-State
Tolerant I/Os (V) 5
Number of Channels per Chip 8
Minimum Operating Temperature (°C) -40
Maximum Operating Temperature (°C) 125
Packaging Tape and Reel
Minimum Operating Supply Voltage (V) 1.65
Maximum Operating Supply Voltage (V) 3.6
Typical Operating Supply Voltage (V) 1.8|2.5|3.3
Absolute Propagation Delay Time (ns) 17
Input Level LVTTL|TTL
Output Level LVCMOS
Temperature Grade Automotive
Mounting Surface Mount

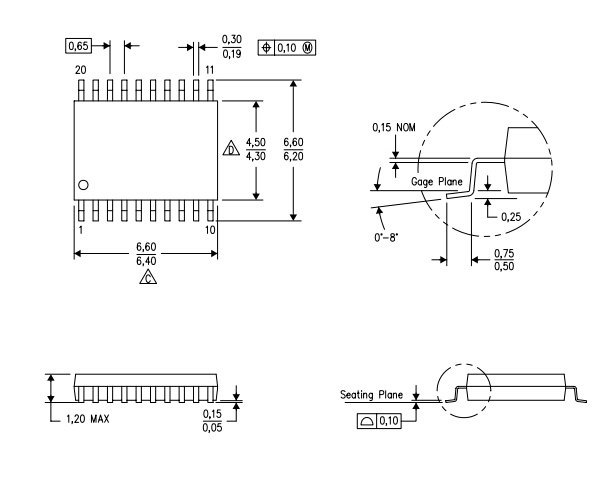

Package Height (mm) 2(Max) - 0.05(Min)
Package Length (mm) 7.5(Max)
Package Width (mm) 5.6(Max)
PCB changed 20
Standard Package Name SOP
Supplier Package SSOP
Pin Count 20
Lead Shape Gull-wing

Features
Operates From 1.65 V to 3.6 V
Inputs Accept Voltages to 5.5 V
Max tpd of 6.3 ns at 3.3 V
Typical VOLP (Output Ground Bounce)
< 0.8 V at VCC = 3.3 V, TA = 25°C
Typical VOHV (Output VOH Undershoot)
> 2 V at VCC = 3.3 V, TA = 25°C
Ioff Supports Live Insertion, Partial-Power-Down
Mode and Back Drive protection
Supports Mixed-Mode Signal Operation on All
Ports (5-V Input/Output Voltage With 3.3-V VCC)
Latch-Up Performance Exceeds 250 mA Per JESD 17
ESD Protection Exceeds JESD 22
2000-V Human-Body Model
1000-V Charged-Device Model

Applications
Cable Modem Termination Systems
Servers
LED Displays
Network Switches
Telecom Infrastructure
Motor Drivers
I/O Expanders
