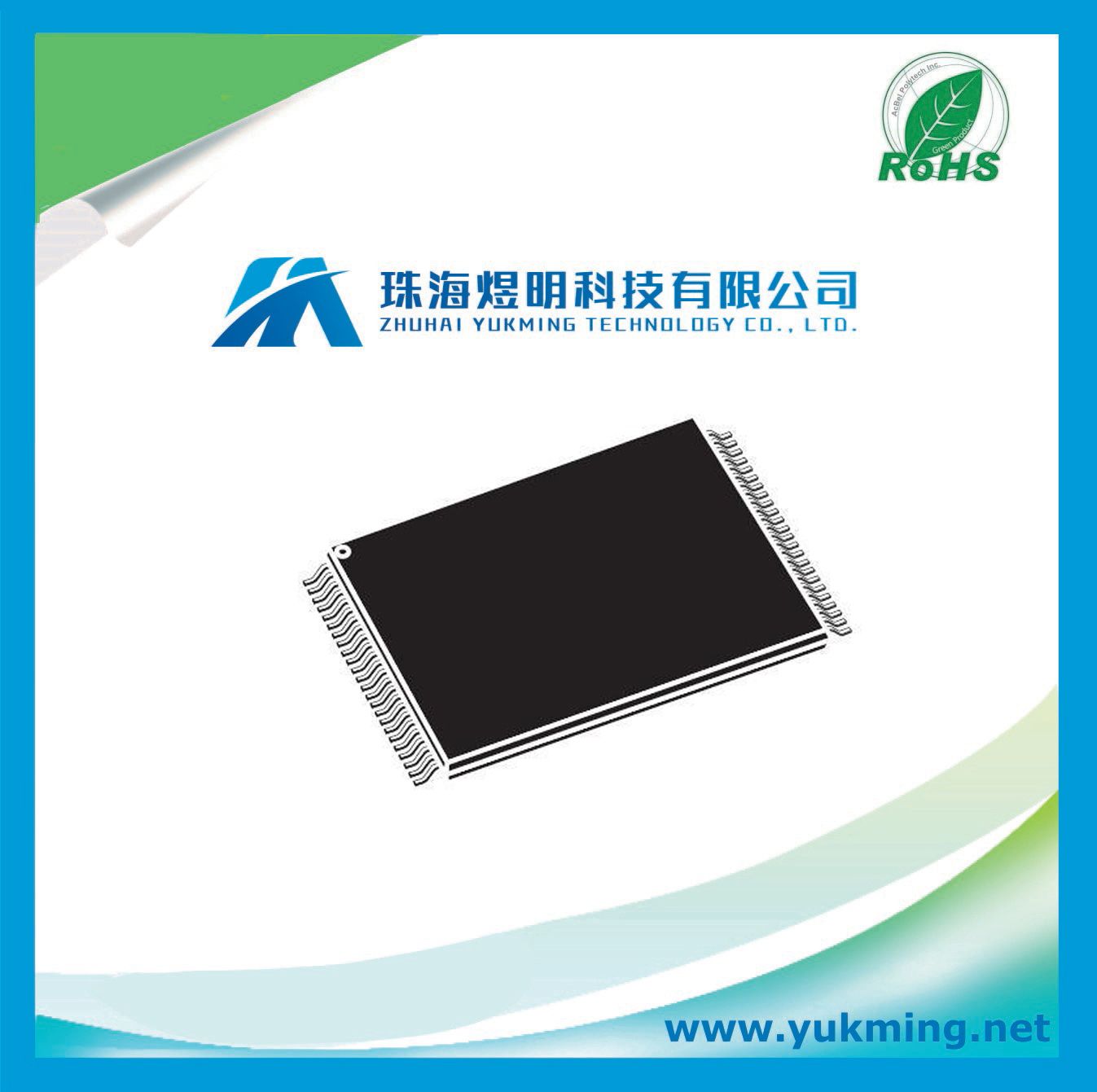

IC Itegrated Circuit of 64 Mbit (X16) Multi-Purpose Flash Plus

Product Description

64 Mbit (x16) Multi-Purpose Flash Plus

FEATURES:
• Organized as 4M x16
• Single Voltage Read and Write Operations
- 2.7-3.6V
• Superior Reliability
- Endurance: 100,000 Cycles (Typical)
- Greater than 100 years Data Retention
• Low Power Consumption (typical values at 5 MHz)
- Active Current: 9 mA (typical)
- Standby Current: 3 µA (typical)
- Auto Low Power Mode: 3 µA (typical)
• Hardware Block-Protection/WP# Input Pin
- Top Block-Protection (top 32 KWord)
for SST39VF6402B
- Bottom Block-Protection (bottom 32 KWord)
for SST39VF6401B
• Sector-Erase Capability
- Uniform 2 KWord sectors
• Block-Erase Capability
- Uniform 32 KWord blocks
• Chip-Erase Capability
• Erase-Suspend/Erase-Resume Capabilities
• Hardware Reset Pin (RST#)
• Security-ID Feature
- SST: 128 bits; User: 128 bits
• Fast Read Access Time:
- 70 ns
- 90 ns
• Latched Address and Data
• Fast Erase and Word-Program:
- Sector-Erase Time: 18 ms (typical)
- Block-Erase Time: 18 ms (typical)
- Chip-Erase Time: 40 ms (typical)
- Word-Program Time: 7 µs (typical)
• Automatic Write Timing
- Internal VPP Generation
• End-of-Write Detection
- Toggle Bits
- Data# Polling
• CMOS I/O Compatibility
• JEDEC Standard

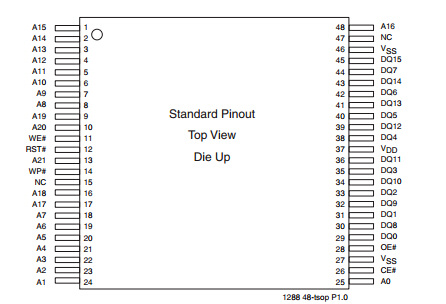

- Flash EEPROM Pin Assignments
- Software command sequence compatibility
- Address format is 11 bits, A10-A0
- Block-Erase 6th Bus Write Cycle is 30H
- Sector-Erase 6th Bus Write Cycle is 50H
• Packages Available

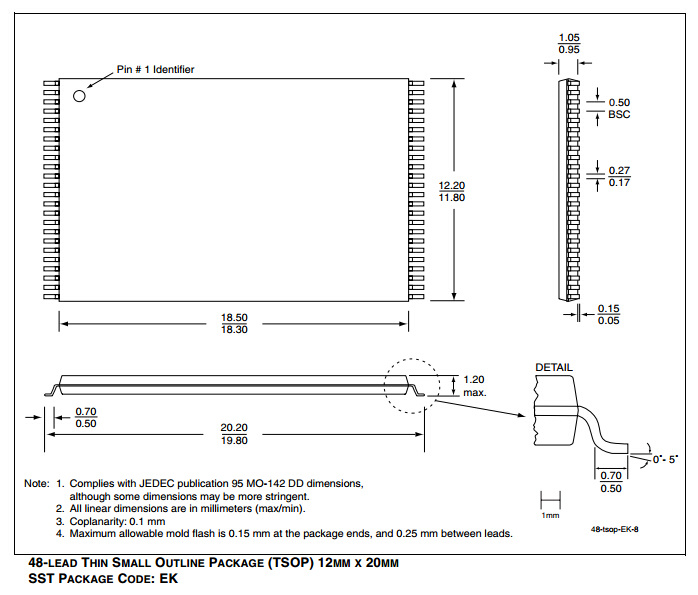

- 48-lead TSOP (12mm x 20mm)
- 48-ball TFBGA (8mm x 10mm)
• All non-Pb (lead-free) devices are RoHS compliant
