| Prod Model: |
BB-Samsung26F |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand: |
Samsung |
| Original: |
Korea |
| Battery Model: |
18650 2600mAh |
| Discharge Current: |
1c |
| Dimension: |
18*65mm |
| Type: |
Lithium-Ion Batteries |
| Usage: |
Battery Pack |
| Discharge Rate: |
Medium Discharge Rate |
| Shape: |
Cylindrical Battery |
| Rechargeable: |
Chargeable |
| Nominal Voltage: |
3.7V |
| Electrolyte: |
LiFePO4 |
Product Description

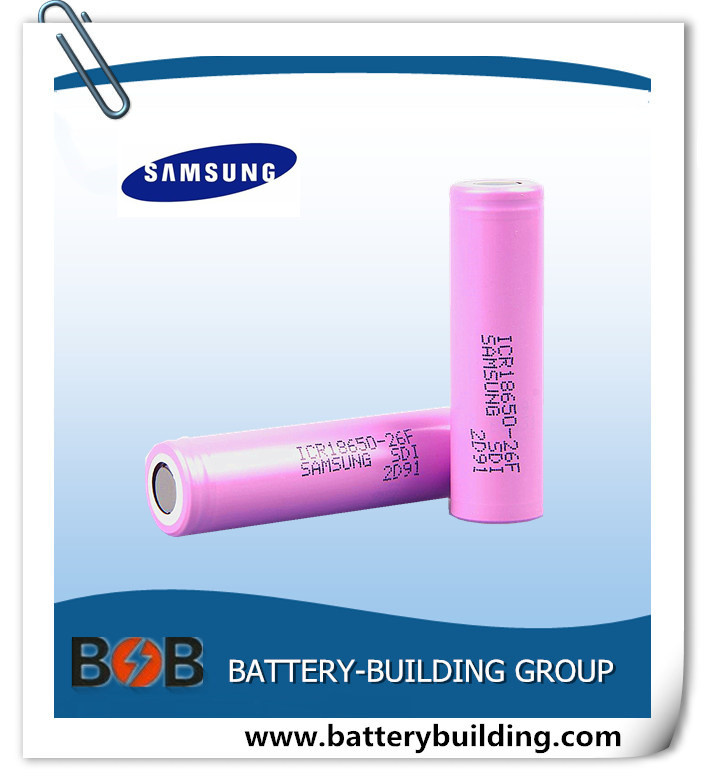

Icr18650-26f 2600mAh lithium battery
Specification
1.Nominal voltage:3.7 V
2.Nominal capacity:2600mAh
3.Discharge from 4.2V to 3.0V at 0.2C mA
4.Minimal capacity:2550mAh
5.Max charge current:2600 mA 1C
6.Charging method:Charge with constant current 1C to 4.2V, then charge with constant voltage 4.2V till charge current is less than 0.01C
7.Discharge cut-off voltage:3.0 V, the over-discharge detection voltage of PCM
8.Operating environment:Charging, 0°C ~ 45°C ; 65±20%RH
Discharging, -20°C~60°C ; 65±20%RH
Storage environment: -20°C~45°C 65±20%RH
9. Storage for a long time(>3 months) and the storage condition shall be:<35°C;65±20%RH;3.7~3.9V
10.Cell Weight (Approx):50g
11.Cell Dimension (Max):according to customer demand
Advantages:
1, High energy density
2, High working voltage for single battery cells
3, Pollution-free
4, Long cycle life
5, No memory effect
6, Capacity, resistance, Voltage, platform time consistency is good
7, With short-circuit production function, safe and reliable
8, Factory price& High quality
9, Good consistency, low self discharge
10, Light weight, small size
Features:
1, Longer storage life than NiMH Batteries
2, Light weight and higher energy density than any rechargeable battery
3, Installed IC chip will prevent the battery pack from over charge and over discharge.
It helps protect battery chemistry integrity and prolongs battery life.
4, Installed polyswitch will cut off power if battery discharge current more than 6.6Ah
5, Perfect for building up battery pack for medical equipment Back-up or EPS Emergency Power
6, Supply which requires compact size and lighter weight
7, The battery module is wrap by PVC
Approval:
CE, UL, REACH, ROSH; ISO 9001:2008 and ISO 14001:2004 approval have been carried.
Shipping:
1. We will ship the products within 15 workdays after receipt of payment.
2. We can ship to you by UPS/FEDEX/DHL and so on. Other shipping terms can also be arranged according to specific requirements.
3. We are not responsible for any accidents, delays or other issues that are the responsiblility of the shipping service.

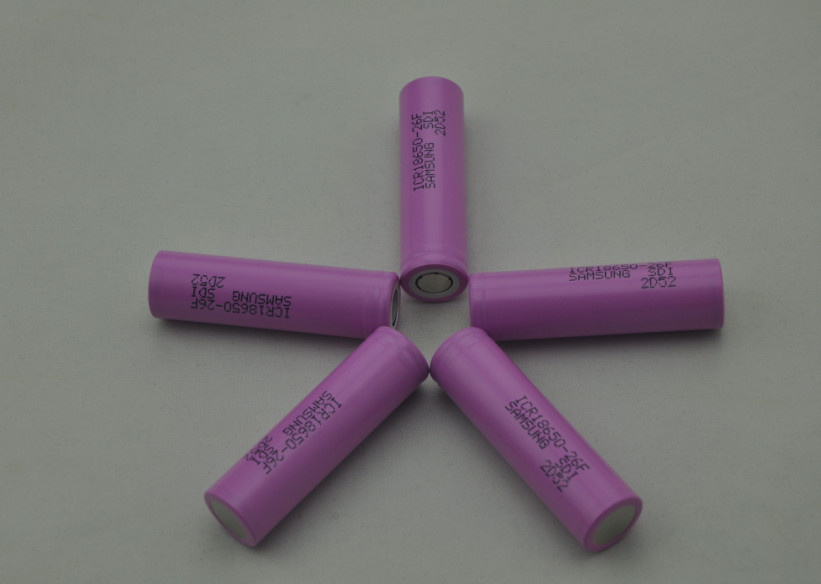

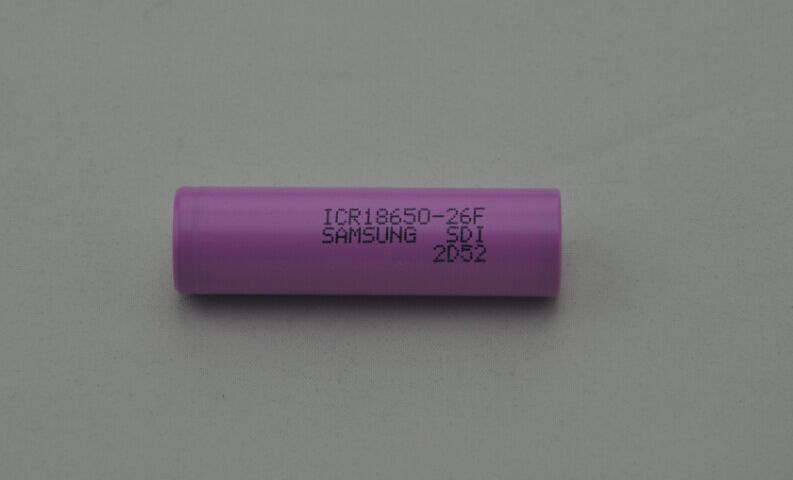

Product Pictures
Other models:
| Model. | Description | Weight(g) | discharge |
|
|
| USA K2 IFR 18650P 3.2V | 1200mAh | 45 | 30C/60C |
| IFR 18650P 3.2V | 1100mAh | 45 | 20C/30C |
| IFR 18650E 3.2V | 1500mAh | 45 | 3C/5C |
| USA K2 26650Ev 3.2V | 3200mAh | 85 | 5C/10C |
| USA K2 26650P 3.2V | 2600mAh | 85 | 30C/60C |
| IFR 18650P 3.2V | 1500mAh | 45 | 15C |
| IFR 38120S 3.2V | 10Ah | 330 | 5C/8C |
| IFR 38120P 3.2V | 10Ah | 330 | 10C/20C |
| ICR 18650E 3.7V | 2200mAh | 45 | 3C |
| ICR 26650E 3.7V | 4000mAh | 82 | 2C |
| ICR 26650E 3.7V | 4500mAh | 82 | 2C |
| ICR26700E 3.7V | 5000mAh | 85 | 2C |
| SAMSUNG INR18650-13P/13L | 1300mAh | 44.5 | 10/20C |
| SAMSUNG INR18650-15K | 1500mAh | 44.5 | 10C |
| SAMSUNG INR18650-15Q | 1500mAh | 44.5 | 12C |
| SAMSUNG INR18650-15M | 1500mAh | 44.5 | 18C |
| SAMSUNG INR18650-13Q | 1300mAh | 44.5 | 15C |
| SAMSUNG INR18650-20Q | 2000mAh | 44.5 | 8C |
| SAMSUNG INR18650-20R | 2000mAh | 44.5 | 11C |
| SAMSUNG ICR18650-22FM | 22OOmAh | 45 | 2C |
| SAMSUNG ICR18650-22P 3.7V | 2200mAh | 45 | 5C |
| SAMSUNG ICR18650-26F/26FM/26H | 2600mAh | 45 | 2C |
| SAMSUNG ICR18650-28A | 2800mAh | 45 | 2C |
| SAMSUNG ICR18650-29E | 2900mAh | 45 | 2C |
| SAMSUNG ICR18650-30A/30B | 3000mAh | 45 | 2C |
| SAMSUNG ICR18650-32A | 3200mAh | 48 | 2C |
| Panasonic NCR18650PF | 2900mAh | 45 | 2C |
| Panasonic NCR18650BD | 3200mAh | 47 | 3C |
| Panasonic NCR18650B | 34OOmAh | 45.9 | 1C |
| Panasonic NCR18650A | 3100mAh | 45 | 2C |
| LG 18650 HE2 | 2500mAh | 48 | 12.5C |
| LG 18650 D1 | 3000mAh | 48.5 | 2C |
| LG 18650 C2 | 2800mAh | 48 | 2C |
| LG 18650 B4 | 2600mAh | 48 | 2C |
| LG 18650 S3 | 2200mAh | 48 | 2C |
| LG 18650 MF1 | 22OOmAh | 48 | 5C |
