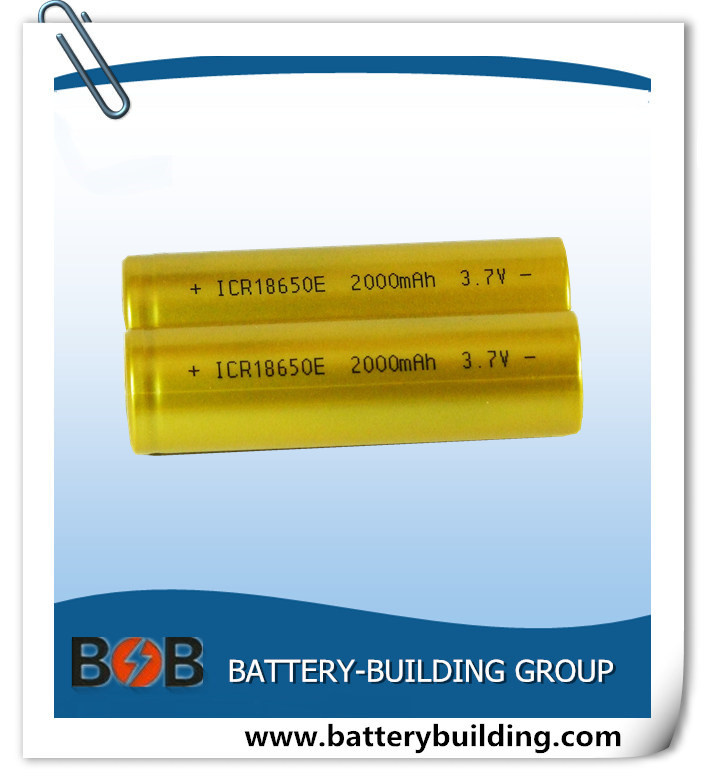

Icr18650 3.7V 2000mAh Lithium Battery

Prod Model:	BB-18650/2000
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brand:	Bb
Battery Type:	Icr18650 3.7V 2000mAh
Certificate:	CE, RoHS
Type:	Lithium-Ion Batteries
Usage:	Electric Bicycle
Discharge Rate:	Medium Discharge Rate
Shape:	Cylindrical Battery
Rechargeable:	Chargeable
Nominal Voltage:	3.7V
Electrolyte:	Li-ion

Product Description

Icr18650 3.7V 2000mAh Lithium Battery

Specification
Type ---------------------Air proof cylindrical rechargeable Li-ion battery
Model ------------------------------------------------------------- ICR18650
Size type--------------------------------------------------------------- 18650
Nominal voltage--------------------------------------------------------- 3.7V
Weight-----------------------------------------------------------Approx. 45g
C5mAh------------------------------------------------------------- 2000mAh
Charging Voltage------------------------------------------ ---4.200±0.049V
Min. discharging cut-off Voltage------------------------------------- 2.75V
Max. Charging cut-off Voltage ---------------------------------- ----4.20V
Max. Continuous charging current-------------------------------- 2000mA
Max. Continuous discharging current ---------------------------- 4000mA
Size (Including shrinkage tube)
Diameter ------------------------------------------------------ 18.2±0.1mm
Height---------------------------------------------------------- 64.7±0.3mm
Capacity (20oC, 0.2 C5 to 2.75V)
Minimum capacity---------------------------------------------1950mAh
Impedance( 20ºC±5ºC, fully charged)------------------- ≤80mΩ
Charging Term (20oC):
Standard charging------ First at 1100mA of current charged to 4.2V;
then by constant current to the minimum drain of 20mA
Speedy charging---- 2200mAto 4.2V, then constant voltage to 20mA
Working Ambient(Suggested)
Stock-----------------------------------------------------------Temp. (15-35ºC)
------------------------------------------------------Relative humidity (45-75%)
--------------------------------------------------------Air pressure (86-106Kpa)
Discharging------------------------------------------------------------ -20-60ºC
Standard charging------------------------------------------------------- 0-45ºC
Relative humidity -------------------------------------------------------- <93%
Air pressure---------------------------------------------------------- 86-106kPa
Standard Testing Ambient (Except special requirements)
Temperature---------------------------------------------------------- 20ºC±5ºC
Relative humidity----------------------------------------------------- 65±20%

Advantages:
1, High energy density
2, High working voltage for single battery cells
3, Pollution-free
4, Long cycle life
5, No memory effect
6, Capacity, resistance, Voltage, platform time consistency is good
7, With short-circuit production function, safe and reliable
8, Factory price& High quality
9, Good consistency, low self discharge
10, Light weight, small size

Features:
1, Longer storage life than NiMH Batteries
2, Light weight and higher energy density than any rechargeable battery
3, Installed IC chip will prevent the battery pack from over charge and over discharge.
It helps protect battery chemistry integrity and prolongs battery life.
4, Installed polyswitch will cut off power if battery discharge current more than 6.6Ah
5, Perfect for building up battery pack for medical equipment Back-up or EPS Emergency Power
6, Supply which requires compact size and lighter weight
7, The battery module is wrap by PVC

Others:
1, OEM orders are available
2, Superior quality and cost-performance ratio
3, Tags, plugs and connectors are available
4, We could design and produce the battery pack with plastic shell and assembly procession for customized configurations is available (we could design and develop Li-ion battery according to your product work performance & structure apprearance)

Other battery models:

Model.	Description	Weight(g)	discharge
USA K2 IFR 18650P 3.2V	1200mAh	45	30C/60C
IFR 18650P        3.2V	1100mAh	45	20C/30C
IFR 18650E        3.2V	1500mAh	45	3C/5C
USA K2 26650Ev    3.2V	3200mAh	85	5C/10C
USA K2 26650P     3.2V	2600mAh	85	30C/60C
IFR 18650P        3.2V	1500mAh	45	15C
IFR 38120S        3.2V	10Ah	330	5C/8C
IFR 38120P        3.2V	10Ah	330	10C/20C
ICR 18650E        3.7V	2200mAh	45	3C
ICR 26650E        3.7V	4000mAh	82	2C
ICR 26650E        3.7V	4500mAh	82	2C
ICR26700E         3.7V	5000mAh	85	2C
SAMSUNG INR18650-13P/13L	1300mAh	44.5	10/20C
SAMSUNG INR18650-15K	1500mAh	44.5	10C
SAMSUNG INR18650-15Q	1500mAh	44.5	12C
SAMSUNG INR18650-15M	1500mAh	44.5	18C
SAMSUNG INR18650-13Q	1300mAh	44.5	15C
SAMSUNG INR18650-20Q	2000mAh	44.5	8C
SAMSUNG INR18650-20R	2000mAh	44.5	11C
SAMSUNG ICR18650-22FM	22OOmAh	45	2C
SAMSUNG ICR18650-22P  3.7V	2200mAh	45	5C
SAMSUNG ICR18650-26F/26FM/26H	2600mAh	45	2C
SAMSUNG ICR18650-28A	2800mAh	45	2C
SAMSUNG ICR18650-29E	2900mAh	45	2C
SAMSUNG ICR18650-30A/30B	3000mAh	45	2C
SAMSUNG ICR18650-32A	3200mAh	48	2C
Panasonic NCR18650PF	2900mAh	45	2C
Panasonic NCR18650BD	3200mAh	47	3C
Panasonic NCR18650B	34OOmAh	45.9	1C
Panasonic NCR18650A	3100mAh	45	2C
LG 18650 HE2	2500mAh	48	12.5C
LG 18650 D1	3000mAh	48.5	2C
LG 18650 C2	2800mAh	48	2C
LG 18650 B4	2600mAh	48	2C
LG 18650 S3	2200mAh	48	2C
LG 18650 MF1	22OOmAh	48	5C
