| Prod Model: |
BB-18650/1S1P |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
LED Light and etc. |
| Structure: |
Samsung 3000mAh 1s1p |
| Dimension: |
19*67mm |
| Certificate: |
CE, RoHS |
| Continuous Discharge Current: |
1c |
| Type: |
Lithium-Ion Battery Pack |
| Connection Mode: |
Series and Parallel |
| Standard Voltage: |
3.7V |
| Usage: |
LED Light |
| Electrolyte: |
Li-ion |
Product Description

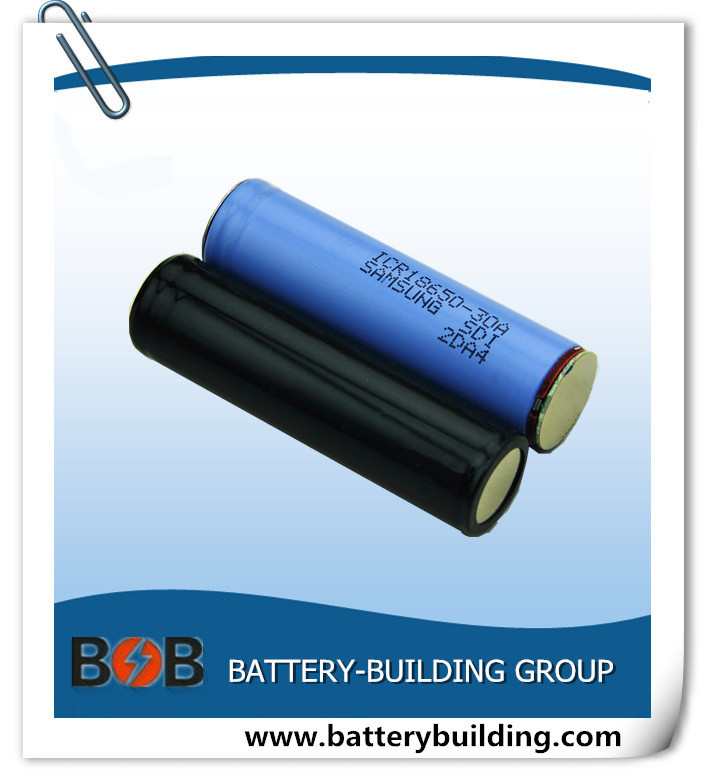

ICR18650 3000mAh 1s1p Lithium Battery Pack with PCB
Features
1. Samsung 18650 3000mAh 1S1P li-ion battery pack
2. No memory effect
3. Fast delivery
Specification
1. Model: Li-ion 18650
2. Capacity: 3000mAh
3. Voltage: 3.7V
4. Work voltage: 2.5~4.2V
5. Pack dimension: 18*65mm (single cell) with PCM
6. Impedance: 80 m Ω
7. Cycle Life: 80% capacity remains after 350cycle (charge at 0.5C and discharge at 0.2C)
2.Product Advantages:
1).With short-circuit production function, safe and reliable;
2).Up to 500 cycles life,low self-discharge,no memory effect;
3).Factory mastered technology and competitive price;
4).CE/ROSH/MSDS/UN38.3
Details:
| NO |
Item |
General Parameter |
Remark |
| 1 |
Model | BB-18650/1S1P | |
| 2 | Standard capacity | 3000mAh | |
| 3 |
Rated voltage | 3.7V | |
| 4 |
Max. charge voltage | 4.2V | 4.2V
Single Ave. charge Voltage |
| 5 |
Over charge protection
| Over charge detection voltage | 4.25 | |
| Over charge release voltage | 4.15 | |
| 6 |
Max. charge current | 1000mA | |
| 7 |
Charging time | About 1-5h | |
| 8 |
Discharge cut-off voltage | 3.0V | 3.0V
Single Ave. Discharge Voltage |
| 9 |
Over discharge Protection
| Over discharge detection voltage | 2.8V | |
| Over discharge release voltage | 3.0V | |
| 10 |
Max. continuous discharge current | 1C | |
| 11 |
Peak discharge current | 2C | |
| 12 |
Short circuit protection |
Detetion delay time | |
Release condition |
Cut-off load |
| 12 |
Battery dimension | 19*67mm | |
| 13 | (Approx.)
Total weight(Approx.) | About 50g | |
14 |
Operation temperature |
Standard | 0ºC~45ºC | |
Discharge | -20ºC~65ºC | |
Storage | -20ºC~65ºC | |
Payment Terms
1.We accept bank transfer(T/T) ,PayPal,Cash.
2.If you prefer other payment method,please contact us by email.
Shipping Terms
1.Samples order: sending by Express ( DHL/ UPS/ FEDEX/ TNT )
2.Bulk order: sending out by air/express/sea.
Warranty Instructions
1.We provide 2 years Warranty.
2.Warranty code: quality problems, defective goods can be fixed or replacement; Man-made damage, inflowing water, fault operation leading to short circuit or burning, damaged by carrier is out of our warranty.
3.Goods should be returned in original condition to qualify for a replacement or repair.
Advantages
1.OEM&ODM manufacture, design any of special shape, dimension and other requirements battery packs.
2.Good quality, competitive price, fast delivery, excellent service.
3. Wonderful package, stable shipment, 100% testing and inspection before shipment to insure the quality.
4.CE, RoHS, UN38.3, UL, MSDS certificates.
5. Quick action&response,every inquires will be relied within 24 hours.
Other models:
| Model. | Description | Weight(g) | discharge |
|
|
| USA K2 IFR 18650P 3.2V | 1200mAh | 45 | 30C/60C |
| IFR 18650P 3.2V | 1100mAh | 45 | 20C/30C |
| IFR 18650E 3.2V | 1500mAh | 45 | 3C/5C |
| USA K2 26650Ev 3.2V | 3200mAh | 85 | 5C/10C |
| USA K2 26650P 3.2V | 2600mAh | 85 | 30C/60C |
| IFR 18650P 3.2V | 1500mAh | 45 | 15C |
| IFR 38120S 3.2V | 10Ah | 330 | 5C/8C |
| IFR 38120P 3.2V | 10Ah | 330 | 10C/20C |
| ICR 18650E 3.7V | 2200mAh | 45 | 3C |
| ICR 26650E 3.7V | 4000mAh | 82 | 2C |
| ICR 26650E 3.7V | 4500mAh | 82 | 2C |
| ICR26700E 3.7V | 5000mAh | 85 | 2C |
| SAMSUNG INR18650-13P/13L | 1300mAh | 44.5 | 10/20C |
| SAMSUNG INR18650-15K | 1500mAh | 44.5 | 10C |
| SAMSUNG INR18650-15Q | 1500mAh | 44.5 | 12C |
| SAMSUNG INR18650-15M | 1500mAh | 44.5 | 18C |
| SAMSUNG INR18650-13Q | 1300mAh | 44.5 | 15C |
| SAMSUNG INR18650-20Q | 2000mAh | 44.5 | 8C |
| SAMSUNG INR18650-20R | 2000mAh | 44.5 | 11C |
| SAMSUNG ICR18650-22FM | 22OOmAh | 45 | 2C |
| SAMSUNG ICR18650-22P 3.7V | 2200mAh | 45 | 5C |
| SAMSUNG ICR18650-26F/26FM/26H | 2600mAh | 45 | 2C |
| SAMSUNG ICR18650-28A | 2800mAh | 45 | 2C |
| SAMSUNG ICR18650-29E | 2900mAh | 45 | 2C |
| SAMSUNG ICR18650-30A/30B | 3000mAh | 45 | 2C |
| SAMSUNG ICR18650-32A | 3200mAh | 48 | 2C |
| Panasonic NCR18650PF | 2900mAh | 45 | 2C |
| Panasonic NCR18650BD | 3200mAh | 47 | 3C |
| Panasonic NCR18650B | 34OOmAh | 45.9 | 1C |
| Panasonic NCR18650A | 3100mAh | 45 | 2C |
| LG 18650 HE2 | 2500mAh | 48 | 12.5C |
| LG 18650 D1 | 3000mAh | 48.5 | 2C |
| LG 18650 C2 | 2800mAh | 48 | 2C |
| LG 18650 B4 | 2600mAh | 48 | 2C |
| LG 18650 S3 | 2200mAh | 48 | 2C |
| LG 18650 MF1 | 22OOmAh | 48 | 5C |
