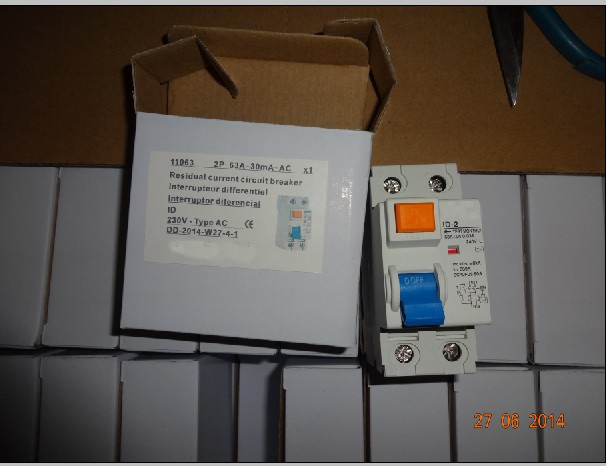

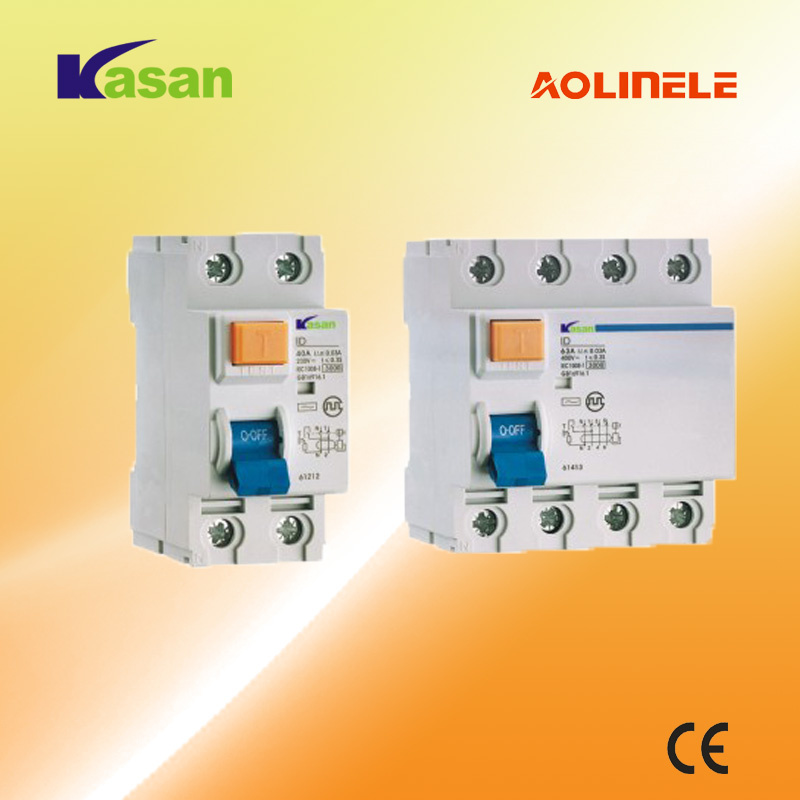

ID Nl1-63 Residual Current Circuit Breaker

Name: ID Nl1-63 Residual Current Circuit Breaker
Brand: all-electronics-online.com
SKU: 690104842
Availability: InStock
Rating: 4.4 (42 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	ID
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Installation:	Open Frame
Structure:	MCCB
Certification:	CE

Product Description

Specifications
1.ID series (RCCB ,ELCB,RCBO)
2.top quality and competitive price
3.OEM service
4. three years warranty time
circuit breaker
The ID RCCB residual current device provide the functions of isolation, switching and earth leakage protection of electrical circuits.

They have a residual current operated electromechanical release which operates without any auxiliary source of supply to open a circuit automatically in the case of an earth leakage fault between phase and earth greater than or equal to a threshold of 10mA, 30mA, or 500mA. Compliance with standard: IEC1008 and GB16917.1.

HS Code: 85362000
Trademark: CNC, OEM
Model: ID
Standard: IEC1008 and GB16917.1

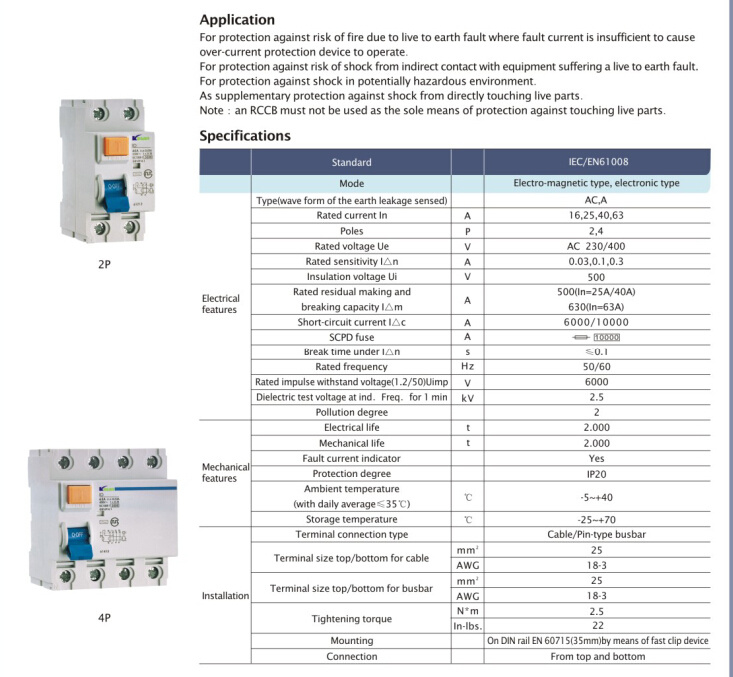

Specification:
Number of pole: 2, 4 pole
Rated voltage: 240/415V
Rated current: 16~100 A
Electrical endurance: 10, 000 times

Type	NFIN25	NFIN40	NFIN63	NFIN100
Rated current In(A)	25	40	63	100
Rated operating current for earth leakage In(A)	0.03, 0.1, 0.3, 0.5		0.1, 0.3, 0.5
Rated non-operating current for earth leakage In(A)	0.51In
Voltage Un(V)	240(220) 415(318)
Pole	2, 4
