ID, RCCB, RCD, MCB, ELCB Circuit Breaker

Name: ID, RCCB, RCD, MCB, ELCB Circuit Breaker
Brand: all-electronics-online.com
SKU: 687285172
Availability: InStock
Rating: 4.3 (40 reviews)

Price:	US $ 4-4.60/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	ID ZM6030
Markets:	South America,Eastern Europe,Africa,Mid East,Eastern Asia
Low Price:	Good Quality
Type:	Circuit Breaker
Function:	RCCB
Arc-extinguishing Medium:	Air
Breaking Capacity:	Low Voltage Circuit Breakers
Certification:	CB
Operation:	Electric Type
Installation:	Fixed
Speed:	Normal Type Circuit Breaker
Structure:	Moulded Case Circuit Breaker

Product Description

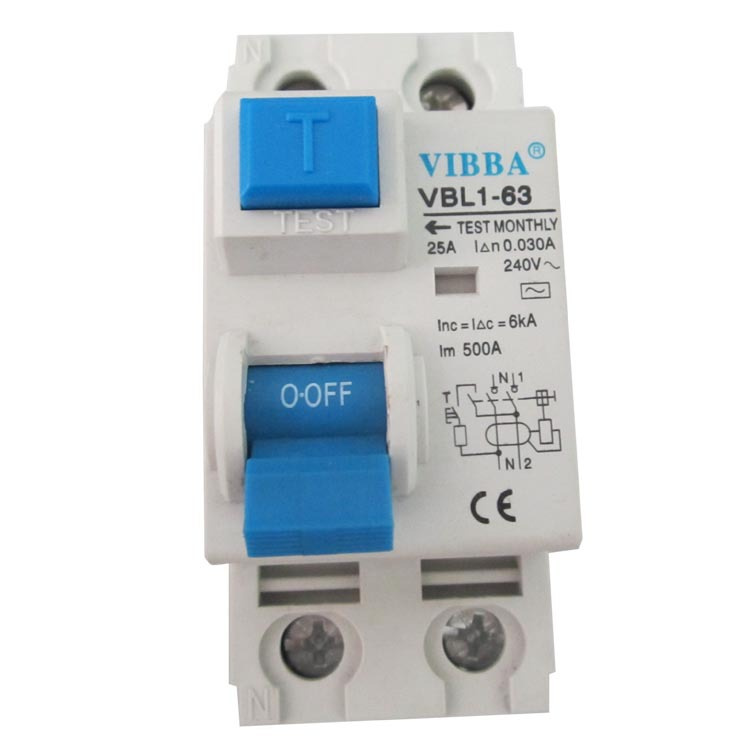

ID Residual Current Circuit Breaker

Application

ID Residual Current Circuit Breaker is an all new high performance current device with the ability to disconnect short circuits of up to 10kA.Which is the newest model in 21st century.

ID Residual Current Circuit Breaker has many merits of high protective grade(up to lp20),high breaking capacity, good reliability of sensitive action, convenient multi-pole assorting, long using life ect. They are mainly are mainly used for overload and short circuit protection within the circuit of AC50Hz,240V in single pole,415V in double, three & commerce. Meanwhile, they are also used in turning on or off the electric apparatus and lighting circuit under the normal condition.

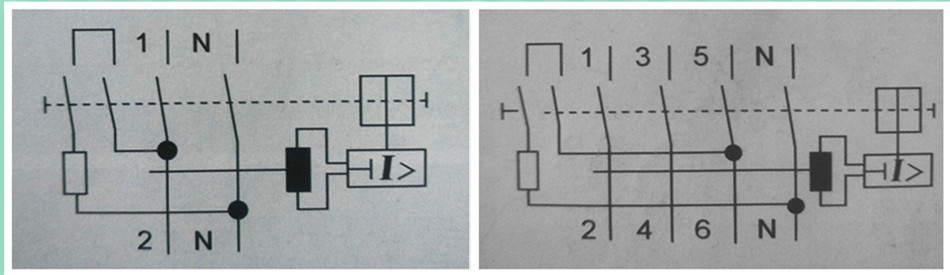

Operation principle figure

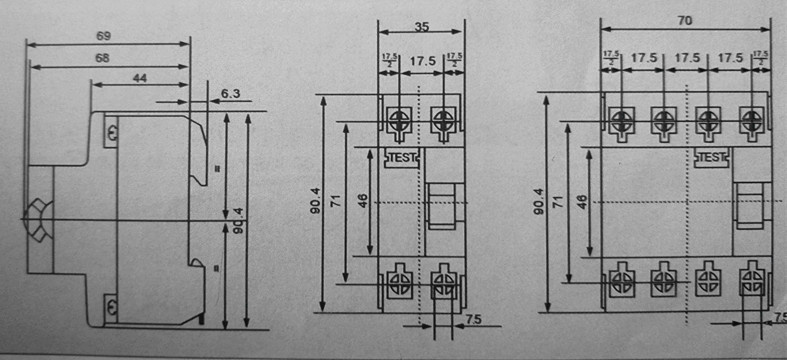

Dimension And Mounting

Notice
1.Leakage protection function of RCCB is tested and adjusted by the manufacturer, users can not open the product at random during usage.

2.After using RCCB for a certain time (normally one month),test button should be pressed once in a state of making the circuit to check whether the function of RCCB is normal and reliable(press test button once, the RCCB can cut off at once).

3.RCCB must not be wetted or soaked by rain, snow or water during the course of transportation, storation and usage.

4.RCCB can not protect short circuit in application.

Type and Specification		Rated Current	Rated Voltage	Rated Operating Current	Residual Operating Current range	Rated conditional Short circuit Current	Mechanical life
ID	2 Poles	16A 25A 32A 40A 63A	AC 240V	0.03A 0.1A 0.3A	0.5I Δ n~ I Δ n	3000A to 6000A	10000
ID	4 Poles	16A 25A 32A 40A 63A	AC 415V	0.03A 0.1A 0.3A	0.5I Δ n~ I Δ n	3000A to 6000A	10000
