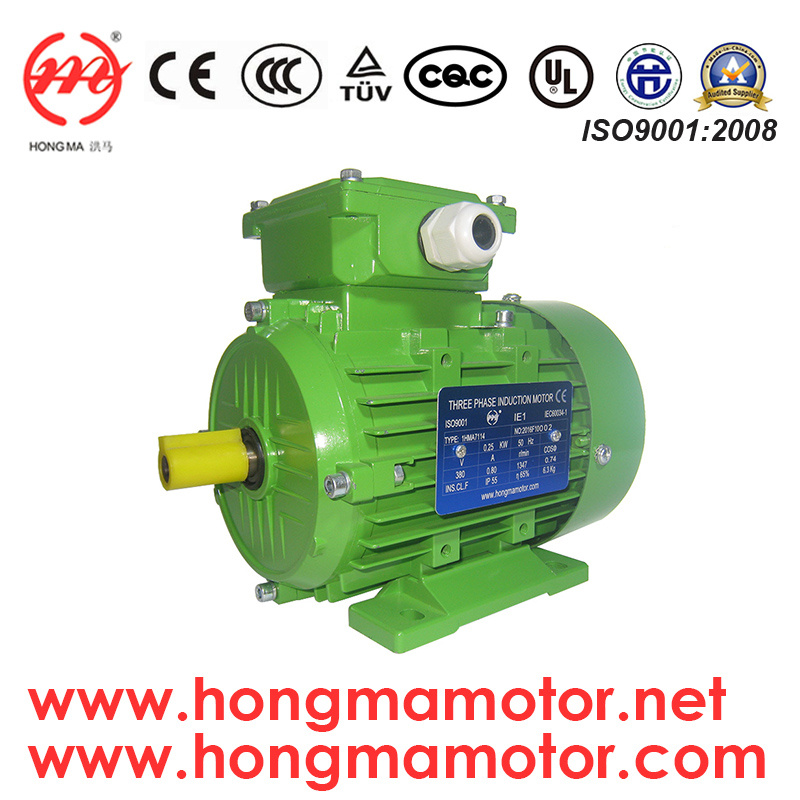

Ie1 Aluminum Housing AC Electric Three Phase Motor

Name: Ie1 Aluminum Housing AC Electric Three Phase Motor
Brand: all-electronics-online.com
SKU: 721556722
Availability: InStock
Rating: 4.5 (88 reviews)

Price:	US $ 18.5/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	1HMA
Frame Size Range:	56-160
Output Power Range:	0.06kw-18.5kw
Frequency:	50/60Hz
Voltage:	220/380V, 380/660V, 230/400V, 400V/690V
Protection Class:	IP44, IP54, IP55
Insulation Class:	B/F/H
Installation Method:	B3, B5, B14, B35multi and Pad Mounting
Ambient Temperature:	-20~+40 °c
Duty:	S1
Number Of Stator:	Three-Phase
Function:	Driving
Number Of Poles:	2/4/6/8/10
Certification:	Ce & Saso
Brand:	Hongma

Product Description

Product Decription

HMA-IE1(EFF2)Series Three Phase Asynchronous Motor is the basic series of general-purpose motor with low voltage upgraded of Y series motor.The HMA Series Motors are enhanced performance motors built in light weight, all aluminum frames. HMA-IE1(EFF2)Series Motors with beautiful appearance and reliable operation meet to the needs of general-purpose at domestic and overseas within the range of frame size 56 to 160.

Technical Data

Frame Size	56--160
Housing Material	Aluminum
Rated Power	0.06KW-18.5KW
Pole	2,4,6
Frequency	50Hz/60Hz
Rated Voltage	220/380V, 380/660V, 230/400V, 400V/690V
Cooling Method	IC411
Duty	S1
Protection Class	IP44, IP54, IP55
Insulation Class	B,F,H
Mounting Type	B3, B5, B14, B35 multi and pad mounting

Package

Frame size under 132: packed by carton box, and then several pcs packed together in a wooden box.
Frame size above 160 : Only packed by a wooden box per set.

Our Certificate

Contact Info
Evan Zhou
Tel : 0086 574 55339278
Mob: 0086 15158307112
Web: www.hongmamotor.com;www.hongmamotor.net

Located in Ningbo City, an open seaport of China, we are one of the main manufacturer specialized in the manufacture of small & medium size electrical machinery in China. With a powerful scientific and technical force, advanced developing mode, high efficiency production facilities, complete testing conditions and consummate modernized management system, our company manufacture all the products in conformity with the IEC standards and the products have been reached the advanced level of the same products in the world. It has obtained the quality license for export electrical machinery, the ISO 9001: 2008 Quality Management Certificate, CE conformity and China CCC authentication. What's more, we have obtained direct importing and exporting rights which are approved by Chinese government.

Company's main products are: 1HM Series Three Phase Asynchronous Electric Motor, 2HM Series High Efficiency Electric Motor, 3HM Series Premium Efficiency Electric motor, HM Series Large Power Electric Motor, ML/MU/MY/MB Series Singe Phase Asynchronous Motor, HMD Variable Speed Motor, HMEJ(AC) Series Self-Braking Electric Motor (AC), HMEJ(DC) Series Self-Braking Electric Motor (DC), HMVP Series Integrated Frequency Inverter Motor, ST Series Servo Motor, HMG Series Screw Compressor Motor, HMP Series Pump Motor, GOST R standard Motor and UL NEMA Standard Motor.

We are looking for new distributors and agents in the whole worldwide to expand our sales network. Welcomes contact us to build business relationship and friendship.

Fenghua City Hongma Motor Co., Ltd.

Address: No. 4 Changhe North Road., Fangqiao, Fenghua, Ningbo, Zhejiang, China

Company Tel: +86 574 88650088

Sales Tel: +86-574-55339278

Fax: +86 574 88650988

Mob: +86 136 8583 1788

Website: HTTP: //www. Hongmamotor. Net
