| Prod Model: |
1HMI180L-8-11KW |
| Efficiency Class: |
Ie1 |
| Frame Size: |
H180L |
| Rated Power: |
11kw |
| Protection Class: |
IP44,IP54,IP54 |
| Frequency: |
50Hz, |
| Rated Voltage: |
220/380V,380/660V,230/400 |
| Insulation Class: |
B,F,H |
| Cooling Method: |
IC411 |
| Application: |
Power Tools |
| Operating Speed: |
High Speed |
| Number Of Stator: |
Three-Phase |
| Species: |
Y, Y2 Series Three-Phase |
| Casing Protection: |
Protection Type |
| Starting Mode: |
Auto-induction Voltage-reduced Starting |
| Certification: |
Ce |
| Brand: |
Hongma |
Product Description

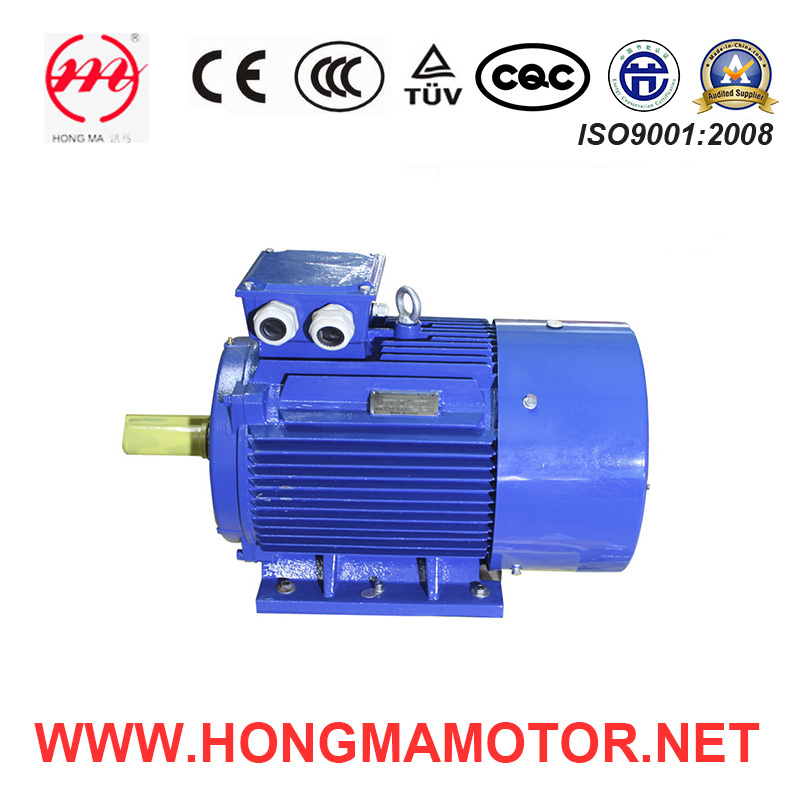

1HMI-IE1(EFF2) Series Cast Iron Housing Three Phase Asynchronous Motor
1HMI-IE1(EFF2) Series Three Phase Asynchronous Motor is the basic series of general-purpose motor with low voltage upgraded of Y series motor. HMI-IE1(EFF2) Series Motors with beautiful appearance and reliable operation meet to the needs of general-purpose at domestic and overseas within the range of frame size 71 to 355.
HMI-IE1(EFF2) Series Motors are designed of high efficiency, energy saving, high quality performance, small vibration, low noise, long life, high reliability, easy maintenance and large start torque, etc. The mounting dimension and power totally conform to IEC standard.
1HMI-IE1(EFF2) Series Cast Iron Housing Motor Characteristics and advantages:
Efficiency Class:IE1
Frame Size: H71-355
Poles: 2,4,6,8,10poles
Rated Power: 0.09-315KW
Rated Voltage: 220/380V,380/660V,230/400V,400V/690V
Frequency: 50HZ,60HZ
Protection Class: IP44,IP54,IP55, IP56
Insulation Class: B, F, H
Mounting Type:B3, B5, B35multi and pad mounting
Ambient Temperature: -20~+40 °C
Altitude: ≤1000M

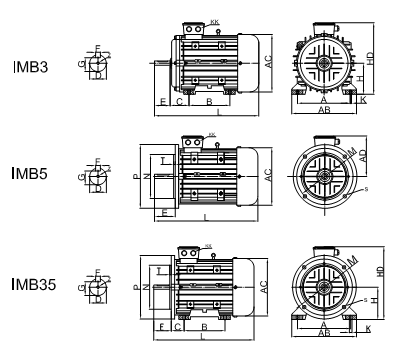

| TYPE | MOUNTING DIMENSIONS | OVERALL DIMENSIONS |
| EFF LEVEL | Frame | A | B | C | D | E | F | G | H | K | Z | KK | P | M | N | S | T | AB | AC | AD | HD | L |
| 1HMI-IE1 | 80M | 125 | 100 | 50 | 19 | 40 | 6 | 15.5 | 80 | 10 | M6×16 | 1-M20×1.5 | 200 | 165 | 130 | Ф12 | 3.5 | 152 | 153 | 122 | 202 | 290 |
| 1HMI-IE1 | 90S | 140 | 100 | 56 | 24 | 50 | 8 | 20 | 90 | 10 | M8×19 | 2-M20×1.5 | 200 | 165 | 130 | Ф12 | 3.5 | 168 | 172 | 135 | 225 | 315 |
| 1HMI-IE1 | 90L | 140 | 125 | 56 | 24 | 50 | 8 | 20 | 90 | 10 | M8×19 | 2-M20×1.5 | 200 | 165 | 130 | Ф12 | 3.5 | 168 | 172 | 135 | 225 | 340 |
| 1HMI-IE1 | 100L | 160 | 140 | 63 | 28 | 60 | 8 | 24 | 100 | 12 | M10×22 | 2-M20×1.5 | 250 | 215 | 180 | Ф15 | 4 | 192 | 193 | 145 | 245 | 370 |
| 1HMI-IE1 | 112M | 190 | 140 | 70 | 28 | 60 | 8 | 24 | 112 | 12 | M10×22 | 2-M25×1.5 | 250 | 215 | 180 | Ф15 | 4 | 222 | 223 | 165 | 277 | 395 |
| 1HMI-IE1 | 132S | 216 | 140 | 89 | 38 | 80 | 10 | 33.3 | 132 | 12 | M12×28 | 2-M25×1.5 | 300 | 265 | 230 | Ф15 | 4 | 248 | 265 | 208 | 340 | 470 |
| 1HMI-IE1 | 132M | 216 | 178 | 89 | 38 | 80 | 10 | 33.3 | 132 | 12 | M12×28 | 2-M25×1.5 | 300 | 265 | 230 | Ф15 | 4 | 248 | 265 | 208 | 340 | 500 |
| 1HMI-IE1 | 160M | 254 | 210 | 108 | 42 | 110 | 12 | 37 | 160 | 15 | M12×28 | 2-M40×1.5 | 350 | 300 | 250 | Ф19 | 5 | 315 | 330 | 260 | 420 | 605 |
| 1HMI-IE1 | 160L | 254 | 254 | 108 | 42 | 110 | 12 | 37 | 160 | 15 | M12×28 | 2-M40×1.5 | 350 | 300 | 250 | Ф19 | 5 | 315 | 330 | 260 | 420 | 680 |
Located in Ningbo City, an open seaport of China, we are one of the main manufacturer specialized in the manufacture of small & medium size electrical machinery in China. With a powerful scientific and technical force, advanced developing mode, high efficiency production facilities, complete testing conditions and consummate modernized management system, our company manufacture all the products in conformity with the IEC standards and the products have been reached the advanced level of the same products in the world. It has obtained the quality license for export electrical machinery, the ISO 9001: 2008 Quality Management Certificate, CE conformity and China CCC authentication. What's more, we have obtained direct importing and exporting rights which are approved by Chinese government.
Company's main products are: 1HM Series Three Phase Asynchronous Electric Motor, 2HM Series High Efficiency Electric Motor, 3HM Series Premium Efficiency Electric motor, HM Series Large Power Electric Motor, ML/MU/MY/MB Series Singe Phase Asynchronous Motor, HMD Variable Speed Motor, HMEJ(AC) Series Self-Braking Electric Motor (AC), HMEJ(DC) Series Self-Braking Electric Motor (DC), HMVP Series Integrated Frequency Inverter Motor, ST Series Servo Motor, HMG Series Screw Compressor Motor, HMP Series Pump Motor, GOST R standard Motor and UL NEMA Standard Motor.
We are looking for new distributors and agents in the whole worldwide to expand our sales network. Welcomes contact us to build business relationship and friendship.
