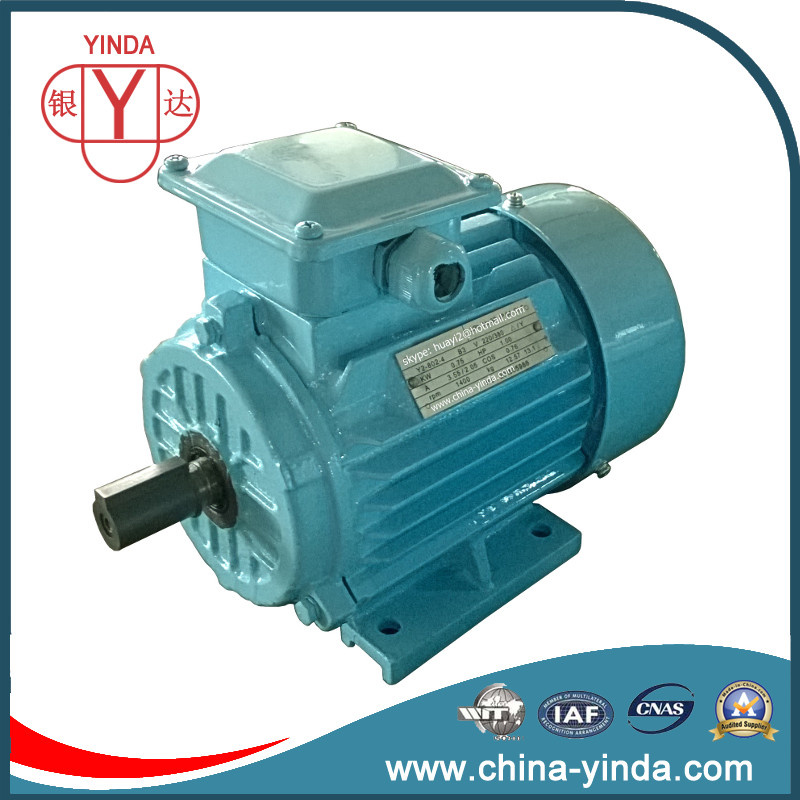

Ie2 - 0.75-200HP Three Phase AC Motor

Name: Ie2 - 0.75-200HP Three Phase AC Motor
Brand: all-electronics-online.com
SKU: 700378612
Availability: InStock
Rating: 4.6 (68 reviews)

Price:	US $ 27-30/Piece
Trade Terms:	FOB,CFR,EXW
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	YE2
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Power:	0.25-270HP
Frame Material:	Aluminum (63-132), Cast Iron (80-315)
Mounting Position:	B3/B5/B35/B14/B34
Voltage:	220/380/440/660V
Frequency:	50/60Hz
Cooling Method:	IC411
Continuous Working Method:	S1
Protection Class:	IP54
Insulation Grade:	F
Winding Protections:	PTC, PT100 and Kty84-130 as Option
Number Of Stator:	Three-Phase
Function:	Driving
Certification:	Ce

Product Description

3/4-270HP IE2 TEFC-Three-Phase Ac Motor

Brief introduction:
A) 100% output power with 100% copper winding;
B) OEM customer's requirement & customer's drawing;
C) Different size of flange to fit for different device, customized flange is workable.

Details:
1). Power: 0.25Hp-270Hp;
2). Frame: H63 to 315;
4). Pole: 2/4/6/8 poles;
5). Mounting arrangement: B3/B5/B14/B35/B34 or other;
6). Voltage: 220V, 380V, 400V, 415V, 440V or on request (50Hz or 60Hz);
7). Protection class: IP54 / IP55
8). Duty/Rating: S1 (Continuous);
9). Cooling method: IC411 (SELF-FAN cooling);
10). Insulation class: F;
11). Standard: (IEC) EN60034-1 & EN1060204-1.

Technical data

Type	Rated Output		Voltage	Frequency	Speed	Efficiency	Power factor	In	Is	Ts	Tmax	Nosie
Type	Kw	HP	V	Hz	r/min	%	CosΦ	A	In	Tn	Tn	Lw dB(A)
801-2	0.75	1	380	50	2825	75	0.83	1.8	6	2.2	2.3	67
802-2	1.1	1.5	380	50	2825	76.2	0.84	2.6	7	2.2	2.3	67
90S-2	1.5	2	380	50	2840	78.5	0.84	3.34	7	2.2	2.3	72
90L-2	2.2	3	380	50	2840	81	0.85	4.69	7	2.2	2.3	72
100L-2	3	4	380	50	2880	82.6	0.87	6.14	8	2.2	2.3	76
112M-2	4	5.5	380	50	2890	84.2	0.88	7.83	8	2.2	2.3	77
132S1-2	5.5	7.5	380	50	2900	85.7	0.88	10.7	8	2.2	2.3	80
132S2-2	7.5	10	380	50	2900	87	0.88	14.2	8	2.2	2.3	80
160M1-2	11	15	380	50	2930	88.4	0.89	20.9	8	2.2	2.3	86
160M-2	15	20	380	50	2930	89.4	0.89	27.9	8	2.2	2.3	86
160L-2	18.5	25	380	50	2930	90	0.9	33.9	8	2.2	2.3	86
180M-2	22	30	380	50	2940	90.5	0.9	40.5	8	2	2.3	89
200L1-2	30	40	380	50	2950	91.4	0.9	54.8	8	2	2.3	92
200L2-2	37	50	380	50	2950	92	0.9	66.6	8	2	2.3	92
225M-2	45	60	380	50	2970	92.5	0.9	81	8	2	2.3	92
250M-2	55	75	380	50	2970	93	0.9	99.6	8	2	2.3	93
280S-2	75	100	380	50	2970	93.6	0.9	133	8	2	2.3	94
280M-2	90	120	380	50	2970	93.9	0.91	158	8	2	2.3	94
315S-2	110	150	380	50	2980	94	0.91	195	7	1.8	2.2	96
315M-2	132	180	380	50	2980	94.5	0.91	232	7	1.8	2.2	96
315L1-2	160	220	380	50	2980	94.6	0.92	280	7	1.8	2.2	99
315L2-2	200	270	380	50	2980	94.8	0.92	348	7	1.8	2.2	99
801-4	0.55	0.8	380	50	1390	71	0.75	1.6	5	2.4	2.3	58
802-4	0.75	1	380	50	1390	73	0.76	2	6	2.3	2.3	58
90S-4	1.1	1.5	380	50	1400	76.2	0.77	2.8	6	2.3	2.3	61
90L-4	1.5	2	380	50	1400	78.5	0.79	3.65	6	2.3	2.3	61
100L1-4	2.2	3	380	50	1420	81	0.81	5.05	7	2.3	2.3	64
100L2-4	3	4	380	50	1420	82.6	0.82	6.64	7	2.3	2.3	64
112M-4	4	5.5	380	50	1440	84.2	0.82	8.62	7	2.3	2.3	65
132S-4	5.5	7.5	380	50	1440	85.7	0.83	11.5	7	2.3	2.3	71
132M-4	7.5	10	380	50	1440	87	0.84	15.3	7	2.3	2.3	71
160M-4	11	15	380	50	1460	88.4	0.84	22.2	7	2.2	2.3	75
160L-4	15	20	380	50	1460	89.4	0.85	29.8	8	2.2	2.3	75
180M-4	18.5	25	380	50	1470	90	0.86	36.1	8	2.2	2.3	76
180L-4	22	30	380	50	1470	90.5	0.86	42.6	8	2.2	2.3	76
200L-4	30	40	380	50	1480	91.4	0.86	57.2	7	2.2	2.3	79
225S-4	37	50	380	50	1480	92	0.87	69.6	7	2.2	2.3	81
225M-4	45	60	380	50	1480	92.5	0.87	84	7	2.2	2.3	81
250M-4	55	75	380	50	1480	93	0.87	103	7	2.2	2.3	83
280S-4	75	100	380	50	1480	93.6	0.87	138	7	2.2	2.3	86
280M-4	90	120	380	50	1485	93.9	0.87	166	7	2.2	2.3	86
315S-4	110	150	380	50	1485	94.5	0.88	200	7	2.1	2.2	93
315M-4	132	180	380	50	1485	94.8	0.88	239	7	2.1	2.2	93
315L1-4	160	220	380	50	1485	94.9	0.89	288	7	2.1	2.2	97
315L2-4	200	270	380	50	1485	94.9	0.89	359	7	2.1	2.2	97
801-6	0.37	0.5	380	50	900	62	0.7	1.3	5	1.9	2	54
802-6	0.55	0.8	380	50	900	65	0.72	1.8	5	1.9	2.1	54
90S-6	0.75	1	380	50	910	69	0.72	2.3	6	2	2.1	57
90L-6	1.1	1.5	380	50	910	72	0.73	3.2	6	2	2.1	57
100L-6	1.5	2	380	50	940	76	0.75	3.9	6	2	2.1	61
112M-6	2.2	3	380	50	940	79	0.76	5.6	7	2	2.1	65
132S-6	3	4	380	50	960	81	0.76	7.4	7	2.1	2.1	69
132M1-6	4	5.5	380	50	960	82	0.76	9.9	7	2.1	2.1	69
132M2-6	5.5	7.5	380	50	960	84	0.77	12.9	7	2.1	2.1	69
160M-6	7.5	10	380	50	970	86	0.77	16.9	7	2	2.1	73
160L-6	11	15	380	50	970	87.5	0.78	24	7	2	2.1	73
180L-6	15	20	380	50	970	89	0.81	32	7	2	2.1	73
200L1-6	18	25	380	50	970	90	0.81	39	7	2.1	2.1	76
200L2-6	22	30	380	50	970	90	0.83	45	7	2.1	2.1	76
225M-6	30	40	380	50	980	91.5	0.84	59	7	2	2.1	76
250M-6	37	50	380	50	980	92	0.86	71	7	2.1	2.1	78
280S-6	45	60	380	50	980	92.5	0.86	86	7	2.1	2	80
280M-6	55	75	380	50	980	92.8	0.86	105	7	2.1	2	80
315S-6	75	100	380	50	980	93.5	0.86	142	7	2	2	85
315M-6	90	120	380	50	985	93.8	0.86	170	7	2	2	85
315L1-6	110	150	380	50	985	94	0.86	207	7	2	2	85
315L2-6	132	180	380	50	985	94.2	0.87	245	7	2	2	85
801-8	0.18	0.3	380	50	690	51	0.61	0.9	3	1.8	1.9	52
802-8	0.25	0.3	380	50	690	54	0.61	1.2	3	1.8	1.9	52
90S-8	0.37	0.5	380	50	690	62	0.61	1.5	4	1.8	1.9	56
90L-8	0.55	0.8	380	50	690	63	0.61	2.2	4	1.8	2	56
100L1-8	0.75	1	380	50	700	71	0.67	2.4	4	1.8	2	59
100L2-8	1.1	1.5	380	50	700	73	0.69	3.3	5	1.8	2	59
112M-8	1.5	2	380	50	700	75	0.69	4.4	5	1.8	2	61
132S-8	2.2	3	380	50	710	78	0.71	6	6	1.8	2	64
132M-8	3	4	380	50	710	79	0.73	7.9	6	1.8	2	64
160M1-8	4	5.5	380	50	720	81	0.73	10.3	6	2	2	68
160M2-8	5.5	7.5	380	50	720	83	0.74	13.6	6	2	2	68
160L-8	7.5	10	380	50	720	85.5	0.75	17.8	6	2	2	68
180L-8	11	15	380	50	720	87.5	0.76	24.9	7	2	2	70
200L-8	15	20	380	50	730	88	0.76	34	7	2	2	73
225S-8	18.5	25	380	50	730	90	0.76	41	7	1.9	2	73
225M-8	22	30	380	50	730	90.5	0.78	47	7	1.9	2	73
250M-8	30	40	380	50	730	91	0.79	63	7	1.9	2	75
280S-8	37	50	380	50	730	91.5	0.79	78	7	1.9	2	76
280M-8	45	60	380	50	740	92	0.79	94	7	1.9	2	76
315S-8	55	75	380	50	740	92.8	0.81	111	7	1.8	2	82
315M-8	75	100	380	50	740	93	0.81	151	7	1.8	2	82
315L1-8	90	120	380	50	740	93.8	0.82	178	7	1.8	2	82
315L2-8	110	150	380	50	740	94	0.82	217	6	1.8	2	82

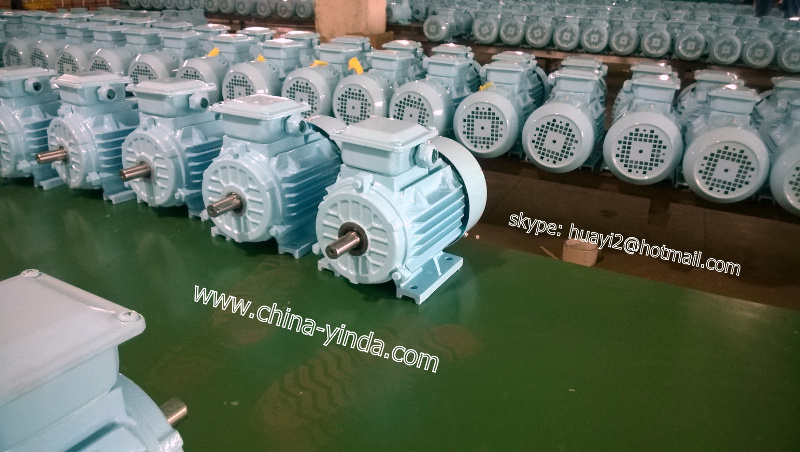

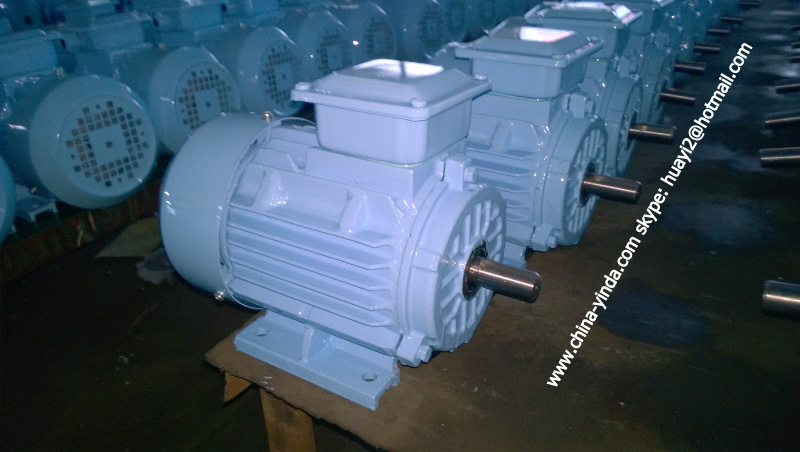

Photos:

Yinda located in Wenling city of Zhejiang provice, which is 15 minutes driving from Wenling Train Station.

Establised in 1988 and renamed in 2003, Zhejiang Yinda Machine Electricity Co., Ltd. Engaged in developing reliable motors, as well as welding machine and scrao wire stripping machines to satisfying the market.

Our products:

1. Electric Motors:

Single-phase AC motor, (including Capacitor start & run motor, capacitor run motor, capacitor start motor, resistance start motor) ML, MC, MY, YL, YC, YY, YU, YCL

Three-phase Electric motor, IE3, IE2

Three-Phase double speed motor, YD series

Electromagnetic Brake AC Motor YEJ/Y2EJ series

Change Speed Frequency Vataible Inverter Duty Motor YVP/YVF2 series

Custom motors are available.

2. Kinds of recycling equipment such as Scrap Wire stripping machine & Motor reccycling machine

3. Welding Machines:

MMA inverter Welding, ZX7 series

TIG Welding

MIG Welding

BX1 series AC Arc Welding

Bx6 Series AC Arc Welding

Bx6 series stainless body welding

Bx series wooden leg welding
