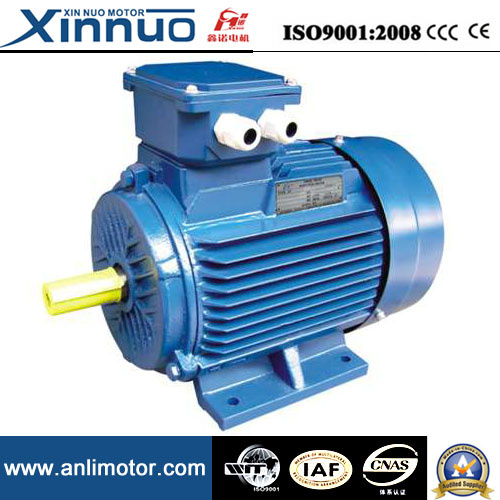

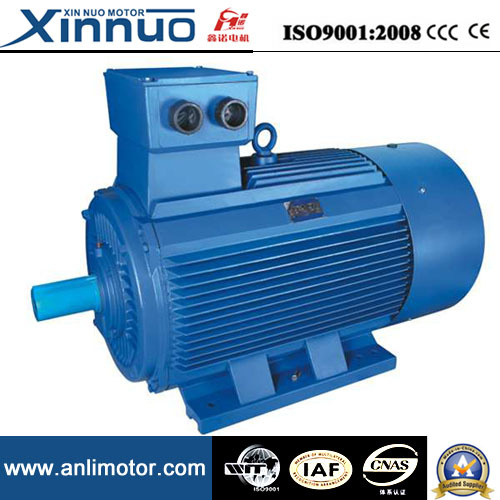

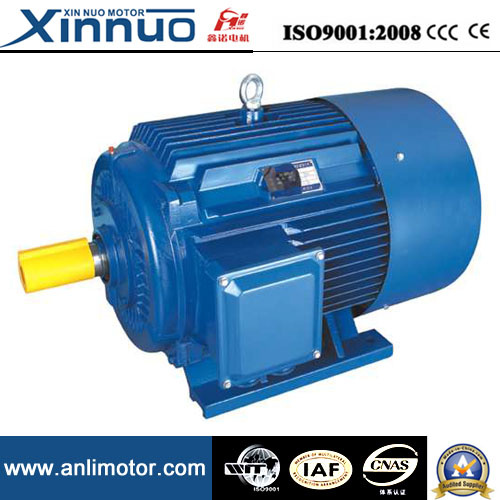

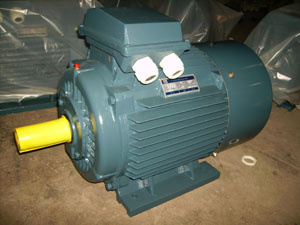

Ie2 (CE) Y2 Three Phase Induction Motor (Y2-160-4)

Name: Ie2 (CE) Y2 Three Phase Induction Motor (Y2-160-4)
Brand: all-electronics-online.com
SKU: 641004225
Availability: InStock
Rating: 4.8 (35 reviews)

Price:	US $ 1-250/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	Y2-160m-4
Markets:	South America,Eastern Europe,Southeast Asia,Mid East,Eastern Asia,Western Europe
Application:	Industrial
Operating Speed:	Constant Speed
Number Of Stator:	Three-Phase
Species:	Y, Y2 Series Three-Phase
Rotor Structure:	Squirrel-Cage
Casing Protection:	Closed Type
Starting Mode:	Direct on-line Starting

Product Description

Applications: General purpose including cutting, machine, pumps, fans, conveyors, machine tools of farm duty and foodprocess
Features: High efficiency and energy saving, low noise and little vibration. F insulation class, IP54 or IP55 protection class
Circumstance for use: The altitude not exceeding 1000m above sea level. The ambient temperature subject to seasonal variations but exceeding +40 centidegree and no less than -15 centidegree...

Technical parameter:

Output (KW)	Type	Amps (A)	Speed (R/min)	Eff. %	p.f.	RT N.m				Noise LwdB (A)	Weight (Kg)
380V 50HZ 2P
0.18	Y2-631-2	0.5	2800	65.0	0.80	00.61	2.2	2.2	5.5	61	14
0.25	Y2-632-2	0.7	2800	68.0	0.81	0.96	2.2	2.2	5.5	61	14.5
0.37	Y2-711-2	1.0	2800	70.0	0.81	1.26	2.2	2.2	6.1	64	15
0.55	Y2-712-2	1.4	2800	73.0	0.82	1.88	2.2	2.3	6.1	64	15.5
0.75	Y2-801-2	1.8	2825	75.0	0.83	2.54	2.2	2.3	6.1	67	16.5
1.1	Y2-802-2	2.6	2825	77.0	0.84	3.72	2.2	2.3	7.0	67	17.5
1.5	Y2-90S-2	3.4	2840	79.0	0.84	5.04	2.2	2.3	7.0	72	21
2.2	Y2-90L-2	4.9	2840	81.0	0.85	7.40	2.2	2.3	7.0	72	25
3	Y2-100L-2	6.3	2880	83.0	0.87	9.95	2.2	2.3	7.5	76	33
4	Y2-112M-2	8.1	2890	85.0	0.88	13.22	2.2	2.3	7.5	77	41
5.5	Y2-132S1-2	11.0	2900	86.0	0.88	18.11	2.2	2.3	7.5	80	63
7.5	Y2-132S2-2	14.9	2900	87.0	0.88	24.70	2.2	2.3	7.5	80	70
11	Y2-160M1-2	21.3	2930	88.0	0.89	35.85	2.2	2.3	7.5	86	110
15	Y2-160M2-2	28.8	2930	89.0	0.89	48.89	2.2	2.3	7.5	86	120
18.5	Y2-160L-2	34.7	2930	90.5	0.90	60.30	2.2	2.3	7.5	86	135
22	Y2-180M-2	41.0	2940	91.2	0.90	71.46	2.0	2.3	7.5	89	165
30	Y2-200L1-2	55.5	2950	92.0	0.90	97.12	2.0	2.3	7.5	92	218
37	Y2-200L2-2	67.9	2950	92.3	0.90	119.78	2.0	2.3	7.5	92	230
45	Y2-225M-2	82.3	2970	92.3	0.90	144.70	2.0	2.3	7.5	92	280
55	Y2-250M-2	100.4	2970	92.5	0.90	176.85	2.0	2.3	7.5	93	365
75	Y2-280S-2	134.4	2970	93.2	0.91	241.16	2.0	2.3	7.5	94	495
90	Y2-280M-2	160.2	2970	93.8	0.91	289.39	2.0	2.3	7.5	94	565
110	Y2-315S-2	195.4	2980	94.0	0.91	352.51	1.8	2.2	7.1	96	890
132	Y2-315M-2	233.2	2980	94.5	0.91	423.02	1.8	2.2	7.1	96	980
160	Y2-315L1-2	279.3	2980	94.6	0.92	512.75	1.8	2.2	7.1	99	1055
200	Y2-315L2-2	348.4	2980	94.8	0.92	640.94	1.8	2.2	7.1	99	1110
250	Y2-355M-2	433.2	2985	95.3	0.92	799.83	1.6	2.2	7.1	103	1900
315	Y2-355L-2	544.2	2985	95.6	0.92	1007.79	1.6	2.2	7.1	103	2300
380V 50HZ 4P
0.12	Y2-631-4	0.4	1400	57.0	0.72	0.82	2.1	2.2	4.4	52	13
0.18	Y2-632-4	0.6	1400	60.0	0.73	1.23	2.1	2.2	4.4	52	13.5
0.25	Y2-711-4	0.8	1400	65.0	0.74	1.71	2.1	2.2	5.2	55	14
0.37	Y2-712-4	1.1	1400	67.0	0.75	2.54	2.1	2.2	5.2	55	14.5
0.55	Y2-801-4	1.6	1390	71.0	0.75	3.78	2.4	2.3	5.2	58	15
0.75	Y2-802-4	2.0	1490	73.0	0.77	5.15	2.4	2.3	6.0	58	16
1.1	Y2-90S-4	2.0	1400	75.0	0.77	7.50	2.3	2.3	6.0	61	23
1.5	Y2-90L-4	3.7	1420	78.0	0.79	10.23	2.3	2.3	6.0	61	25
2.2	Y2-100L1-4	5.2	1420	80.0	0.81	14.80	2.3	2.3	7.0	64	33
3.	Y2-100L2-4	6.8	1420	82.0	0.82	20.18	2.3	2.3	7.0	64	35
4.	Y2-112M-4	8.8	1440	84.0	0.82	26.53	2.3	2.3	7.0	65	41
5.5	Y2-132S-4	11.8	1440	85.0	0.83	36.48	2.3	2.3	7.0	71	65
7.5	Y2-132M-S	15.6	1440	87.0	0.84	49.74	2.2	2.3	7.0	71	76
11	Y2-160M-4	22.3	1460	88.0	0.85	71.59	2.2	2.3	7.0	75	118
15	Y2-160L-4	30.1	1460	89.0	0.85	98.12	2.2	2.3	7.5	75	132
18.5	Y2-180M-4	36.5	1470	90.5	0.85	120.19	2.2	2.3	7.5	76	164
22	Y2-1180L-4	43.2	1470	91.0	0.85	142.93	2.2	2.3	7.5	76	182
30	Y2-200L-4	57.6	1480	92.0	0.86	193.68	2.2	2.3	7.2	79	245
37	Y2-225S-4	69.9	1480	92.5	0.87	238.87	2.2	2.3	7.2	81	258
45	Y2-225M-4	84.7	1480	92.8	0.87	290.37	2.2	2.3	7.2	81	290
55	Y2-250M-4	103.3	1480	93.0	0.87	354.90	2.2	2.3	7.2	83	388
75	Y2-280S-4	139.6	1480	93.8	0.87	483.95	2.2	2.3	7.2	86	510
90	Y2-280M-4	166.9	1485	94.2	0.87	578.79	2.2	2.3	7.2	86	606
110	Y2-315S-4	201.0	1485	94.5	0.88	707.41	2.1	2.2	6.9	93	910
132	Y2-315M-4	240.4	1485	94.8	0.88	848.89	2.1	2.2	6.9	93	1000
160	Y2-315L1-4	287.8	1485	94.9	0.89	1028.96	2.1	2.2	6.9	97	1055
200	Y2-315L2-4	359.4	1485	95.0	0.89	1286.20	2.1	2.2	6.9	97	1128
250	Y2-355M-4	442.9	1490	95.3	0.90	1602.35	2.1	2.2	6.9	101	1700
315	Y2-355L-4	556.2	1490	95.6	0.90	2018.96	2.1	2.2	6.9	101	1900
380V 50HZ 6P
0.18	Y2-711-6	0.8	900	56.0	0.60	1.91	1.9	2.0	4.0	52	14
0.25	Y2-711-6	0.9	900	59.0	0.68	2.65	1.9	2.0	4.0	52	14.5
0.37	Y2-801-6	1.3	900	62.0	0.70	3.93	1.9	2.0	4.7	54	15
0.55	Y2-802-6	1.8	900	65.0	0.72	5.84	1.9	2.1	4.7	54	16
0.75	Y2-90S-6	2.3	910	69.0	0.72	7.87	2.0	2.1	5.5	57	19
1.1	Y2-90L-6	3.2	910	72.0	0.73	11.54	2.0	2.1	5.5	57	22
1.5	Y2-100L-6	3.9	940	76.0	0.76	15.24	2.0	2.1	5.5	61	32
2.2	Y2-112M-6	5.6	940	79.0	0.76	22.35	2.1	2.1	6.5	65	41
3	Y2-132S-6	7.4	960	81.0	0.76	29.84	2.1	2.1	6.5	69	63
4	Y2-132M1-6	9.9	960	82.0	0.76	39.79	2.1	2.1	6.5	69	72
5.5	Y2-132M-6	12.9	960	84.0	0.77	54.71	2.1	2.1	6.5	69	81
7.5	Y2-160M-6	16.9	970	86.0	0.78	73.84	2.0	2.1	6.5	73	118
11	Y2-160L-6	24.2	970	87.5	0.79	108.30	2.0	2.1	6.5	73	145
15	Y2-180L-6	31.6	970	89.0	0.81	147.68	2.1	2.1	7.0	73	178
18.5	Y2-200L1-6	38.6	970	90.0	0.81	182.14	2.1	2.1	7.0	76	200
22	Y2-200L2-6	44.7	970	90.0	0.83	216.60	2.1	2.1	7.0	76	228
30	Y2-225M-6	59.3	980	91.5	0.84	292.35	2.0	2.1	7.0	76	265
37	Y2-250M-6	71.1	980	92.0	0.86	360.56	2.1	2.1	7.0	78	370
45	Y2-280S-6	85.9	980	92.5	0.86	438.52	2.1	2.0	7.0	80	490
55	Y2-280M-6	104.7	980	92.8	0.86	535.97	2.1	2.0	7.0	80	540
75	Y2-315S-6	141.7	980	93.5	0.86	730.87	2.0	2.0	7.0	85	900
90	Y2-315M-6	169.5	985	93.8	0.86	872.59	2.0	2.0	7.0	85	980
110	Y2-315L1-6	206.7	985	94.0	0.86	1066.50	2.0	2.0	6.7	85	1045
132	Y2-315L2-6	244.7	985	94.2	0.87	1279.80	2.0	2.0	6.7	85	1100
160	Y2-355M1-6	292.3	990	94.5	0.88	1543.43	1.9	2.0	6.7	92	1440
200	Y2-355M2-6	364.6	990	94.7	0.88	1929.29	1.9	2.0	6.7	92	1600
250	Y2-355L-6	454.8	990	94.9	0.88	2411.62	1.9	2.0	6.7	92	1700

We changed our company name to Wenling Xinnuo Electric Motor Co., Ltd. is advanced enterprise specializing in all type of MID-size and small-size electric motors, electric machines. The products include Y and Y2 series three-phase asynchronous, MS series three-phase asynchronous motor with aluminium housing, YO2 series three-phase asynchronous motor, YL series monophase machine, YD series multispeed machine, YCT series electromagnetic ajustable-speed motor, frequency adjustable-speed motor and fractional electric motor, YEJ2 series electromagnetic-brake motor, DSM and M50/4 single-phase resistant start asynchronous motors, etc.

Our management system has been assessed and passed the ISO 9001: 2000 Certificate, our products have got the CCEE, CCC, CQC and CE certificates, moreover we are putting efforts to apply the approvals by UL, CSA, CE. The enterprise has the self-supporting import & export right.

With our high Quality, favorable price and excellent service, we are willing to cooperate with the friends in all circles to circles to create the flourishing future.
