Ie2/Ie3 High Efficiencey Three Phase Electric Induction Motor
| Price: |
US $ 50-10000/Piece |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
YE2/YE3 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Output Power: |
0.18kw-375kw |
| Efficiency: |
Ie3, Ie2 |
| Structure: |
Squirrel Cage Cast Iron Shell Asynchronous Motor |
| Winding: |
100% Red Copper |
| Protection: |
IP44, IP54, IP55, IP56 |
| Driving: |
Compressor, Pump, Fan, Blower, Crusher, etc |
| Voltage: |
380V, 415V, 400V, or as Required |
| Cooling Method: |
IC411, IC410 |
| Application: |
Industrial |
| Operating Speed: |
Constant Speed |
| Number Of Stator: |
Three-Phase |
| Rotor Structure: |
Squirrel-Cage |
| Casing Protection: |
Closed Type |
| Starting Mode: |
Soft Starter |
| Species: |
Ye2, Ye3 |
| Number Of Poles: |
2, 4, 6, 8 |
| Certification: |
CE |
| Brand: |
China Electric |
Product Description
YE2/YE3 asychronous three phase induction motor
YE2/YE3 asychronous three phase induction motorare based on the latest efficiency level of IEC60034-30. They are mainly used for machine tools, air blower/ ventilator, pump, compressor, transport machinery, construction machinery, etc.
* Features:
a. High efficiency (IE2, IE3)
b. Low noise and low vibration
c. compact structure
d. easy maintenance
e. Class F insulation, class B temperature rise.
e. comply with IEC60034-30, IEC60034-2, efficiency comply with GB18613-2012.
* Operation conditions:
1. Rated power: 0.18Kw~375Kw
2. Poles: 2, 4, 6, 8
3. Frame size: 80mm~355mm
4. Power supply: 380V/50Hz, or as customers' required ( 220V~760V, 50/60Hz)
5. Cooling method: IC411, totally enclosed fan cooled
6. Connection: Y(start) for 3Kw and below, Δ(delta) for over 3Kw
7. Duty: S1, continuous
8. Ambient temperature: -15- 40ºC
9. Altitude: =< 1000m;
10. Mounting: B3, B5,B35, B34,B14, B6, B7, B8
V1, V3, V5, V6, V15, V36, V18, V19
* Model explaination
For example (YE2-80M1-2)
YE2 : code for series (YE2--IE2 efficiency AC asychronous motor, YE3--IE3 efficiency AC asychronous motor );
80: Frame size 80mm;
M : code for core length
2 : code for pole number

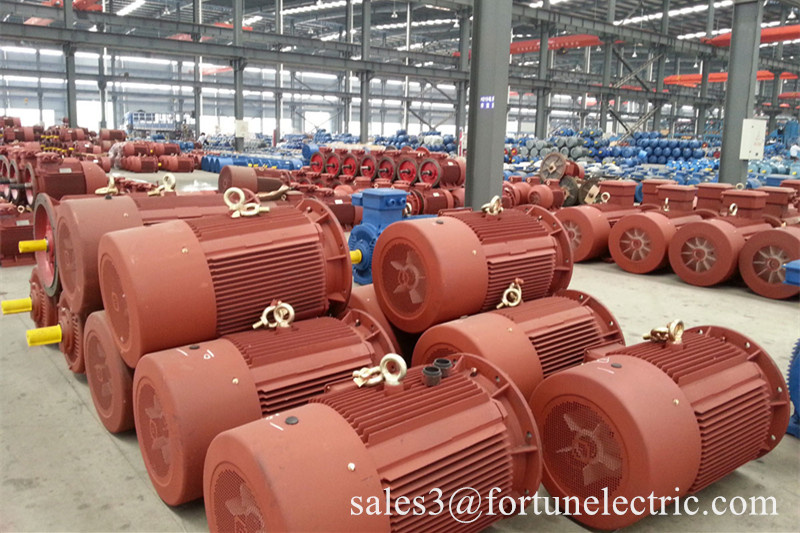

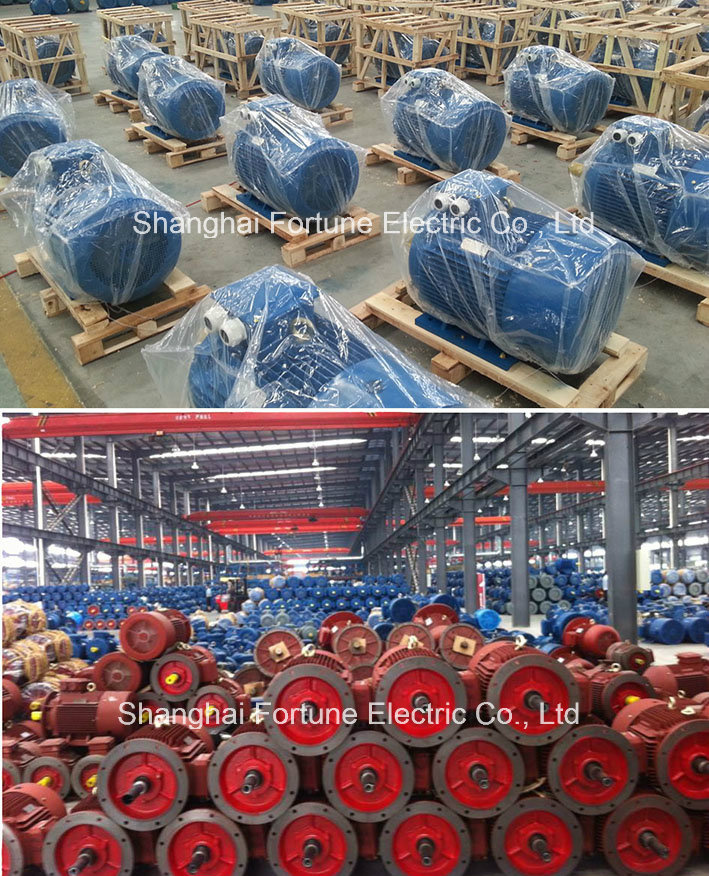

The warehouse
Technical parameter:
For 380/50Hz, YE2 series motor only.| Type | Power | Current | Speed | Eff. | Power factor | Tst/Tn | Tmax/Tn | Ist/In |
| (Kw) | (A) | (r/min) | (%) |
| YE2-80M1-2 | 0.75 | 1.8 | 2865 | 77.4 | 0.82 | 2.3 | 2.3 | 6.8 |
| YE2-80M2-2 | 1.1 | 2.5 | 2880 | 79.6 | 0.83 | 2.3 | 2.3 | 7.1 |
| YE2-80M-4 | 0.75 | 1.9 | 1435 | 79.6 | 0.76 | 2.3 | 2.3 | 6.4 |
| YE2-90S-2 | 1.5 | 3.3 | 2900 | 81.3 | 0.84 | 2.3 | 2.3 | 7.3 |
| YE2-90L-2 | 2.2 | 4.7 | 2900 | 83.2 | 0.85 | 2.3 | 2.3 | 7.6 |
| YE2-90S-4 | 1.1 | 2.7 | 1435 | 81.4 | 0.77 | 2.3 | 2.3 | 6.6 |
| YE2-90L-4 | 1.5 | 3.5 | 1440 | 82.8 | 0.78 | 2.3 | 2.3 | 6.7 |
| YE2-90S-6 | 0.75 | 2.1 | 950 | 75.9 | 0.71 | 2 | 2.1 | 5.8 |
| YE2-90L-6 | 1.1 | 3 | 950 | 78.1 | 0.72 | 2 | 2.1 | 5.9 |
| YE2-100L-2 | 3 | 6.2 | 2900 | 84.6 | 0.87 | 2.2 | 2.3 | 7.8 |
| YE2-100L1-4 | 2.2 | 5 | 1450 | 84.3 | 0.8 | 2.3 | 2.3 | 7.3 |
| YE2-100L2-4 | 3 | 6.6 | 1450 | 85.5 | 0.81 | 2.3 | 2.3 | 7.5 |
| YE2-100L-6 | 1.5 | 4 | 950 | 79.8 | 0.72 | 2 | 2.1 | 5.9 |
| YE2-112M-2 | 4 | 8 | 2910 | 85.8 | 0.88 | 2.2 | 2.3 | 8.1 |
| YE2-112M-4 | 4 | 8.7 | 1455 | 86.6 | 0.81 | 2.3 | 2.3 | 7.5 |
| YE2-112M-6 | 2.2 | 5.7 | 955 | 81.8 | 0.72 | 2 | 2.1 | 6.2 |
| YE2-132S1-2 | 5.5 | 10.9 | 2920 | 87 | 0.88 | 2.2 | 2.3 | 8.2 |
| YE2-132S2-2 | 7.5 | 14.5 | 2920 | 88.1 | 0.89 | 2.2 | 2.3 | 7.8 |
| YE2-132S-4 | 5.5 | 11.6 | 1460 | 87.7 | 0.82 | 2 | 2.3 | 7.5 |
| YE2-132M-4 | 7.5 | 15.5 | 1460 | 88.7 | 0.83 | 2 | 2.3 | 7.3 |
| YE2-132S-6 | 3 | 7.6 | 970 | 83.3 | 0.72 | 2 | 2.1 | 6.4 |
| YE2-132M1-6 | 4 | 9.7 | 970 | 84.6 | 0.74 | 2 | 2.1 | 6.6 |
| YE2-132M2-6 | 5.5 | 13 | 970 | 86 | 0.75 | 2 | 2.1 | 6.8 |
| YE2-160M1-2 | 11 | 21 | 2942 | 89.4 | 0.89 | 2.2 | 2.3 | 7.9 |
| YE2-160M2-2 | 15 | 28.4 | 2942 | 90.3 | 0.89 | 2.2 | 2.3 | 7.9 |
| YE2-160L-2 | 18.5 | 34.7 | 2942 | 90.9 | 0.89 | 2.2 | 2.3 | 8 |
| YE2-160M-4 | 11 | 22.4 | 1470 | 89.8 | 0.83 | 2 | 2.3 | 7.4 |
| YE2-160L-4 | 15 | 30 | 1470 | 90.6 | 0.84 | 2 | 2.3 | 7.5 |
| YE2-160M-6 | 7.5 | 16.8 | 976 | 87.2 | 0.78 | 2 | 2.1 | 6.8 |
| YE2-160L-6 | 11 | 23.9 | 976 | 88.7 | 0.79 | 2 | 2.1 | 6.9 |
| YE2-180M-2 | 22 | 41.1 | 2960 | 91.3 | 0.89 | 2.2 | 2.3 | 8.1 |
| YE2-180M-4 | 18.5 | 36.3 | 1475 | 91.2 | 0.85 | 2 | 2.3 | 7.6 |
| YE2-180L-4 | 22 | 42.9 | 1475 | 91.6 | 0.85 | 2.1 | 2.3 | 7.7 |
| YE2-180L-6 | 15 | 31 | 980 | 89.7 | 0.82 | 2 | 2.1 | 7.3 |
| YE2-200L1-2 | 30 | 55.7 | 2965 | 92 | 0.89 | 2 | 2.3 | 7.5 |
| YE2-200L2-2 | 37 | 68.3 | 2965 | 92.5 | 0.89 | 2 | 2.3 | 7.5 |
| YE2-200L-4 | 30 | 58.1 | 1475 | 92.3 | 0.85 | 2.1 | 2.3 | 7.1 |
| YE2-200L1-6 | 18.5 | 38.9 | 980 | 90.4 | 0.8 | 2 | 2.1 | 7.2 |
| YE2-200L2-6 | 22 | 45.4 | 980 | 90.9 | 0.81 | 2 | 2.1 | 7.3 |
| YE2-225M-2 | 45 | 82.7 | 2965 | 92.9 | 0.89 | 2.2 | 2.3 | 7.5 |
| YE2-225S-4 | 37 | 70.5 | 1480 | 92.7 | 0.86 | 2.1 | 2.3 | 7.3 |
| YE2-225M-4 | 45 | 85.4 | 1480 | 93.1 | 0.86 | 2.2 | 2.3 | 7.3 |
| YE2-225M-6 | 30 | 60.6 | 985 | 91.7 | 0.82 | 2 | 2.1 | 6.8 |
| YE2-250M-2 | 55 | 100.7 | 2970 | 93.2 | 0.89 | 2.2 | 2.3 | 7.6 |
| YE2-250M-4 | 55 | 103.9 | 1480 | 93.5 | 0.86 | 2.2 | 2.3 | 7.3 |
| YE2-250M-6 | 37 | 73.5 | 980 | 92.2 | 0.83 | 2 | 2.1 | 7 |
| YE2-280S-2 | 75 | 136.5 | 2975 | 93.8 | 0.89 | 1.8 | 2.3 | 6.9 |
| YE2-280M-2 | 90 | 163.3 | 2975 | 94.1 | 0.89 | 1.8 | 2.3 | 6.9 |
| YE2-280S-4 | 75 | 139.3 | 1485 | 94 | 0.87 | 2.2 | 2.3 | 6.8 |
| YE2-280M-4 | 90 | 165 | 1485 | 94.2 | 0.88 | 2.2 | 2.3 | 6.9 |
| YE2-280S-6 | 45 | 86.8 | 985 | 92.7 | 0.85 | 2 | 2 | 7.2 |
| YE2-280M-6 | 55 | 104.4 | 985 | 93.1 | 0.86 | 2 | 2 | 7.2 |
| YE2-315S-2 | 110 | 196.9 | 2975 | 94.3 | 0.9 | 1.8 | 2.2 | 7 |
| YE2-315M-2 | 132 | 235.6 | 2975 | 94.6 | 0.9 | 1.8 | 2.2 | 7 |
| YE2-315L1-2 | 160 | 281.8 | 2975 | 94.8 | 0.91 | 1.8 | 2.2 | 7.1 |
| YE2-315L2-2 | 200 | 351.5 | 2975 | 95 | 0.91 | 1.8 | 2.2 | 7.1 |
| YE2-315S-4 | 110 | 198.7 | 1480 | 94.5 | 0.89 | 2.1 | 2.2 | 6.9 |
| YE2-315M-4 | 132 | 238 | 1480 | 94.7 | 0.89 | 2.1 | 2.2 | 6.9 |
| YE2-315L1-4 | 160 | 284.6 | 1480 | 94.9 | 0.9 | 2.1 | 2.2 | 6.9 |
| YE2-315L2-4 | 200 | 355 | 1480 | 95.1 | 0.9 | 2.1 | 2.2 | 6.9 |
| YE2-315S-6 | 75 | 144.8 | 985 | 93.7 | 0.84 | 2 | 2 | 6.5 |
| YE2-315M-6 | 90 | 171.1 | 985 | 94 | 0.85 | 2 | 2 | 6.6 |
| YE2-315L1-6 | 110 | 208.5 | 985 | 94.3 | 0.85 | 2 | 2 | 6.6 |
| YE2-315L2-6 | 132 | 246.5 | 985 | 94.6 | 0.86 | 2 | 2 | 6.6 |
| YE2-355M1-2 | 220 | 391 | 2980 | 95 | 0.9 | 1.6 | 2.2 | 7.1 |
| YE2-355M2-2 | 250 | 439.4 | 2980 | 95 | 0.91 | 1.6 | 2.2 | 7.1 |
| YE2-355L1-2 | 280 | 487 | 2980 | 95 | 0.92 | 1.6 | 2.2 | 7.1 |
| YE2-355L2-2 | 315 | 547.6 | 2980 | 95 | 0.92 | 1.6 | 2.2 | 7.2 |
| YE2-355M1-4 | 220 | 390.5 | 1490 | 95.1 | 0.9 | 2.1 | 2.2 | 6.9 |
| YE2-355M2-4 | 250 | 443.8 | 1490 | 95.1 | 0.9 | 2 | 2.2 | 6.9 |
| YE2-355L1-4 | 280 | 497 | 1490 | 95.1 | 0.9 | 2.1 | 2.2 | 6.9 |
| YE2-355L2-4 | 315 | 559.2 | 1490 | 95.1 | 0.9 | 2 | 2.2 | 6.9 |
| YE2-355M1-6 | 160 | 294.8 | 990 | 94.8 | 0.87 | 2 | 2 | 6.8 |
| YE2-355M2-6 | 185 | 340.8 | 990 | 94.8 | 0.87 | 1.9 | 2 | 6.8 |
| YE2-355M3-6 | 200 | 371.9 | 990 | 95 | 0.86 | 2 | 2 | 6.8 |
| YE2-355L1-6 | 220 | 404.4 | 990 | 95 | 0.87 | 2 | 2 | 6.8 |
| YE2-355L3-6 | 250 | 464.9 | 990 | 95 | 0.86 | 2 | 2 | 6.8 |
| YE2-3551-2 | 355 | 623.9 | 2980 | 95 | 0.91 | 1.6 | 2.2 | 7.2 |
| YE2-3552-2 | 375 | 659.1 | 2980 | 95 | 0.91 | 1.6 | 2.2 | 7.2 |
| YE2-3551-4 | 355 | 637.3 | 1490 | 95.1 | 0.89 | 1.7 | 2.2 | 6.5 |
| YE2-3552-4 | 375 | 680.8 | 1490 | 95.1 | 0.88 | 1.7 | 2.2 | 6.5 |
| YE2-3551-6 | 280 | 520.7 | 990 | 95 | 0.86 | 2 | 2.2 | 6.8 |
| YE2-3552-6 | 315 | 585.8 | 990 | 95 | 0.86 | 2 | 2.2 | 6.8 |
Certificate:
China ELECTRIC, Shanghai FORTUNE ELECTRIC Co., Ltd. is located in Shanghai China. It has employees more than 1000. Its factory is about 30, 000~50, 000 square meters. It passed ISO 9001: 2008. All its products passed CE Certificate for European Union, UL and CSA for North America, GOST for Russia and SONCAP for Nigeria.
China ELECTRIC is qualified to issue Form E Certificate of Origin for ASEAN customers, China-Pakistan FTA Certificate of Origin and all Preferential Certificate of Origin for Peru, Chile, India, Bangladesh and Sri Lanka. It also permitted to issue CIQ Certificate of Pre-shipment Inspection for exporting to Africa, such as Egypt.
China ELECTRIC is specialized in manufacturing and exporting electrical machines. Its main products are as below:
GW-JJ series aluminum shell mechanical tilting coreless medium frequency induction melting furnace, induction holding furnace;
GWG-J (GW-J) series steel shell hydraulic tilting coreless medium frequency induction melting furnace, induction holding furnace;
HX series electric steel-making arc furnace;
LF series ladle refinery furnace;
Continuous casting machine, CCM;
Z2, Z4 series DC motor;
Z series medium/large size DC motor;
ZYZJ series DC motor for sugarcane mill;
ZJJ800 series DC motor for rolling mill auxiliary drive
ZFQZ series frequently starting/braking DC Motor
ZSN4 series DC Motor for driving cement rotary kiln
Y, Y2, YKK, YKS series medium/large size squirrel-cage motor;
YR, YRKK, YRKS series medium/large size wound rotor slip ring motor;
YLS, YLKK, YLKS, YLST, YLKKT, YLKST series vertical type medium/large size squirrel-cage motor;
VHS series IEC standard Vertical hollow shaft motor;
OHS series NEMA standard Vertical hollow shaft motor;
China ELECTRIC is one of the biggest manufacturer and exporter for medium frequency induction melting furnace, high voltage motor and DC motor.
Customer satisfaction is the mission of China ELECTRIC. Professional, timely and careful is the basic essence and work attitude of China ELECTRIC's every member.
Thanks to the competitiveness both in quality, service and price, China ELECTRIC's products are distributed to most of the countries and regions around the world, such as Bulgaria, Croatia, Romania, Slovenia, Turkey, Armenia, Azerbaijan, Ukraine, Kazakhstan, Uzbekistan, Russia, Iran, Dubai, Yemen, Saudi Arabia, Egypt, Nigeria, South Africa, Pakistan, Sri Lanka, Mexico, Chile, Peru, Bolivia, Uruguay, Argentina, Australia, Singapore, Malaysia, Vietnam, Thailand, Indonesia, Philippines and etc. China ELECTRIC warmly welcomes both former and new customers to further develop business relationship and partnership for prosperous futures.
