| Application: |
Industrial |
| Operating Speed: |
Constant Speed |
| Number Of Stator: |
Three-Phase |
| Species: |
Y, Y2 Series Three-Phase |
| Rotor Structure: |
Winding Type |
| Casing Protection: |
Protection Type |
| Starting Mode: |
Direct on-line Starting |
Product Description

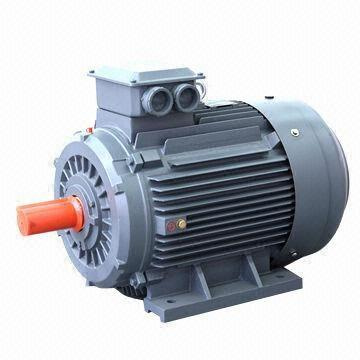

Name: IE2 series machine tools efficiency induction motor
Product Description YE2, YE3 series high efficiency motors are made according to national minimum allowable values of energy efficiency and energy efficiency grades for small and medium three-phase asynchronous motors GB18613-2012. motors are totally enclosed fan cooled squirrel cage and adopting with new materials new processing methods and new safety design technology. This series motors can be widely use in various kinds of general use machineries like fans, pumps, machine tools, compressors, transportation and so on, and can also be used in the hazardous areas with oil and chemical, steel paints, mining industry. YE2 series motor is IP55 protection degree class and F insulation . The motors are the entirely refreshed generation products with better structure, lower noise, lower vibration and so on. | Standard: | JB/T11707-2013,IEC60034-30 |
| Frame size: | H80-355mm |
| Rated power: | 0.75kW-375kW |
| Degrees of energy efficiency: | IE2,Grade 3 |
| Voltage and frequency: | 380V/ 50Hz |
| Degrees of protections: | IP55 |
| Degrees of insulation/Temperature rise: | F/B |
| Installation Method: | B3,B5,B35,V1 |
| Ambient temperature: | -15ºC~+40ºC |
| Relative humidity | less than 90% |
| Altitude | lower than 1000 m above sea level |
| Cooling Method: | IC411 |
Advantages of efficiency motorThe advantages of high efficiency motors are as follows:- reducing consumption and costs of electricity- reduction in engine overheating and consequent increase in the life of the insulation, grease lubrication of bearings of the motor- higher yields with reduced loads, being the constant loss more small- greater ability to withstand voltage fluctuations and imbalances of power supply- more advantages in applications powered by inverter.

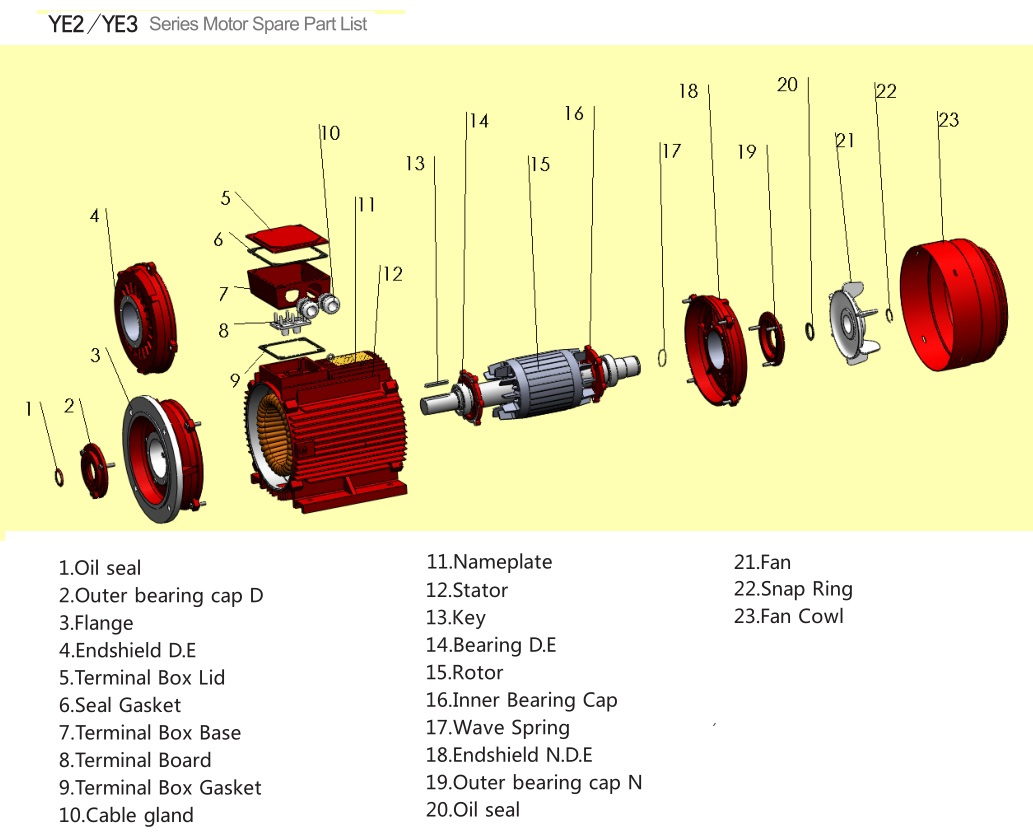

Service We can design and produce special motors as followed according to therequirement of customer:1. special voltage, frequency and power;2. special insulation class and protection class;3. with terminal box on the left side, double shaft ends and special shaft;4. high temperature motor or low temperature motor;5. used on plateau or outdoor;6. higher power or special service factor;7. with heater, PT100 for bearings or winding, PTC and so on;8. with others requirement.Spare parts list

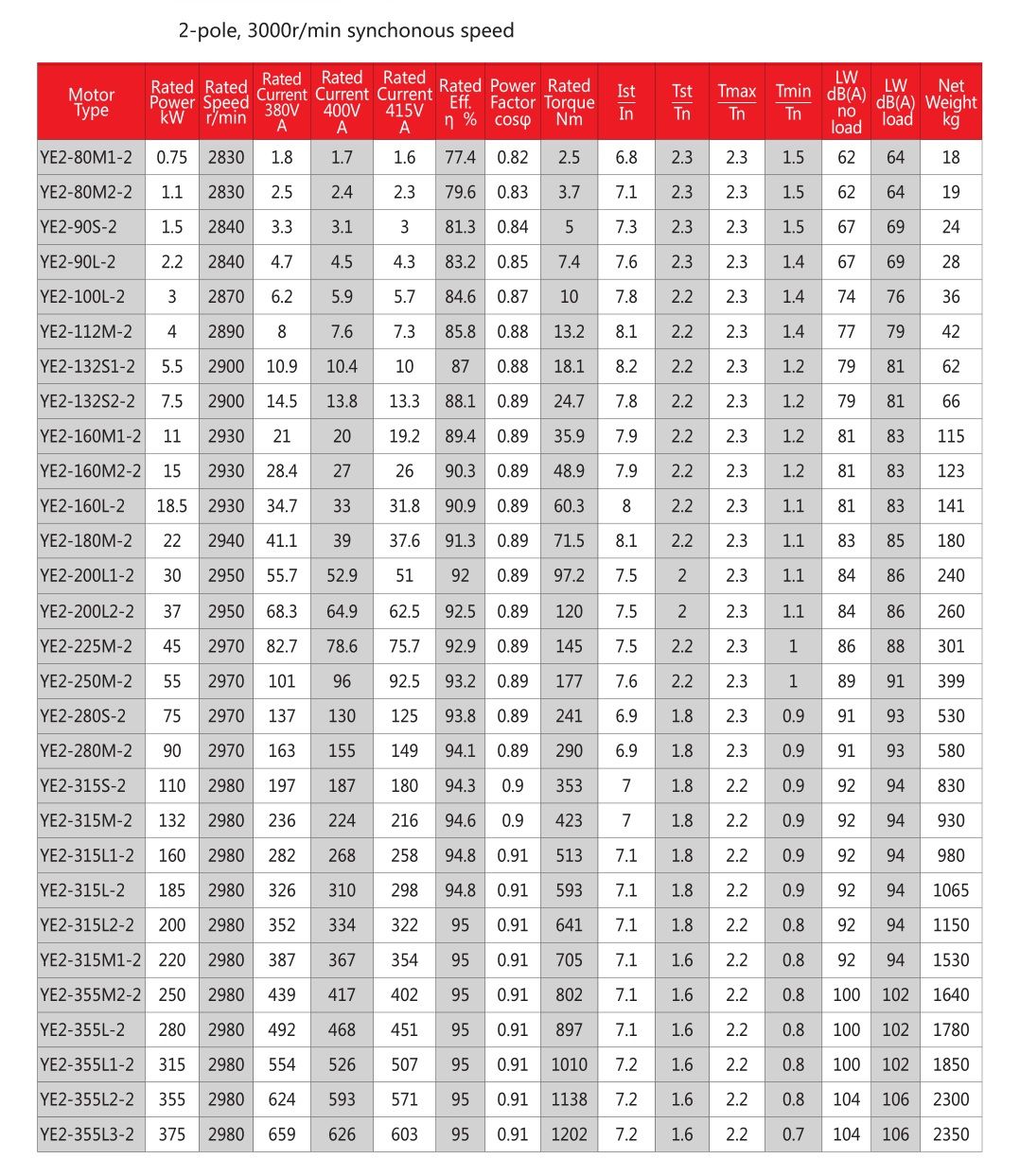

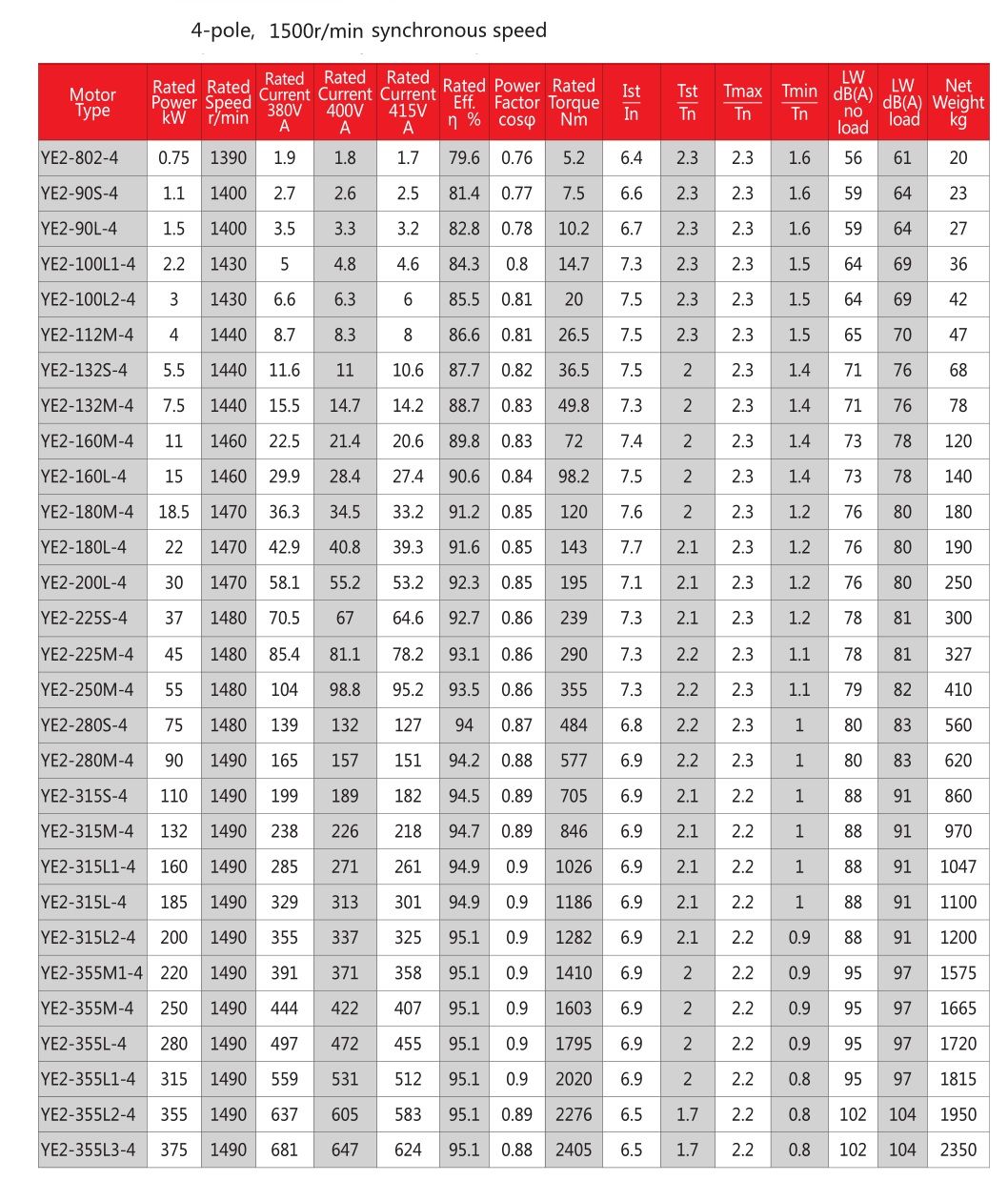

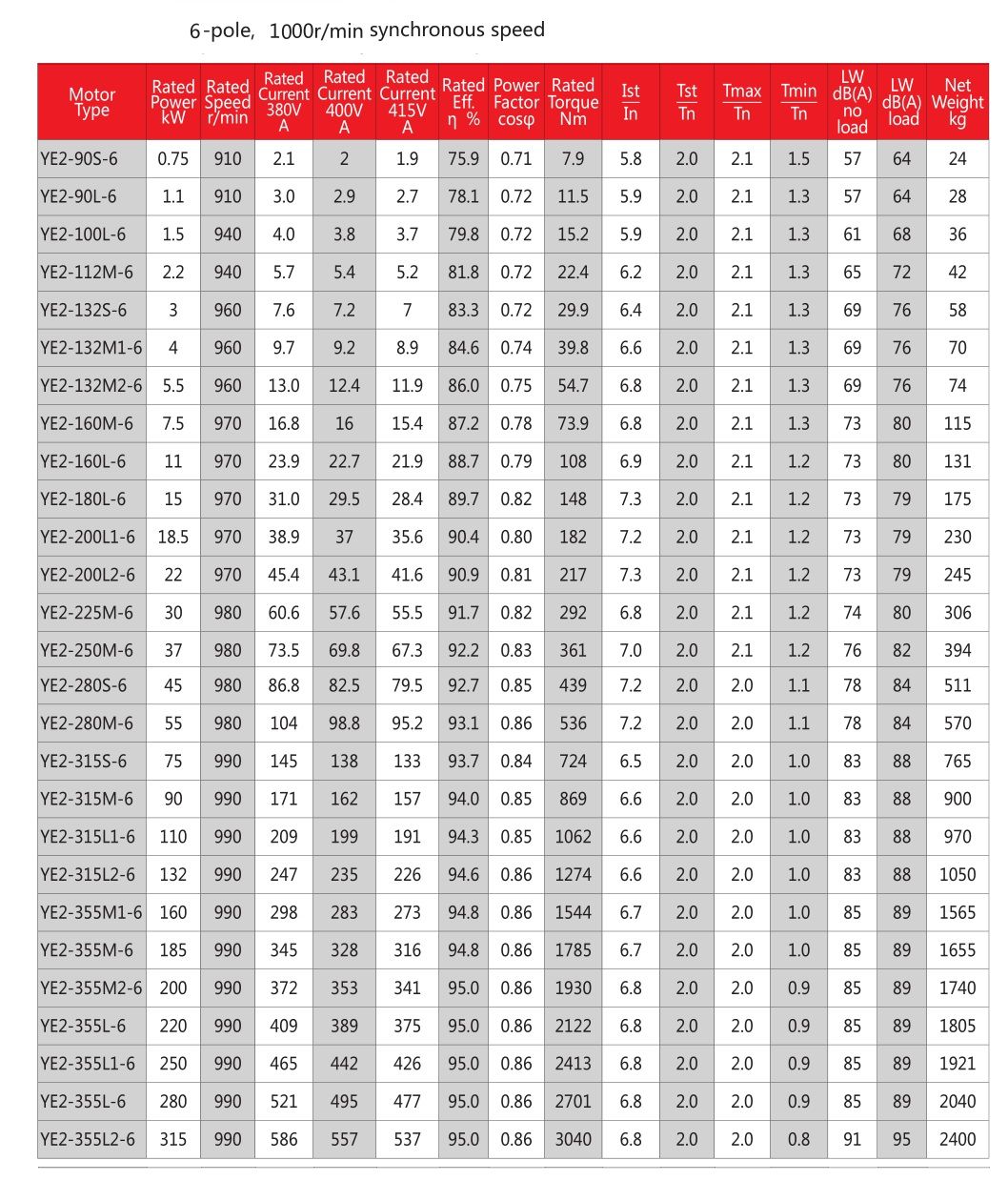

Technical data

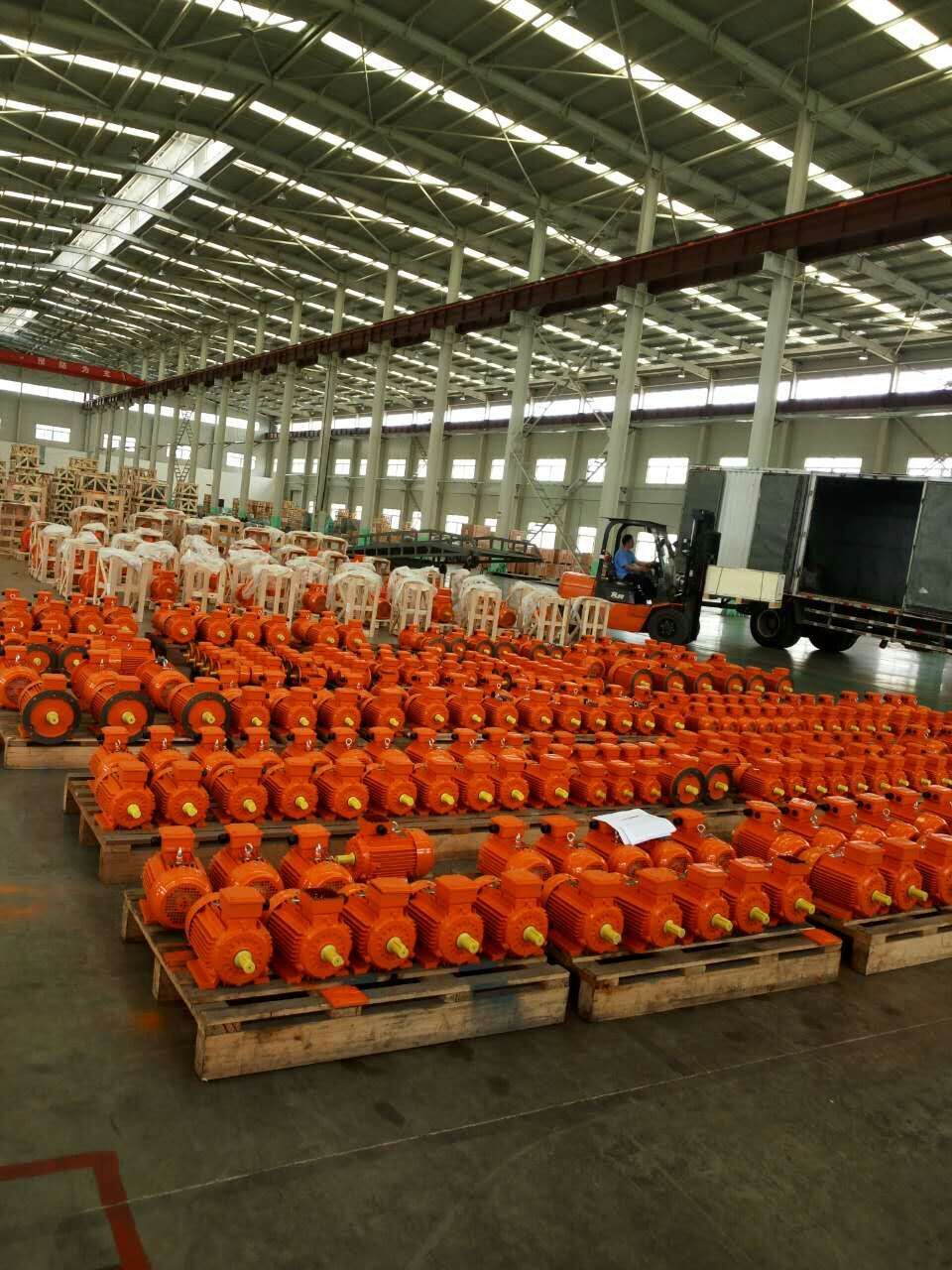

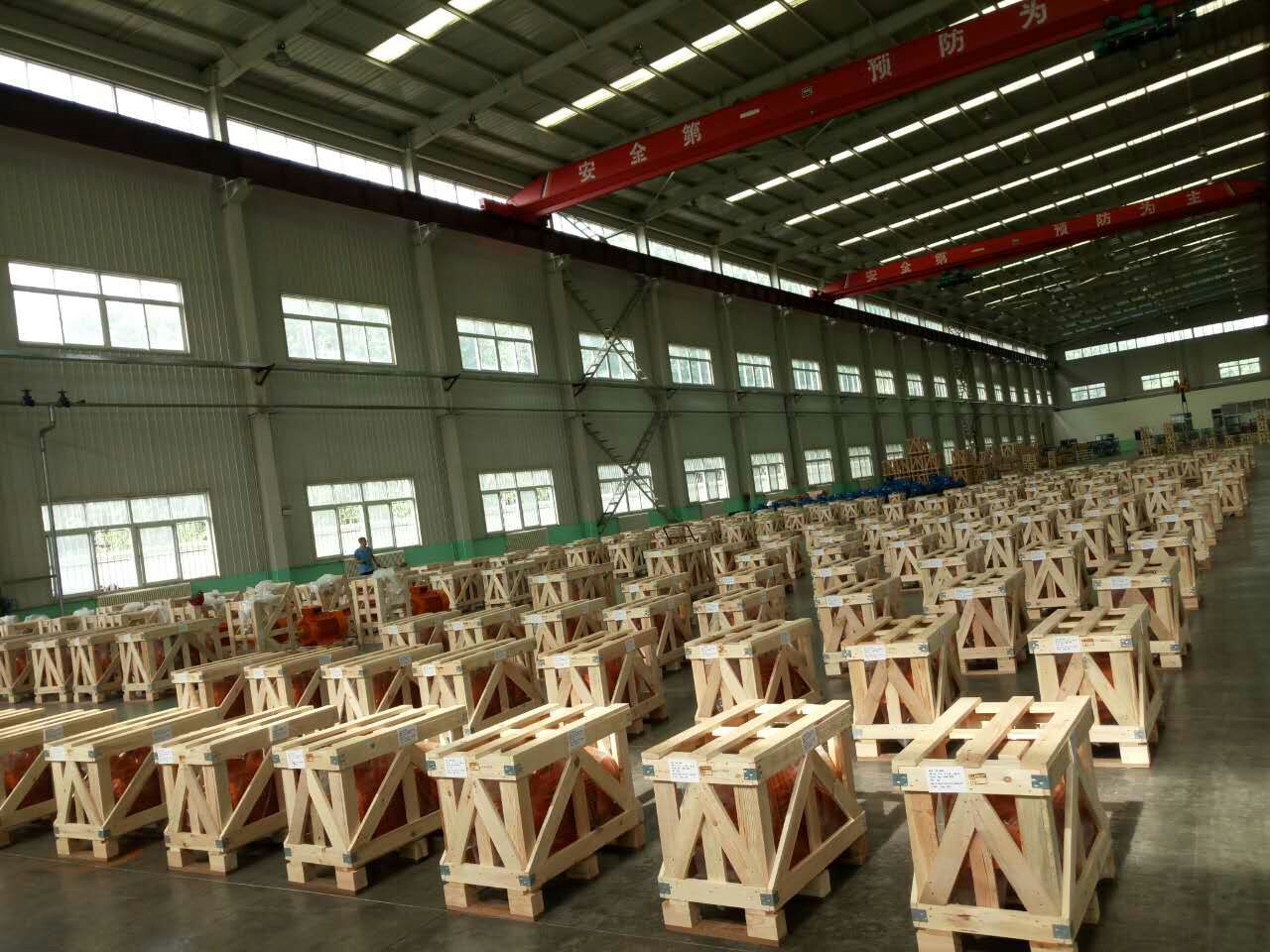

Workshop Vew
