Sanhe Electrical (Fujian) Co., Ltd. >> Ie2 Standard B3 Foot Mounted Induction Motor for Sale

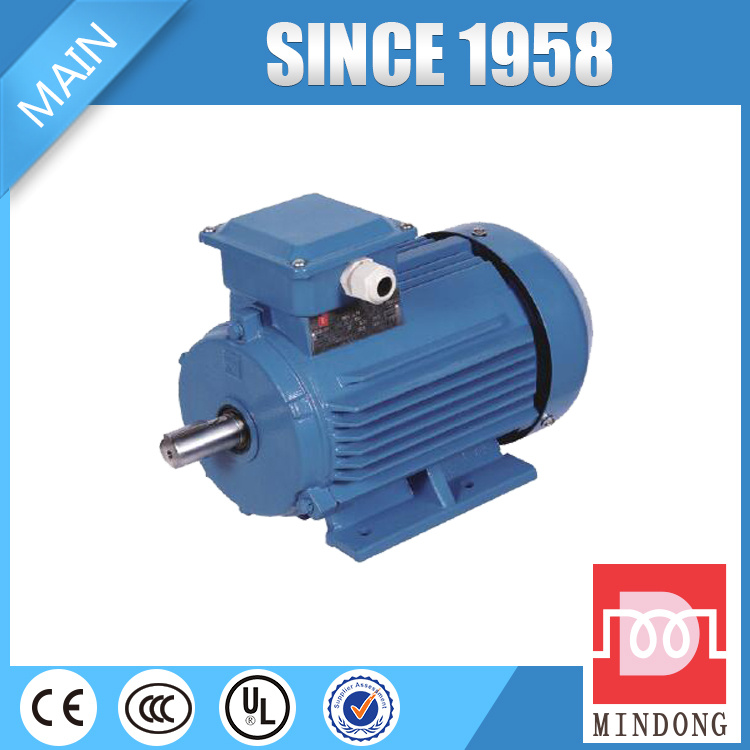

Ie2 Standard B3 Foot Mounted Induction Motor for Sale

Ie2 Standard B3 Foot Mounted Induction Motor for Sale
Price: US $ 33-36/Piece
Min Order: 10/Piece
Pay Type: L/C,T/T,D/P
Prod Model: EM
Power Range: 0.75kw-200kw
Rated Voltage: 220V/380V/660V
Rated Frequency: 50Hz/60Hz
Protection Grade: IP44/IP54/IP55
Insulation Class: B/F
Cooling Method: IC411/IC416
Duty: S1
HS Code: 8501520000
Rotor Structure: Squirrel-Cage
Mounting Type: B3/B5/B35/B14/B34/V1
Number Of Stator: Three-Phase
Function: Driving
Number Of Poles: 2/4/6
Certification: Roth/UL/Ce
Brand: Mingdong

Product Description

Production Description

The EM series high efficiency three phase induction motor is new generation high efficiency
energy motor, the efficiency indicators conform to energy grade 3 0f standard GB18613-2012, and
manufactured with new material and technology.



The EM series high efficiency three phase induction motor are totally enclosed fan cooled
squirrel cage motor, rated voltage:380V,reted frequency:50h-1z, duty : continuous(S1), center
height:H80-H355,output:0.55W-355kW, ploe:2\4\6, IP55, cooling method:IC411, and have notable
advantages such as high efficiency, good performance, low temperature rise. low noise, improved
structure. durable, etc. lf user could keep the duty cycle above 75%,the effect of saving energy is
distinct.



The EM series high efficiency three phase induction motor be used for general motors and can
be used to drive all kinds of general purpose machines such as compressors, ventilators, pumps,
and used such as petol chemical, medical, chemical industries, ect.
The efficiency levels defined in IEC 60034-30 are based on test methods specified in IEC
60034-2-1:2007







MINDONG ELECTRIC was established in 1958. Over the past 50 years, we adhere to the business principles of "Lived with quality, Developed with varieties, Benefited with management", create this national famous brand.

Our company has been granted the state awards in 1979. MINDONG brand ST series generator has won the national gold medals three times successively in 1979, 1984 and 1989. It's the only product to be honored in the domestic machinery industry. In 1980, we MINDONG brand trademark obtain the national famous trademark.

In the independent research of new products, there are over 50 by the national ministries and provincial identification, there are 13 item reached the international advanced level, 16 items are the first and leading in China. Many of new products and technologies obtained national patents. A variety of products have been granted the title of high quality products by Fujian province and Ministry. The company has a history of twenty years in development and production of rare earth permanent magnet electric machines. FXT series rare earth three phase spinning & weaving synchronous motors was awarded a gold medal at China's new product technology exposition. By applying of the "863 Program" major project results, we developed the Efficient and Energy Saving Product-the XYT series rare earth permanent magnets three phase synchronous motor. The result was approved by the Department of Science and Technology in Fujian Province and Fujian Province Economic and Trade Commission new product identification in 2002. The overall performances reached the international advanced level and the leading level in domestic field. And our MINDONG brand products have been awarded as "Famous products of Fujian Province". MINDONG brand products have passed ISO9001, CE, CCC, UL, TUV etc attestation.

The main products are: Small and medium-sized generators, motors, fractional horsepower motors, water pumps, diesel (gasoline) generator sets, electric-controlled equipments, rare earth permanent magnet motors etc.

Our company offer wholehearted service to clients at home and abroad, and sincerely provide a wide variety of efficient energy saving MINDONG brand electrical products.
