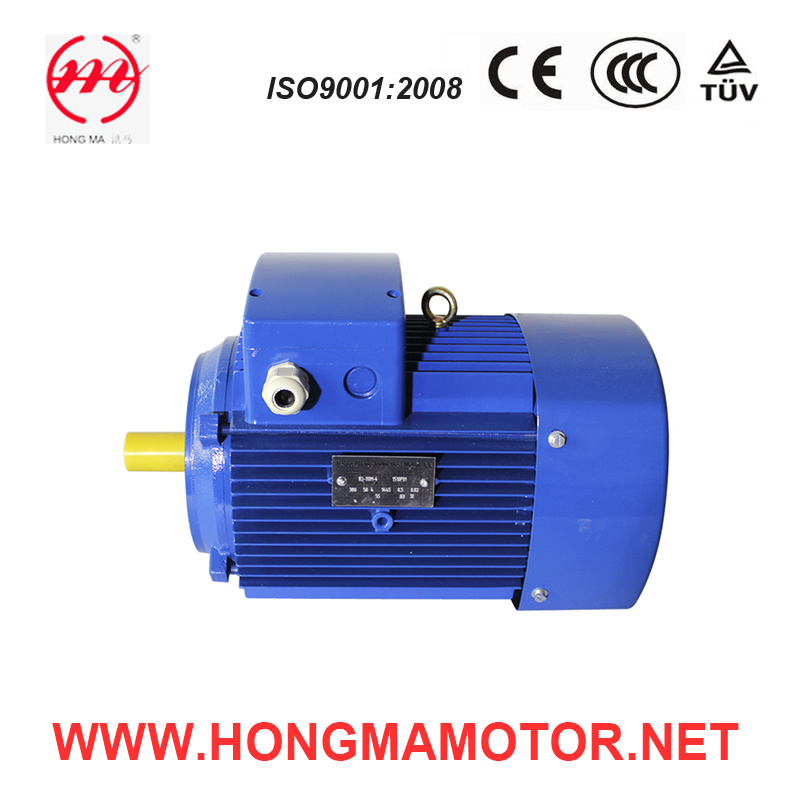

| Prod Model: |
HMP112M-2-4KW |
| Frame Size Range: |
H112 |
| Rated Power Range: |
4kw |
| Frequency: |
50Hz, 60Hz |
| Rated Voltage: |
220/380V, 380/660V, 230/400V, 400V/690V |
| Protection Class: |
IP55 |
| Insulation: |
F |
| Efficiency Class: |
Ie3 |
| Installation Method: |
B5, B14 |
| Operating Speed: |
Constant Speed |
| Number Of Stator: |
Three-Phase |
| Species: |
Y, Y2 Series Three-Phase |
| Rotor Structure: |
Squirrel-Cage |
| Casing Protection: |
Closed Type |
| Starting Mode: |
y-δ Starting |
| Application: |
Water Pump |
| Certification: |
Ce&C390-93, UL & Saso |
| Brand: |
Hongma |
Product Description
Production Description
HMP series three-phase asynchronous electric motors, is developed as a new design of our company based on the characteristics of water pumps. HMP series motors with unique apperance, IP55 protection degree, class F insulation, and a good function of enery saving can reach high efficiency class in line with international standard IE2, IE3 and China's GB2&GB3, which has made it an ideal energy saving product. Moreover, it has other good features like high starting torque, slight noise, low vibration, optimum structure, convenient operation and so on. In order to solve problems like high torque, vibration and noise in pumps, we use cast iron material for all front flange and rear endshield in our new HMP motors, and this improvement can completely meet the application of various types of pumps.
Technical Data
| | | | | | | | | | |
| | | | | | |
/ | / | / | |
Type |
Output |
Speed |
Efficiency | Power factor |
Rated current A | | | |
KW |
HP |
r/min | at 100%
load |
at 75% load |
at 50% load |
COSΦ |
380 |
400 |
415 |
Is/In |
Ts/Tn | |
Kg |
| IE2 TECHNICAL DATA(SPEED 3000RPM 2-POLE 50HZ) |
| HMP | 801-2 | 0.75 | 1 | 2875 | 77.4 | 77.7 | 75.5 | 0.83 | 1.77 | 1.68 | 1.62 | 6.8 | 2.3 | 2.3 | 10.2 |
| HMP | 802-2 | 1.1 | 1.5 | 2875 | 79.6 | 79.9 | 77.6 | 0.84 | 2.5 | 2.37 | 2.29 | 7.3 | 2.3 | 2.3 | 12.1 |
| HMP | 90S-2 | 1.5 | 2 | 2890 | 81.3 | 81.6 | 79.7 | 0.84 | 3.32 | 3.16 | 3.04 | 7.6 | 2.3 | 2.3 | 16.5 |
| HMP | 90L-2 | 2.2 | 3 | 2890 | 83.2 | 83.5 | 81.5 | 0.85 | 4.72 | 4.48 | 4.32 | 7.8 | 2.3 | 2.3 | 22.3 |
| HMP | 100L-2 | 3 | 4 | 2890 | 84.6 | 84.9 | 82.9 | 0.87 | 6.17 | 5.86 | 5.65 | 8.1 | 2.3 | 2.3 | 21.2 |
| HMP | 112M-2 | 4 | 5.5 | 2914 | 85.8 | 86.1 | 84.1 | 0.88 | 8.04 | 7.64 | 7.36 | 8.3 | 2.3 | 2.3 | 31.4 |
| HMP | 132S1-2 | 5.5 | 7.5 | 2937 | 87.0 | 87.3 | 85.3 | 0.86 | 11.2 | 10.6 | 10.2 | 8.0 | 2.2 | 2.3 | 39.4 |
| HMP | 132S2-2 | 7.5 | 10 | 2940 | 88.1 | 88.5 | 86.3 | 0.88 | 14.6 | 13.9 | 13.4 | 7.8 | 2.2 | 2.3 | 54.1 |
| HMP | 160M1-2 | 11 | 15 | 2930 | 89.4 | 89.8 | 87.6 | 0.89 | 21.0 | 19.9 | 19.2 | 7.9 | 2.2 | 2.3 | 82.1 |
| HMP | 160M2-2 | 15 | 20 | 2930 | 90.3 | 90.7 | 88.5 | 0.89 | 28.4 | 26.9 | 26.0 | 8.0 | 2.2 | 2.3 | 96.3 |
| HMP | 160L-2 | 18.5 | 25 | 2937 | 90.9 | 91.3 | 89.1 | 0.89 | 34.7 | 33.0 | 31.8 | 8.1 | 2.2 | 2.3 | 107 |
| IE3 TECHNICAL DATA |
| SPEED 3000RPM 2-POLE 50HZ |
| HMP | 801-2 | 0.75 | 1 | 2880 | 80.7 | 80.7 | 79.1 | 0.83 | 1.7 | 1.62 | 1.56 | 2.49 | 2.3 | 2.3 | 11.6 |
| HMP | 802-2 | 1.1 | 1.5 | 2880 | 82.7 | 82.7 | 81.0 | 0.83 | 2.43 | 2.31 | 2.23 | 3.65 | 2.3 | 2.3 | 12.6 |
| HMP | 90S-2 | 1.5 | 2 | 2895 | 84.2 | 84.2 | 82.5 | 0.83 | 3.26 | 3.1 | 2.99 | 4.95 | 2.3 | 2.3 | 17.7 |
| HMP | 90L-2 | 2.2 | 3 | 2895 | 85.9 | 85.9 | 84.2 | 0.85 | 4.58 | 4.35 | 4.19 | 7.26 | 2.3 | 2.3 | 20.4 |
| HMP | 100L-2 | 3 | 4 | 2895 | 87.1 | 87.1 | 85.4 | 0.88 | 5.95 | 5.65 | 5.45 | 9.9 | 2.3 | 2.3 | 23.7 |
| HMP | 112M-2 | 4 | 5.5 | 2905 | 88.1 | 88.1 | 86.3 | 0.88 | 7.84 | 7.45 | 7.18 | 13.1 | 2.3 | 2.3 | 30.2 |
| HMP | 132S1-2 | 5.5 | 7.5 | 2930 | 89.2 | 89.2 | 87.4 | 0.88 | 10.6 | 10.1 | 9.75 | 17.9 | 2.2 | 2.3 | 52.9 |
| HMP | 132S2-2 | 7.5 | 10 | 2930 | 90.1 | 90.1 | 88.3 | 0.88 | 14.4 | 13.7 | 13.2 | 24.4 | 2.2 | 2.3 | 71.2 |
| HMP | 160M1-2 | 11 | 15 | 2945 | 91.2 | 91.2 | 89.4 | 0.90 | 20.4 | 19.3 | 18.6 | 35.7 | 2.2 | 2.3 | 111 |
| HMP | 160M2-2 | 15 | 20 | 2945 | 91.9 | 91.9 | 90.1 | 0.91 | 27.3 | 25.9 | 24.9 | 48.6 | 2.2 | 2.3 | 132 |
| HMP | 160L-2 | 18.5 | 25 | 2940 | 92.4 | 92.4 | 90.6 | 0.89 | 34.2 | 32.5 | 31.3 | 60.1 | 2.2 | 2.3 | 149 |
| IE1 TECHNICAL DATA |
| SPEED 3000RPM 2-POLE 50HZ |
| | | | | | | | / | / | / | | |
Type | Output | Speed | Efficiency | Power factor | Rated Torque | Rated current A | | | |
| | | | | | | | | | | | | |
| | KW | HP | r/min | | COSΦ | Nm | 380 | 400 | 415 | Is/In | Ts/Tn | | Kg |
| HMP | 711-2 | 0.37 | 0.5 | 2740 | 70.0 | 0.81 | 1.26 | 0.99 | 0.94 | 0.91 | 6.1 | 2.2 | 2.3 | 6.0 |
| HMP | 712-2 | 0.55 | 0.75 | 2740 | 73.3 | 0.82 | 0.82 | 1.4 | 1.33 | 1.28 | 2.3 | 1.88 | 2.2 | 6.5 |
| HMP | 801-2 | 0.75 | 1 | 2840 | 72.1 | 0.83 | 2.52 | 1.9 | 1.8 | 1.74 | 6.1 | 2.3 | 2.4 | 8.7 |
| HMP | 802-2 | 1.1 | 1.5 | 2840 | 75.0 | 0.84 | 3.7 | 2.65 | 2.51 | 2.42 | 6.3 | 2.4 | 2.4 | 9.5 |
| HMP | 90S-2 | 1.5 | 2 | 2840 | 77.2 | 0.84 | 5.04 | 3.51 | 3.33 | 3.21 | 6.5 | 2.3 | 2.3 | 11.8 |
| HMP | 90L-2 | 2.2 | 3 | 2840 | 79.7 | 0.85 | 7.4 | 4.93 | 4.68 | 4.51 | 6.8 | 2.4 | 2.5 | 13.5 |
| HMP | 100L-2 | 3 | 4 | 2860 | 81.5 | 0.87 | 10 | 6.41 | 6.09 | 5.87 | 6.9 | 2.4 | 2.4 | 21.0 |
| HMP | 112M-2 | 4 | 5.5 | 2880 | 83.1 | 0.88 | 13.26 | 8.29 | 7.88 | 7.59 | 7.0 | 2.3 | 2.4 | 26.0 |
| HMP | 132S1-2 | 5.5 | 7.5 | 2900 | 84.7 | 0.88 | 18.11 | 11.2 | 10.6 | 10.3 | 7.2 | 2.2 | 2.3 | 38.0 |
| HMP | 132S2-2 | 7.5 | 10 | 2900 | 86 | 0.88 | 24.7 | 15.0 | 14.3 | 13.8 | 6.9 | 2.3 | 2.4 | 41.0 |
| HMP | 160M1-2 | 11 | 15 | 2930 | 87.6 | 0.89 | 35.85 | 21.4 | 20.3 | 19.6 | 6.9 | 2.2 | 2.3 | 67.5 |
| HMP | 160M2-2 | 15 | 20 | 2930 | 88.7 | 0.89 | 48.89 | 28.8 | 27.4 | 26.4 | 7.0 | 2.3 | 2.3 | 76.0 |
| HMP | 160L-2 | 18.5 | 25 | 2930 | 89.3 | 0.90 | 60.3 | 34.9 | 33.2 | 32.0 | 7.0 | 2.4 | 2.5 | 85.2 |
Package
Frame NO. 80--132 :Package by carton box and then packed by wooden box
Frame NO.160 and above:one wooden box per set
