| Prod Model: |
FXBWY-110/100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Insulator Material: |
Polymer ,Silicon Rubben |
| Using Application: |
High Voltage |
| Rated Voltage: |
110kv |
| Tensile Strength: |
13kn |
| Spindle Material: |
Galvanized Steel |
| Insulator Color: |
Grey /Brown |
| Sample Time: |
5 Days |
| IEC Standard: |
ANSI C29.13-2000 |
| Package: |
Wooden Pallet |
| Structure: |
Post Insulator |
| Material: |
Porcelain |
| Type: |
A Type Insulator |
| Application: |
Low-voltage |
| Brand: |
OEM |
| Color: |
Grey |
Product Description

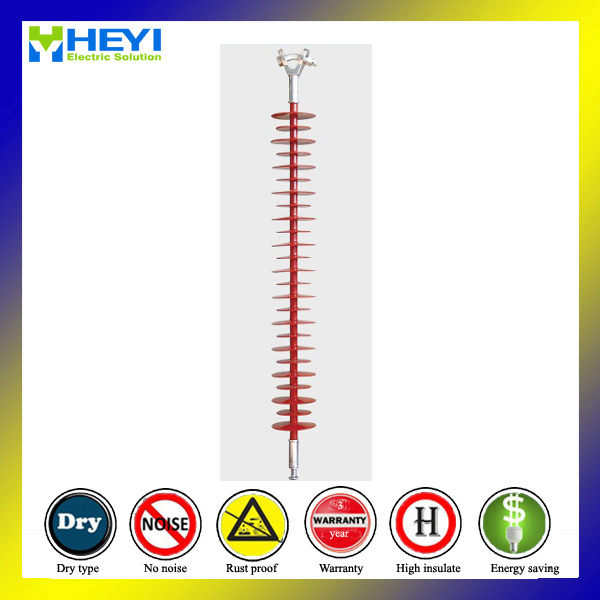

IEC 110KV Polymer Suspension Insulator 100KN 70KN
1.The Composite Insulator are made of glassfiber epoxy core rod, silicone rubber shed and metal fittings.
2.The silicon rubber shed adopt the whole packing pressure technique, and then to solve the key problem - interface electric spark puncture, which would affect the reliability of composite insulator.
Connection of the glassfiber rod and metal fittings, adopts the pressure welding technique of the international advanced level,
3.have the full automatic sound wave detection of defects system, high intension, beautiful outline, small volume, light weight, and the metal fitting of galvanization can corrosion prevention and exchange used with porcelain insulator.
IEC 110KV Polymer Suspension Insulator 100KN 70KN Specification
| Technical Specifications: |
| Model | Rated
Voltage | Rated
mechanical load | Structure
height | Min. Arc
distance | Min. Creepage
distance | Lightning impulse
withstand voltage | 1 min P.F. withstand
voltage (wet) |
| FXBWY-110/70 | 110 | 70 | 1200 | 1050 | 3150 | 550 | 230 |
| FXBWY-110/100 | 110 | 100 | 1240 | 1050 | 3150 | 550 | 230 |
| FXBWY-110/120 | 110 | 120 | 1240 | 1050 | 3150 | 550 | 230 |
IEC 110KV Polymer Suspension Insulator 100KN 70KN advantage
1.20 years global leading profession manufacture of energy meter
2.High quality porcelain material
3.Test data: each products will test by QC
4.Fast delivery : you will get the order when you need it
6.OEM is warmly welcome
7.3 line assemble line automatic machine ,
8.Convenient : 45 minutes to wenzhou airport
IEC 110KV Polymer Suspension Insulator 100KN 70KN function
1.This product is reliable structure
2.can't damage the core rod,
3.take full advantage of the mechanical strength.
4.excellent seismic performance,
5.good anti pollution performance; high quality stability.
IEC 110KV Polymer Suspension Insulator 100KN 70KN Payment terms
1. 30% T/T advance , the balance against to the copy B/Lor LC at sigh
2. The other specific issues can negorate.
3. Pls confirm the details with us before do the prepayment.
IEC 110KV Polymer Suspension Insulator 100KN 70KN Packing information
1. Inside foam package ,outside strong paper package
2. 20pcs/per CTN
3. G/N.W: 16/15kg
4. We can packing as your required,good looking design
Why choose IEC 110KV Polymer Suspension Insulator 100KN 70KN
1).ISO9001,SGS,Gold golden supplier
2) Monthly Production Capacity -- 100000 Pcs
3)All goods examined before delivery by 10 QC staff
4)Prompt Reply Within 12 Hours
5)8000 square meters work environment
We are the professional manufacturing the 0.5-35 KV outdoor indoor, fuse cut out composite insulator dry type, oil-immersed, combined transformer, electrical energy meter, power capacitor correction bank, low voltage stablizer and so on
1. Who we are
Heyi is dynamic company established in 1992, who specializes in research and design, manufacturing, and distribution of all kind ofcurrent transformer
Further more, we also develop ours business for the electrical product, like energy meter, power meter, power capacitor, relay, proximity switch and so on, focusing in ours customers needs, provide the best solution supporting ours customers, be the best in their filed of businss
2 why choose us
We have our own facilities for R&D, Production, Sales & Market, and Customer Support, specializing in the design, manufacture and delivery of customized solution. Equipped with all kinds of professional instruments and testing equipment, combined the professional standard of product testing methods, now we has an annual output of 5, 000, 000 or more products.
3 Heyi Mission, vision values
Heyi mission is to provide reliable, accurate and customized current transformer solution
Heyi vision is leading global split core CT manufacture and energy solution provider
Values Enthusiastic by our work, we offer a quality personal and close service to our customers
Some products have been approved by CE and IEC certificates.
