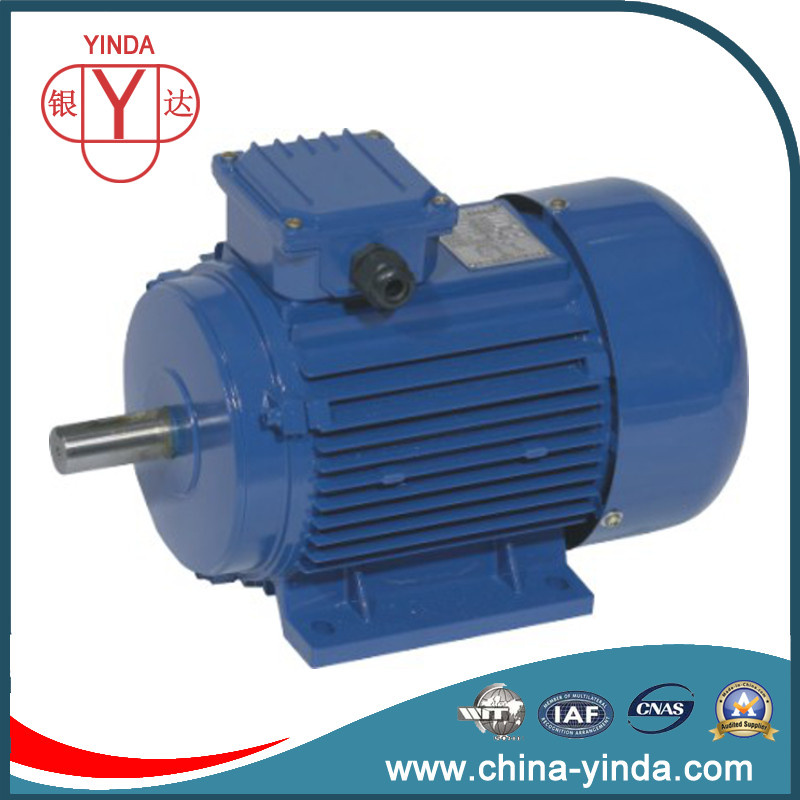

IEC 40W ~ 2200W Three Phase Fan Motor

Name: IEC 40W ~ 2200W Three Phase Fan Motor
Brand: all-electronics-online.com
SKU: 606414414
Availability: InStock
Rating: 5 (61 reviews)

Price:	US $ 20/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	50/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	YS MS
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Power:	60W-2200kw
Frame Material:	Aluminum
Voltage:	230/460V (60Hz); 380-415V (50Hz)
Freqyency:	50/60Hz
Mounting:	B3/B8/B35b14/B34
Continuous Working Duty:	S1
Protection Class:	IP54
Insulation Grade:	F
Warranty:	12 Months
Application:	Automation Equipment
Structure:	Non-Electromagnetic
Certification:	Ce

Product Description

MS Series Aluminum Frame Three Phase Ac Motor

Standard Features:

Three-phase, 60/50Hz
Power: 60W-2200W
Voltage: 230/460V (60Hz); 380-415V (50Hz)
Aluminum frames (56 up to 90)
Squirrel cage rotor / Aluminum die cast
Totally Enclosed Fan Cooled TEFC (IP54)
Oil Seal on both endshields
Class "F" insulation
Continuous duty (S1)
Altitude: 3300 ft (1000m)
Standard mouting: B3 Also available in B5, B35, B14 and B34

Optional Features:

Double shaft end
Special painting color

Technical Data:

Type	Power	Current	Voltage	Frequency	Speed	Efficiency	Power factor	TLR	ILR	Tmax	Nosie
Type	W	A	V	Hz	r/min	%	cosΦ	Trated	IRATED	Trated	Lw dB(A)
YS-5012	40	0.17	380	50	2800	55	0.65	2.3	6	2.3	65
YS-5022	60	0.23	380	50	2800	60	0.66	2.3	6	2.3	70
YS-5612	90	0.32	380	50	2800	62	0.68	2.3	6	2.3	70
YS-5622	120	0.38	380	50	2800	67	0.71	2.3	6	2.3	70
YS-6312	180	0.53	380	50	2800	69	0.75	2.3	6	2.3	70
YS-6322	250	0.68	380	50	2800	72	0.78	2.3	6	2.3	70
YS-7112	370	0.95	380	50	2800	73.5	0.8	2.3	6	2.3	75
YS-7122	550	1.3	380	50	2800	75.5	0.82	2.3	6	2.3	75
YS-8012	750	1.8	380	50	2800	76.5	0.85	2.2	6	2.3	75
YS-8022	1100	2.5	380	50	2800	77	0.85	2.2	7	2.3	78
YS-90S2	1500	3.4	380	50	2800	78.5	0.85	2.2	7	2.3	83
YS-90L2	2200	4.8	380	50	2800	81	0.86	2	7	2.3	83
YS-5014	25	0.19	380	50	1400	42	0.53	2.4	6	2.4	60
YS-5024	40	0.23	380	50	1400	50	0.54	2.4	6	2.4	60
YS-5614	60	0.28	380	50	1400	56	0.58	2.4	6	2.4	65
YS-5624	90	0.39	380	50	1400	58	0.61	2.4	6	2.4	65
YS-6314	120	0.48	380	50	1400	60	0.63	2.4	6	2.4	65
YS-6324	180	0.65	380	50	1400	64	0.66	2.4	6	2.4	65
YS-7114	250	0.83	380	50	1400	67	0.68	2.4	6	2.4	65
YS-7124	370	1.1	380	50	1400	69.5	0.72	2.4	6	2.4	70
YS-8014	550	1.6	380	50	1400	73.5	0.73	2.4	6	2.4	70
YS-8024	750	2	380	50	1400	75.5	0.75	2.3	6	2.4	70
YS-90S4	1100	2.8	380	50	1400	78	0.78	2.3	6.5	2.4	73
YS-90L4	1500	3.7	380	50	1400	79	0.79	2.3	6.5	2.4	78
YS712-6	0.25	0.94	380	380	910	63	0.64	2	5.5	2	60
YS801-6	0.37	1.3	380	380	910	68	0.64	2	5.5	2	65
YS802-6	0.55	1.8	380	380	910	71	0.65	2	5.5	2	65
YS90S-6	0.75	2.2	380	380	910	73	0.69	2	5.5	2.1	65
YS90L-6	1.1	3.2	380	380	910	74	0.71	2	6	2.1	68
YS711-8	0.09	0.5	380	380	710	0.5	0.55	1.8	4.5	1.9	55
YS712-8	0.12	0.63	380	380	710	0.63	0.55	1.8	4.5	1.9	55
YS801-8	0.18	0.85	380	380	710	0.85	0.55	1.8	4.5	1.9	55
YS802-8	0.25	1.1	380	380	710	1.1	0.56	1.8	4.5	1.9	55
YS90S-8	0.37	1.4	380	380	710	1.4	0.6	1.8	4.5	1.9	60
YS90L-8	0.55	2	380	380	710	2	0.62	1.8	4.5	1.9	60

Photos:

Yinda located in Wenling city of Zhejiang provice, which is 15 minutes driving from Wenling Train Station.

Establised in 1988 and renamed in 2003, Zhejiang Yinda Machine Electricity Co., Ltd. Engaged in developing reliable motors, as well as welding machine and scrao wire stripping machines to satisfying the market.

Our products:

1. Electric Motors:

Single-phase AC motor, (including Capacitor start & run motor, capacitor run motor, capacitor start motor, resistance start motor) ML, MC, MY, YL, YC, YY, YU, YCL

Three-phase Electric motor, IE3, IE2

Three-Phase double speed motor, YD series

Electromagnetic Brake AC Motor YEJ/Y2EJ series

Change Speed Frequency Vataible Inverter Duty Motor YVP/YVF2 series

Custom motors are available.

2. Kinds of recycling equipment such as Scrap Wire stripping machine & Motor reccycling machine

3. Welding Machines:

MMA inverter Welding, ZX7 series

TIG Welding

MIG Welding

BX1 series AC Arc Welding

Bx6 Series AC Arc Welding

Bx6 series stainless body welding

Bx series wooden leg welding
