IEC Ce and RoHS Approvals 0.1~630A Thermal Overload Relay

Name: IEC Ce and RoHS Approvals 0.1~630A Thermal Overload Relay
Brand: all-electronics-online.com
SKU: 814033115
Availability: InStock
Rating: 4.8 (135 reviews)

Price:	US $ 53-60/Piece
Min Order:	60/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	CR2-53

Product Description

1. Product Description

1.1 General

1) Electric ratings: AC 50/60Hz, 690V, 0.1~630A
2) Tripping class: 10A
3) Mounting version:
A. Plug-in: Available for CR2-03, 13, 23, 33, 43
B. Independent: Available for CR2-53, 63
4) Standard: IEC/EN 60947-4-1

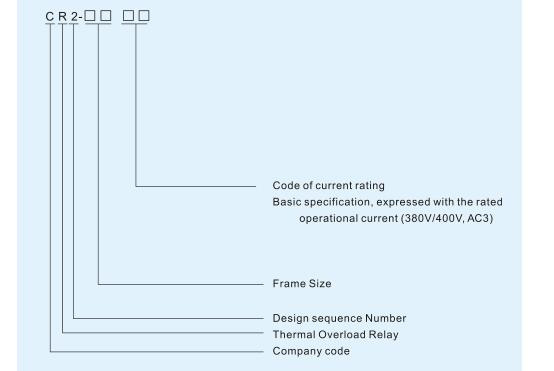

1.2 Type Designation

1.3 Features

1) 3-phase bimetal
2) Continuously readjustable current settings.
3) Temperature compensation
4) Tripping indicator
5) Test button
6) Stp[ button
7) Manual and automatic reset button
8) Electrically separated 1N/O plus 1N/C contact

1.4 Assembly with contactor

Model of overload relay	Code	Rated current	Recommended fuse type(RT16 is recommended )		Contactor Matched
Model of overload relay	Code	Rated current	aM	gG	Contactor Matched
CR2-23	2353	23~32	40	63	CC1-32
CR2-23	2355	30~40	40	80	CC1-32
CR2-33	3353	23~32	40	63	CC1-40 CC1-50 CC1-65 CC1-80 CC1-95
	3355	30~40	40	100
	3357	37~50	63	100
	3359	48~65	63	100
	3361	55~70	80	125
	3363	63~80	80	125
	3365	80~93	100	160
CR2-43	4366	80~104	125	200	CC1-115 CC1-150
	4367	95~120	125	224
	4368	110~150	160	250
CR2-53	5369	80~125	125	200	CC1-115 CC1-185 CC1-150 CC1-225
	5370	100~160	160	250
	5371	125~200	200	315
CR2-63	6372	160~250	250	400	CC1-185 CC1-225 CC1-265 CC1-330 CC1-400 CC1-500 CC1-630
	6373	200~315	315	500
	6374	250~400	400	630
	6375	315~500	500	800
	6376	400~630	630	800

2. Company Profiles

3. Featured Products

Established in 1987, CHANGAN GROUP Co., Ltd. Has been acknowledged as one of the most respected nation-wide manufacturers and exporters of low-voltage electrical apparatus in P. R. China.

Comprising more than 62 factories with over 2500 employees and the whole corporation occupies 82000m2 ground during past 27 years.

We manufacture and export varieties of low voltage electrical appliance including all kinds of CIRCUIT BREAKER, CONTACTOR, RELAY, SWITCH, SOLAR INVERTER etc.

All of our production procedures strictly follow ISO9001, ISO14001 and OHSAS18001, most of our products are certified such as SEMKO, TUV, CB and CE which can prove our guarantee quality and our products also have been chosen as "Chinese FAMOUS BRAND PRODUCT".

We not only make efforts in developing our own products with "CHANA"brand but also provide OEM services. Hope to establish good business relationships with your esteemed company in near future.
