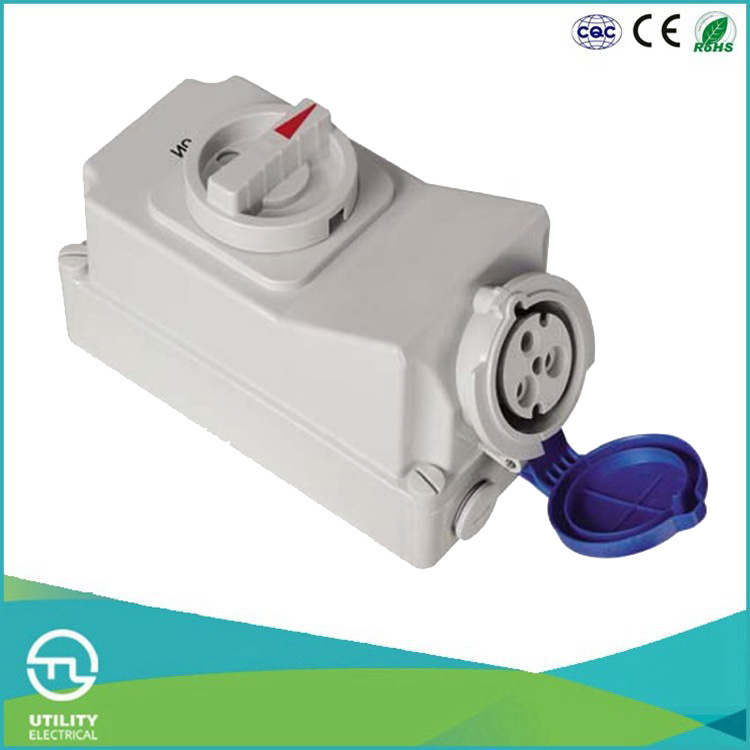

IEC Cee Industrial Plug & Socket IP44 Socket with Switch and Interlock Connector

IEC Cee Industrial Plug & Socket IP44 Socket with Switch and Interlock Connector
Price: US $ 35-39/Piece
Min Order: 1/Piece
Pay Type: T/T,Western Union,Paypal
Prod Model: UTL-70XXX
Current: 16A/ 32A/ 63A
Voltage: 110V/ 230V/ 400V/ 500V
Poles: 3p/4p/5p
Housing: PA6(Nylon) UL94-V0
Contact: Brass
Grounding: Standard Grounding
Type: With Switch
Application: Industrial
IP Rating: IP44
Certification: CQC,RoHS
Customized: Non-Customized
Condition: New
Hole-Digit: 3-5
Color: as Photo Shows

Product Description

UTL CEE/IEC International Standard Industrial Plugs & Sockets
Multi-current Female Socket with Switches and Mechanical Interlock
--16A/ 32A/ 63A
--IP44
--110V/230V/400V/500V
--3P/4P/5Poles

UTL's CEE/IEC International Standard Connector is an industrial connector that can be used for standard grounding.
This product ranges its rated voltage up to 400V and has a rated current of 16A. It can be apply in industrial works, has protection level of IP44 and its poles are 5P.

Product Parameters:
Number of Poles3P+N+Earthing/ 3P+Earthing/ 2P+Earthing
Current16A/32A/63A
Voltage110V/230V/400V/500V
Cable crossection1.5-2.5mm²(16A),4-6mm²(32A),10-16mm²(63A)
connection methodscrew-clamping
IP rateIP44
Housing materialNylon(PA6)
Conductor materialBrass
ScrewSteel
CertificationCE, CCC, RoHS
International StandardEuropean/ International Standards EN/IEC 60309-2
Colorsame as photo shows or custom colors
MOQ1pcs
Lead time3-7 working days
Warranty1 year
Label/packagewith/without manufacturer's info
