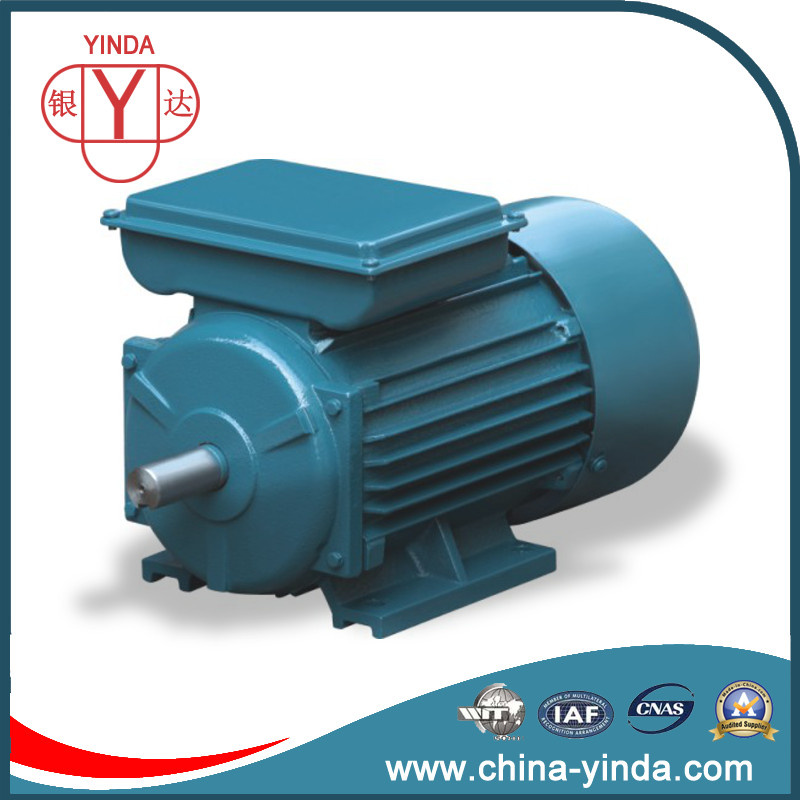

IEC Gp (Permanent Capacitor) Single-Phase AC Motor

Name: IEC Gp (Permanent Capacitor) Single-Phase AC Motor
Brand: all-electronics-online.com
SKU: 702744492
Availability: InStock
Rating: 4.9 (109 reviews)

Price:	US $ 30-60/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	YC/MC/YL/ML/YCL
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Power:	0.55 ~ 7.5kw
Voltage:	100V, 110V, 120V, 220V, 230V or 240V
Frequency:	50 or 60Hz
Warranty:	12 Months
Payment For Samples:	100% in Advance
Application:	Power Tools
Operating Speed:	Low Speed
Number Of Stator:	Single-Phase
Rotor Structure:	Squirrel-Cage
Casing Protection:	Protection Type
Species:	Permanent Capacitor
Starting Mode:	Cap Start - Cap Run
Certification:	CE

Product Description

IEC General Purpose Single-Phase AC Motor
(Permanent Capacitor & Cap start - Cap run)

Applications

Pumps
Fans
Conveyors
Blowers
Air compressors
Industrial equipment
Milling machines
Tools
Farm equipment
Aeration equipment
Other moderate-to-high starting torque applications.

Standard Features

Single-phase, II and IV pole, 50Hz
Frame Material: Cast Iron (frame size 80-132, Aluminum Frame size 63 -112
Squirrel cage rotor / Aluminum die cast
IEC dimension
Insulation Class 'B'
High starting torque
Continuous Duty (S1)

Optional Features

special Voltages and frequen
Insulation Class 'F'
B34/B14/B5 mount

Technical data

Type	Rated output		Voltage	Frequency	Speed	Efficiency	Power factor	Current	Is	Ts	Nosie
Type	Kw	HP	V	Hz	r/min	%	cosΦ	A	In	Tn	Lw dB(A)
ML80M1-2	0.75	1	220	50	2800	72.0	0.95	5.94	5.5	1.8	75
ML80M2-2	1.1	1.5	220	50	2800	74.0	0.95	7.74	5.5	1.8	75
ML90S-2	1.5	2	220	50	2840	75.0	0.95	9.4	5.5	1.8	78
ML90L-2	2.2	3	220	50	2840	76.0	0.95	13.7	5.5	1.7	78
ML100L-2	3	4	220	50	2840	78.0	0.95	18.2	6	1.7	83
ML112M-2	3.7	5	220	50	2840	79.0	0.95	22.6	6	1.7	83
ML132S-2	5.5	7.5	220	50	2880	80.0	0.95	34.5	6	1.7	83
ML80M1-4	0.55	0.75	220	50	1400	68.0	0.92	4	5	1.7	70
ML80M2-4	0.75	1	220	50	1400	70.0	0.95	5.2	5	1.7	70
ML90S-4	1.1	1.5	220	50	1400	71.0	0.95	7.2	5	1.7	73
ML90L-4	1.5	2	220	50	1400	73.0	0.95	9.6	5	1.7	73
ML100L1-4	2.2	3	220	50	1400	75.0	0.95	13.9	5	1.7	78
ML100L2-4	3	4	220	50	1400	77.0	0.95	18.6	5	1.7	78
ML112M-4	3.7	5	220	50	1430	78.0	0.95	22.8	5.5	1.7	83
ML132S-4	5.5	7.5	220	50	1440	79.0	0.95	35	5.5	1.7	83

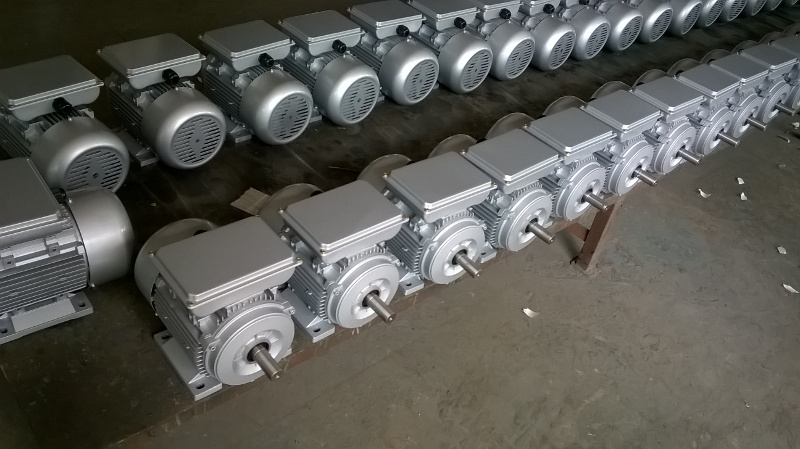

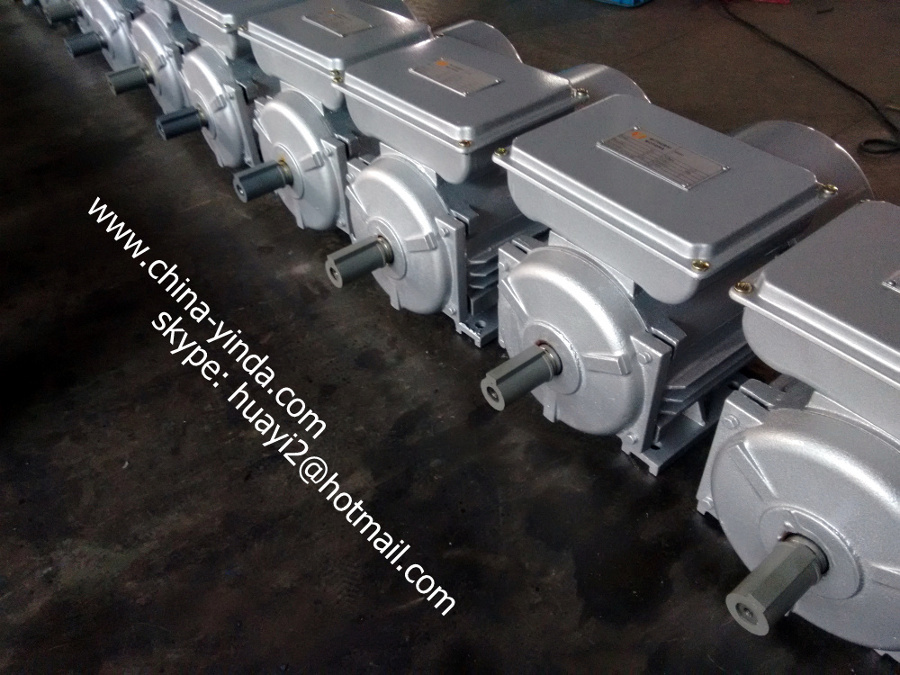

Photos:

Yinda located in Wenling city of Zhejiang provice, which is 15 minutes driving from Wenling Train Station.

Establised in 1988 and renamed in 2003, Zhejiang Yinda Machine Electricity Co., Ltd. Engaged in developing reliable motors, as well as welding machine and scrao wire stripping machines to satisfying the market.

Our products:

1. Electric Motors:

Single-phase AC motor, (including Capacitor start & run motor, capacitor run motor, capacitor start motor, resistance start motor) ML, MC, MY, YL, YC, YY, YU, YCL

Three-phase Electric motor, IE3, IE2

Three-Phase double speed motor, YD series

Electromagnetic Brake AC Motor YEJ/Y2EJ series

Change Speed Frequency Vataible Inverter Duty Motor YVP/YVF2 series

Custom motors are available.

2. Kinds of recycling equipment such as Scrap Wire stripping machine & Motor reccycling machine

3. Welding Machines:

MMA inverter Welding, ZX7 series

TIG Welding

MIG Welding

BX1 series AC Arc Welding

Bx6 Series AC Arc Welding

Bx6 series stainless body welding

Bx series wooden leg welding
