Product Description

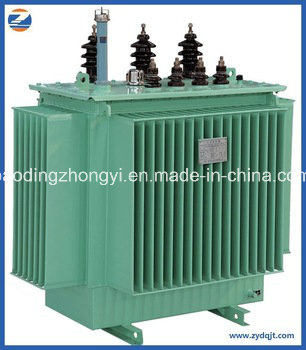

IEC standard, 10kV/11kV Oil-Immersed Distribution Transformer
Product introduction
S11 series transformer is one kind of low loss copper winding product. It adopts high quality material, especially applying the new technology and new material to the insulation of the coil and transformer body, thus the no-load and the load loss are obviously reduced, the performance and structure are more reliable and superior.
1. Primary Voltage: 11kV. 22kV.33kV
2. Second Voktage: 0.4kv
3. Tapping Range: ± 5%, ± 2× 2.5%
4. Frequency: 50Hz; 60Hz
5. Connection Sign: Yyn0, Dyn11 or others
Product features
1.Good Economic Performance
2.Long Service Life
3.High Operational Reliability
4.Small Installation Area
Technical Specifications
Model No. | Voltage Combination | Connection Group Symbol
| No-load Loss | Load Loss | Impedance Voltage (%) | No-load Current(%) | Length L(mm) | Width W (mm) | Height H(mm) | Distance between shafts Horizontal*Vertical
(mm) | Body Weight(Kg) | Oil Weight(Kg) | Total Weight
(Kg) |
| High Voltage | Tapping Range of High Voltage | Low Voltage |
| S11-30/10 |
6
6.3
10
10.5 |
±5%
±4×2.5% |
0.4 |
Yyn0(or) Dyn11
| 0.1 | 0.6 |
4.0
| 2.8 | 980 | 735 | 1145 | 400*400 | 178 | 78 | 355 |
| S11-50/10 | 0.13 | 0.87 | 2.5 | 1017 | 758 | 1205 | 450*400 | 240 | 92 | 415 |
| S11-63/10 | 0.15 | 1.04 | 2.4 | 1035 | 785 | 1285 | 450*400 | 285 | 105 | 505 |
| S11-80/10 | 0.18 | 1.25 | 2.2 | 1065 | 800 | 1290 | 450*400 | 330 | 110 | 540 |
| S11-100/10 | 0.2 | 1.5 | 2.1 | 1072 | 820 | 1305 | 450*400 | 345 | 116 | 590 |
| S11-125/10 | 0.24 | 1.8 | 2.0 | 1155 | 1105 | 1310 | 450*550 | 415 | 135 | 705 |
| S11-160/10 | 0.28 | 2.2 | 1.9 | 1235 | 850 | 1535 | 550*550 | 485 | 155 | 835 |
| S11-200/10 | 0.34 | 2.6 | 1.8 | 1282 | 860 | 1557 | 550*550 | 582 | 168 | 965 |
| S11-250/10 | 0.4 | 3.05 | 1.7 | 1310 | 940 | 1605 | 550*550 | 695 | 210 | 1135 |
| S11-315/10 | 0.48 | 3.65 | 1.6 | 1465 | 1120 | 1915 | 660*650 | 855 | 255 | 1520 |
| S11-400/10 | 0.57 | 4.3 | 1.5 | 1440 | 1165 | 1725 | 660*660 | 950 | 295 | 1590 |
| S11-500/10 | 0.68 | 5.15 | 1.4 | 1510 | 1250 | 1845 | 660*650 | 1150 | 320 | 1905 |
| S11-630/10 | 0.81 | 6.2 | 1.3 | 1650 | 1140 | 1920 | 660*650 | 1500 | 435 | 2015 |
| S11-800/10 | 0.98 | 7.5 |
4.5 | 1.2 | 2125 | 1175 | 2315 | 820*820 | 1910 | 760 | 3510 |
| S11-1000/10 | 1.15 | 10.3 | 1.1 | 2150 | 1380 | 2570 | 820*820 | 2125 | 880 | 3850 |
| S11-1250/10 | 1.36 | 12.0 | 1.0 | 2355 | 1485 | 2570 | 820*820 | 2605 | 960 | 4610 |
| S11-1600/10 | 1.64 | 14.5 | 0.9 | 2335 | 1750 | 2630 | 820*820 | 3125 | 1150 | 5420 |
Packing & Delivery
Packaging Details:
1, Wrapped with plastic film.
2, Fixed in a wooden case.
3, Wooden case on a pallet.
Delivery:
Will be deliveryed 10-20 days after payment according to the order quantities.
