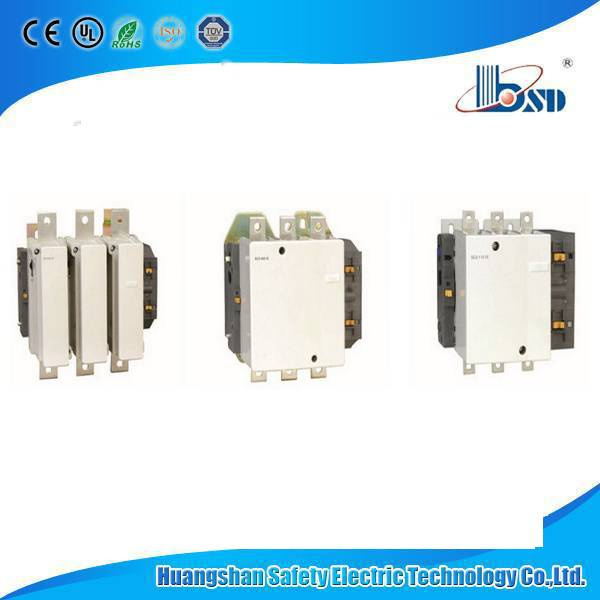

IEC Standard 3 Pole LC1-F Series Electric AC Contactor

Name: IEC Standard 3 Pole LC1-F Series Electric AC Contactor
Brand: all-electronics-online.com
SKU: 812098985
Availability: InStock
Rating: 4.4 (49 reviews)

Price:	US $ 33.5/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LC1-F
Model No:	LC1-F Cjx2-F
Number Pole:	Three Phase
Main Current Rating Current:	up to 780A
Oringin:	Wenzhou and Huangshan City /China
Warranty Time:	Three Years
HS.Code No:	8536900000
Delivery Time:	2 Weeks
Certificate And Standard:	CCC ,CQC ,Ce

Product Description

LC1-F AC Contactor 36V/Type of AC Magnetic contactor/AC magnetic contactor
Application
CJX2 -D (LC1-F )series of AC Contactor is applicable to the circuit up to the rated voltage 1000V AC 50Hz or 60Hz, rated current up to 780A, for long distance breaking circuit and frequency starting or control the motor. It also ca be used for the control of distribution circuits of current from 220A to 1600A.
Specification

Type		CJX2-D115	CJX2-D150	CJX2-D185	CJX2-D225	CJX2-D265
Rated working current(A)	AC-1	115	150	185	225	265
Rated working current(A)	AC-3	200	250	275	315	350
Standard power rating of 3 phase motors AC-3(KW)	220V	30	40	55	63	75
	380V	55	75	90	110	132
	415V	59	80	100	110	140
	440V	59	80	100	110	140
	500V	75	90	110	129	160
	600V	80	100	110	129	160
	1000V	65	65	100	100	147

Type		CJX2-D330	CJX2-D400	CJX2-D500	CJX2-D630	CJX2-D780
Rated working current(A)	AC-1	330	400	500	630	780
Rated working current(A)	AC-3	400	500	700	1000	1600
Standard power rating of 3 phase motors AC-3(KW)	220V	100	110	147	200	220
	380V	160	200	250	335	400
	415V	180	200	280	375	425
	440V	200	250	295	400	425
	500V	200	257	355	400	450
	600V	200	280	335	450	475
	1000V	160	185	335	450	450

Huangshan Safety Electric Technology Co., Ltd., is located in the Huangshan city, which is one of the leading manufacturer and exporter in the field of low voltage electric appliance in China,

We produce circuit breaker (MCB, ELCB, RCCB, RCBO, MCCB),

AC capacitor (low voltage power capacitor, motor run and starting capacitors, lighting capacitors, )

Pushbutton, switches, contactor, indication lamps, distribution box, etc series products, at present, we have more 200 workers and with about 20000 square meters building workshop for the production line,

We have gotten the ISO9001, CCC, , CE, TUV, UL certificate. We produce top quality all along and meet customers' quality requirement,

We have the development department by ourselves, we can offer OEM, ODM service and develop new products every year.

We promise to offer you superior products, favorable price, and timely delivery.

If you are interested in cooperating with us, please feel free to contact with us in your earliest convenience time.
