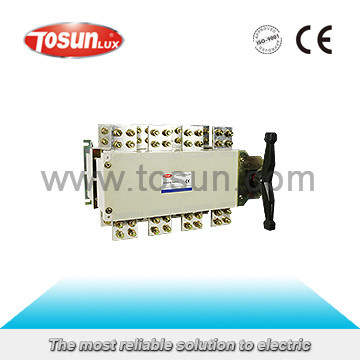

IEC Standard CE Certified Isolation Switch

Name: IEC Standard CE Certified Isolation Switch
Brand: all-electronics-online.com
SKU: 755099905
Availability: InStock
Rating: 4.9 (79 reviews)

Price:	US $ 27-695/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	HGLZ
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Number Of Main Poles:	3,4
Rated Insulation Voltage Ui(V):	750 / 1000
Dielectric Strength (V):	5000-10000
Rated Operational Current Ie(a):	125-1600
Rated Making Capacity (a RMS) AC-23 380V:	1000-8000
Rated Breaking Capacity(a RMS) AC-23 380:	1250-10000
Rated Short-Circuit Making Capacity Icm:	12-70 Ka
Mechanical Life:	3000-1000 Operations
Operation:	Manual
Series:	Four
Certification:	CE
Switching Mode:	Single Throw-in
Brand:	Tosunlux

Product Description

Specification

Model	Overall Dimension						Mounting Dimension				Terminal Dimension
Model	A	B	C	D	E	H	a	b	c	e	R	S	T	Y1	M
HGLZ-160/3	195	135	196	36	140	85	120	65	5.5	20	20	10	3.5	72	8
HGLZ-160/4	225	135	196	36	170	85	150	65	5.5	20	20	10	3.5	72	8
HGLZ-250/3	235	170	215	50	180	110	160	90	5.5	20	25	15	3.5	82	10
HGLZ-250/4	285	170	215	50	230	110	210	90	5.5	20	25	15	3.5	82	10
HGLZ-400/3	300	240	278	65	230	160	210	140	7	35	32	17	5	114	10
HGLZ-400/4	360	240	278	65	290	160	270	140	7	35	32	17	5	114	10
HGLZ-630/3	300	260	278	65	230	160	210	140	7	35	40	20	6	114	12
HGLZ-630/4	360	260	278	65	290	160	270	140	7	35	40	20	6	114	12
HGLZ-1000/3	473	312	380	120	378	200	353	230	9	40	60	20	8	156	12
HGLZ-1000/4	593	312	380	120	498	200	473	230	9	40	60	20	8	156	12
HGLZ-1250/3	473	356	380	120	378	200	353	230	9	40	80	20	8	156	12
HGLZ-1250/4	593	356	380	120	498	200	473	230	9	40	80	20	8	156	12
HGLZ-1600/3	473	356	380	120	378	200	353	230	9	40	80	20	10	156	12
HGLZ-1600/4	593	356	380	120	498	200	473	230	9	40	80	20	10	156	12
Note: The hole size of wiring board is corresponding to HGLZ.

Model	Overall Mounting Dimension					Mounting Dimension
Model	A	B/B*	E	a	e	R/R*	T/T*	Y/Y*	Z/Z*
HGLZ-2000/3	473	356/502	378	350	40	80/80	8/10	98/85	88/115
HGLZ-2000/4	593	356/502	498	470	40	80/80	8/10	98/85	88/115
HGLZ-2500/3	473	356/502	378	350	40	80/80	8/12	98/85	88/115
HGLZ-2500/4	539	356/502	498	470	40	80/80	8/12	98/85	88/115
HGLZ-3200/3	473	356/502	378	350	40	80/100	10/15	98/85	88/120
HGLZ-3200/4	593	356/502	498	470	40	80/100	10/15	98/85	88/120
Note: The "*" is the size for products with connecting copper.
