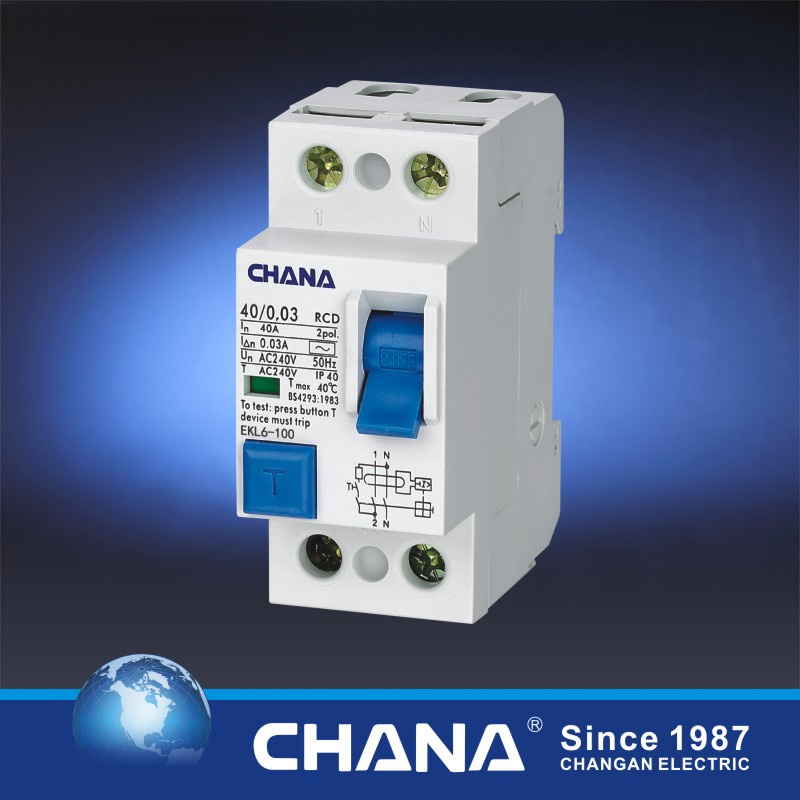

IEC Standard Residual Current Circuit Breaker 2p 40A

Name: IEC Standard Residual Current Circuit Breaker 2p 40A
Brand: all-electronics-online.com
SKU: 693937972
Availability: InStock
Rating: 4.9 (55 reviews)

Price:	US $ 6-6.5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	EKL6-100
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Triping Type:	Thermal
Pole:	2p/4p
Pollution Degree:	2
Short-Circuit:	6000
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	ELCB
Poles Number:	2
Certification:	CCC

Product Description

RCBO

Technical Data
Electrical Features
Type (wave form of the earth leakage sensed): AC
Thermo-magnetic release characteristic: C
Rated current In: 6, 10, 16, 20, 25, 32A
Poles: 1P+N
Rated voltage Ue: 230/240V
Rated sensitivity In: 0.03, 0.1, 0.3A
Rated residual making and breaking capacity Im: 500A
Rated short-circuit capacity lcn: 6, 000A
Break time under In: ≤ 0.1s
Rated frequency: 50/60Hz
Rated impulse withstand voltage (1.2/50)Uimp: 4000V
Dielectric TEST voltage at ind. Freq. For 1min: 2kV
Insulation voltage Ui: 500V
Pollution degree: 2
Mechanical Features
Electrical life: 2, 000
Mechanical life: 2, 000
Contact position indicator: Yes
Protection degree: IP20
Ambient temperature (with daily average≤ 35º C): -5º C...+40º C
Storage temperation: -25º C...+70º C
Installation
Terminal connection type: Cable/U-type busbar/Pin-type busbar
Terminal size top/bottom for cable: 16mm2 18-5AWG
Terminal size top/bottom for busbar: 16mm2 18-5AWG
Tightening torque 2 N*m 18In-Ibs.
Mounting: On DIN rail EN 60715 (35mm) by means of fast clip device
Connection: From top

Main data

Type	AC/DC	Electrical life	2000
Rated voltage	220V	Mechnical life	2000
