| Prod Model: |
HMID225S--8P/4P-22/28KW |
| Frame Size Range: |
225 |
| Rated Power: |
22/28kw |
| Rated Voltage: |
220/380V, 380/660V, 230/400V, 400V/690V |
| Frequency: |
50Hz, 60Hz |
| Protection Class: |
IP44, IP54, IP55 |
| Insulation Class: |
B\F\H |
| Mounting Type: |
B3, B5, B14, B35multi and Pad Mounting |
| Ambient Temperature: |
-20~+40 °c |
| Altitude: |
≤1000m |
| Standards And Specifications: |
International Standard IEC 60034-2 +A1:1995 +A2:1 |
| Application: |
Universal |
| Operating Speed: |
Adjust Speed |
| Number Of Stator: |
Three-Phase |
| Species: |
Y, Y2 Series Three-Phase |
| Rotor Structure: |
Squirrel-Cage |
| Casing Protection: |
Closed Type |
| Starting Mode: |
y-δ Starting |
| Number Of Poles: |
8p/4p |
| Certification: |
Ce&C390-93, UL & Saso |
| Brand: |
Hongma |
Product Description
Product Description

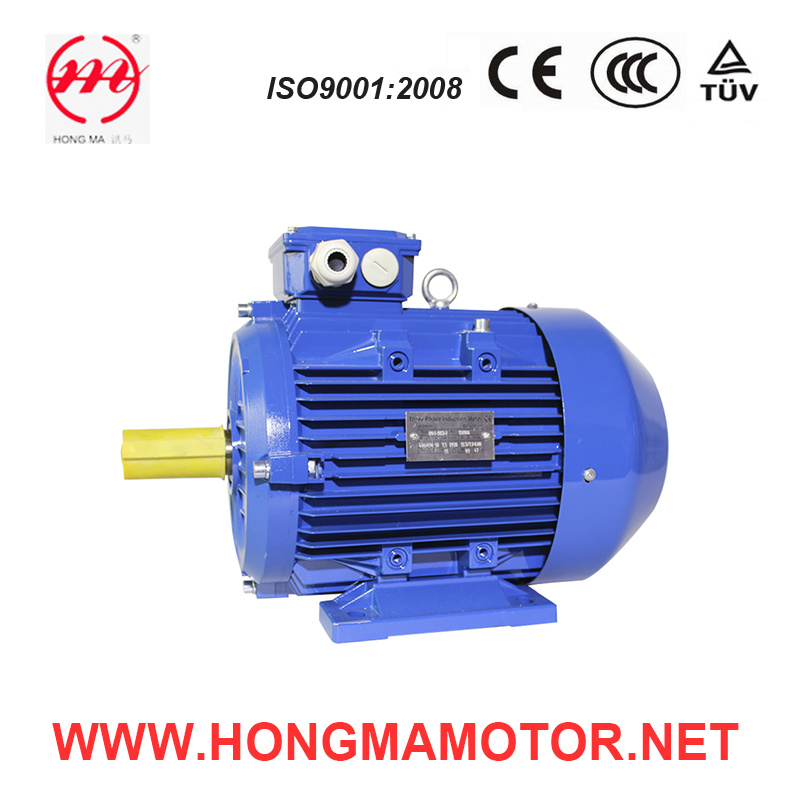

MD (YD)series 3 phase multispeed induction motorderives from Y2 series motor, and it switches poles and output power by transforming the joint mode of winding to matching to the load performance of mechanical equipment. It complies with IEC standard on noise, start torque, vibration value and mounting and overall dimensions. The motors are characteristic in small size, light, stable, firm structure ,good appearance and so on .
Technical Data
| Type | Power | Current | Speed | η | Power Factor | TST/TN | IST/IN | |
| KW | A | RPM | % | CosΦ |
| MD80K | 4 | 0.45 | 1.4 | 1420 | 66 | 0.74 | 1.5 | 6.5 | 1.8 |
| 2 | 0.55 | 1.5 | 2860 | 65 | 0.85 | 1.6 | 7 | 1.8 |
| MD80G | 4 | 0.55 | 1.7 | 1420 | 68 | 0.74 | 1.5 | 6.5 | 1.8 |
| 2 | 0.75 | 2 | 2860 | 66 | 0.85 | 1.6 | 7 | 1.8 |
| MD90S | 4 | 0.85 | 2.3 | 1430 | 74 | 0.77 | 1.5 | 6.5 | 1.8 |
| 2 | 1.1 | 2.8 | 2850 | 72 | 0.84 | 1.6 | 7 | 1.8 |
| MD90L | 4 | 1.3 | 3.3 | 1430 | 76 | 0.78 | 1.5 | 6.5 | 1.8 |
| 2 | 1.8 | 4.3 | 2850 | 74 | 0.84 | 1.6 | 7 | 1.8 |
| MD100LA | 4 | 2 | 4.8 | 1430 | 78 | 0.81 | 1.5 | 6.5 | 1.8 |
| 2 | 2.4 | 5.6 | 2850 | 76 | 0.86 | 1.6 | 7 | 1.8 |
| MD100LB | 4 | 2.4 | 5.6 | 1430 | 79 | 0.83 | 1.5 | 6.5 | 1.8 |
| 2 | 3 | 5.7 | 2850 | 77 | 0.89 | 1.6 | 7 | 1.8 |
| MD112L | 4 | 3.3 | 7.4 | 1450 | 81 | 0.83 | 1.5 | 6.5 | 1.8 |
| 2 | 4 | 8.6 | 2860 | 80 | 0.88 | 1.6 | 7 | 1.8 |
| MD132S | 4 | 4.5 | 9.8 | 1450 | 83 | 0.84 | 1.5 | 6.5 | 1.8 |
| 2 | 5.5 | 11.9 | 2860 | 79 | 0.88 | 1.6 | 7 | 1.8 |
| MD132M | 4 | 6.5 | 13.8 | 1450 | 84 | 0.85 | 1.5 | 6.5 | 1.8 |
| 2 | 8 | 17.1 | 2880 | 80 | 0.89 | 1.6 | 7 | 1.8 |
| MD160M | 4 | 9 | 18.5 | 1460 | 87 | 0.85 | 1.5 | 6.5 | 1.8 |
| 2 | 11 | 22.9 | 2920 | 82 | 0.89 | 1.6 | 7 | 1.8 |
| MD160L | 4 | 11 | 22.3 | 1460 | 87 | 0.86 | 1.5 | 6.5 | 1.8 |
| 2 | 14 | 28.8 | 2920 | 82 | 0.9 | 1.6 | 7 | 1.8 |
| MD90S | 6 | 0.65 | 2.2 | 920 | 64 | 0.7 | 1.4 | 6.5 | 1.8 |
| 4 | 0.85 | 2.3 | 1420 | 70 | 0.79 | 1.3 | 7 | 1.8 |
| MD90L | 6 | 0.85 | 2.8 | 930 | 66 | 0.7 | 1.4 | 6.5 | 1.8 |
| 4 | 1.1 | 3 | 1420 | 71 | 0.79 | 1.3 | 7 | 1.8 |
| MD100LA | 6 | 1.3 | 3.8 | 940 | 74 | 0.7 | 1.4 | 6 | 1.8 |
| 4 | 1.8 | 4.4 | 1440 | 77 | 0.8 | 1.3 | 6.5 | 1.8 |
| MD100LB | 6 | 1.5 | 4.3 | 940 | 75 | 0.7 | 1.4 | 6 | 1.8 |
| 4 | 2.2 | 5.4 | 1440 | 77 | 0.8 | 1.3 | 6.5 | 1.8 |
| MD112M | 6 | 2.2 | 5.7 | 960 | 77 | 0.75 | 1.4 | 6 | 1.8 |
| 4 | 2.8 | 6.7 | 1440 | 77 | 0.82 | 1.3 | 6.5 | 1.8 |
| MD132S | 6 | 3 | 7.7 | 960 | 79 | 0.75 | 1.4 | 6 | 1.8 |
| 4 | 4 | 9.5 | 1440 | 80 | 0.82 | 1.3 | 6.5 | 1.8 |
| MD132M | 6 | 4 | 9.8 | 960 | 81 | 0.76 | 1.4 | 6 | 1.8 |
| 4 | 5.5 | 12.3 | 1440 | 80 | 0.85 | 1.3 | 6.5 | 1.8 |
| MD160M | 6 | 6.5 | 15.1 | 970 | 84 | 0.78 | 1.4 | 6 | 1.8 |
| 4 | 8 | 17.4 | 1460 | 83 | 0.85 | 1.3 | 6.5 | 1.8 |
| MD160L | 6 | 9 | 20.6 | 970 | 85 | 0.78 | 1.4 | 6 | 1.8 |
| 4 | 11 | 23.4 | 1460 | 84 | 0.85 | 1.3 | 6.5 | 1.8 |
| MD90L | 8 | 0.45 | 1.9 | 680 | 58 | 0.63 | 1.5 | 5.5 | 1.8 |
| 4 | 0.75 | 1.92 | 1420 | 72 | 0.87 | 1.5 | 6.5 | 1.8 |
| MD100L | 8 | 0.85 | 3.1 | 700 | 68 | 0.63 | 1.5 | 5.5 | 1.8 |
| 4 | 1.5 | 3.5 | 1420 | 75 | 0.88 | 1.5 | 6.5 | 1.8 |
| MD112M | 8 | 1.5 | 5 | 700 | 72 | 0.63 | 1.5 | 5.5 | 1.8 |
| 4 | 2.4 | 5.3 | 1420 | 78 | 0.88 | 1.5 | 6.5 | 1.8 |
| MD132S | 8 | 2.2 | 7 | 720 | 75 | 0.64 | 1.5 | 5.5 | 1.8 |
| 4 | 3.3 | 7.1 | 1450 | 80 | 0.88 | 1.5 | 6.5 | 1.8 |
| MD132M | 8 | 3 | 9 | 720 | 78 | 0.65 | 1.5 | 5.5 | 1.8 |
| 4 | 4.5 | 9.4 | 1440 | 82 | 0.88 | 1.5 | 6.5 | 1.8 |
| MD160M | 8 | 5 | 13.9 | 730 | 83 | 0.66 | 1.5 | 5.5 | 1.8 |
| 4 | 7.5 | 15.2 | 1450 | 84 | 0.89 | 1.5 | 6.5 | 1.8 |
| MD160 | 8 | 7 | 19 | 730 | 85 | 0.66 | 1.5 | 5.5 | 1.8 |
| 4 | 11 | 21.8 | 1450 | 86 | 0.89 | 1.5 | 6.5 | 1.8 |
| MD90S | 8 | 0.35 | 1.6 | 680 | 56 | 0.6 | 1.5 | 5 | 1.8 |
| 6 | 0.45 | 1.4 | 930 | 70 | 0.72 | 1.5 | 6 | 1.8 |
| MD90L | 8 | 0.45 | 1.9 | 680 | 59 | 0.6 | 1.5 | 5 | 1.8 |
| 6 | 0.65 | 1.9 | 930 | 71 | 0.73 | 1.5 | 6 | 1.8 |
| MD100L | 8 | 0.72 | 2.9 | 710 | 65 | 0.6 | 1.5 | 5 | 1.8 |
| 6 | 1.1 | 3.1 | 950 | 75 | 0.73 | 1.5 | 6 | 1.8 |
| MD112M | 8 | 1.3 | 4.5 | 710 | 72 | 0.61 | 1.5 | 5 | 1.8 |
| 6 | 1.8 | 4.8 | 950 | 78 | 0.73 | 1.5 | 6 | 1.8 |
| MD132S | 8 | 1.8 | 5.8 | 730 | 72 | 0.62 | 1.5 | 5 | 1.8 |
| 6 | 2.4 | 6.2 | 970 | 80 | 0.73 | 1.5 | 6 | 1.8 |
| MD132M | 8 | 2.6 | 8.2 | 730 | 78 | 0.62 | 1.5 | 5 | 1.8 |
| 6 | 3.7 | 9.4 | 970 | 82 | 0.73 | 1.5 | 6 | 1.8 |
| MD160M | 8 | 4.5 | 13.3 | 730 | 83 | 0.62 | 1.5 | 5 | 1.8 |
| 6 | 6 | 14.7 | 980 | 85 | 0.73 | 1.5 | 6 | 1.8 |
| MD160L | 8 | 6 | 17.5 | 730 | 84 | 0.62 | 1.5 | 5 | 1.8 |
| 6 | 8 | 19.4 | 980 | 86 | 0.73 | 1.5 | 6 | 1.8 |
| MD160M | 12 | 2.6 | 11.6 | 480 | 75 | 0.46 | 1.2 | 4 | 18 |
| 6 | 5 | 11.9 | 970 | 84 | 0.78 | 1.3 | 6 | 1.8 |
| MD160L | 12 | 3.7 | 16.4 | 480 | 77 | 0.46 | 1.2 | 4 | 1.8 |
| 6 | 7 | 15.8 | 970 | 85 | 0.79 | 1.3 | 6 | 1.8 |
Package
Frame NO. 80--132 :Package by carton box and then packed by wooden box
Frame NO.160 and above:one wooden box per set
