| Prod Model: |
HMIEJ(DC)180M-4-22KW |
| Frame Size: |
180 |
| Pole: |
4 |
| Rated Power: |
22kw |
| Rated Voltage: |
220/380V, 380/660V, 230/400V, 400V/690V |
| Frequency: |
50Hz, 60Hz |
| Protection Class: |
IP44, IP45, IP55 |
| Insulation Class: |
B;F;H |
| Installation Method: |
B3, B5, B14, B35multi and Pad Mounting |
| Cooling Method: |
IC411 |
| Duty: |
S1 |
| Application: |
Universal |
| Operating Speed: |
Constant Speed |
| Structure And Working Principle: |
Brush |
| Certification: |
Ce & UL & Saso |
| Brand: |
Hongma |
Product Description

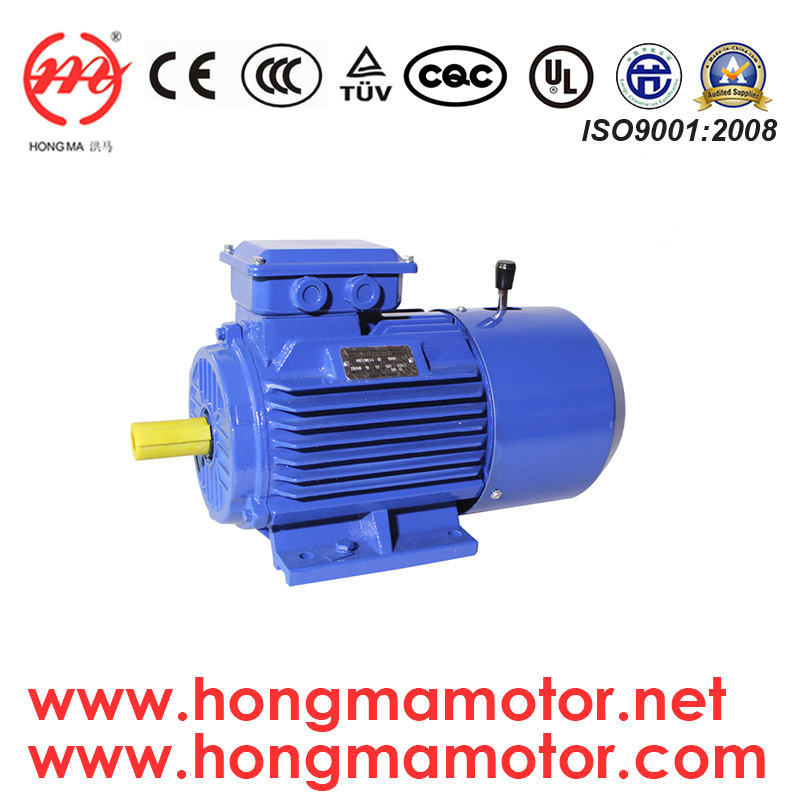

HMEJ (DC) Series Self-braking Electric Motor
HMEJ (DC) Series Self-braking Electric Motor which is totally enclosed squirrel cage with additional DC brake of disk type. It has advantage of fast brake, simple structure, high reliability and good versatility. In additional, the brake has manual work releasing structure which is widely used in mechanical equipment and transmissions devices for various requirements of rapid stop and accurate positioning.
Technical Data
| | HMEJ |
| Electric Current | DC |
| Housing Material | Cast Iron |
| Frame Size Range | 180 |
| Pole | 4 |
| Rated Power Range(kw) | 22 |
| Rated Voltage Range | 220/380V,380/660V,230/400V,400V/690V |
| Frequency | 50HZ/60HZ |
| Protection Class | IP44,IP54,IP55 |
| Insulation Class | B\F\H |
| Mounting Type | B3,B5,B14,B35multi and pad mounting |
| Cooling Method | IC411 |
| Teriminal Box | Top Mounted |
| Type | Rate Power | Speed | Current | | | | | Energizing Power | Ist/In | Tst/TN | | |
| KW | RPM | A | % | CosΦ | N.m | S | W | | | | KG |
| 380V/50HZ 2POLE 3000RPM |
| HMEJ(DC) 63M1 | 0.18 | 2720 | 0.53 | 65 | 0.8 | 4 | 0.2 | 18 | 5.5 | 2.2 | 2.2 | 12 |
| HMEJ(DC) 63M1 | 0.25 | 2720 | 0.69 | 68 | 0.81 | 4 | 0.2 | 18 | 5.5 | 2.2 | 2.2 | 13 |
| HMEJ(DC) 71M1 | 0.37 | 2740 | 0.99 | 70 | 0.81 | 4 | 0.2 | 18 | 6.1 | 2.2 | 2.2 | 14 |
| HMEJ(DC) 71M2 | 0.55 | 2740 | 1.4 | 73 | 0.82 | 4 | 0.2 | 18 | 6.1 | 2.2 | 2.3 | 15 |
| HMEJ(DC) 80M1 | 0.75 | 2845 | 1.83 | 75 | 0.83 | 7.5 | 0.2 | 30 | 6.1 | 2.2 | 2.3 | 17 |
| HMEJ(DC) 80M2 | 1.1 | 2840 | 2.58 | 77 | 0.84 | 7.5 | 0.2 | 30 | 7 | 2.2 | 2.3 | 18 |
| HMEJ(DC) 90S | 1.5 | 2840 | 3.43 | 79 | 0.84 | 15 | 0.2 | 50 | 7 | 2.2 | 2.3 | 23 |
| HMEJ(DC) 90L | 2.2 | 2840 | 4.85 | 81 | 0.85 | 15 | 0.2 | 50 | 7 | 2.2 | 2.3 | 26 |
| HMEJ(DC) 100L | 3 | 2860 | 6.31 | 83 | 0.87 | 30 | 0.2 | 65 | 7.5 | 2.2 | 2.3 | 37 |
| HMEJ(DC) 112M | 4 | 2880 | 8.1 | 85 | 0.88 | 40 | 0.25 | 90 | 7.5 | 2.2 | 2.3 | 45 |
| HMEJ(DC) 132S1 | 5.5 | 2900 | 11 | 86 | 0.88 | 75 | 0.25 | 90 | 7.5 | 2.2 | 2.3 | 69 |
| HMEJ(DC) 132S2 | 7.5 | 2900 | 14.9 | 87 | 0.88 | 75 | 0.25 | 90 | 7.5 | 2.2 | 2.3 | 72 |
| HMEJ(DC) 160M1 | 11 | 2930 | 21.3 | 88 | 0.89 | 150 | 0.35 | 150 | 7.5 | 2.2 | 2.3 | 120 |
| HMEJ(DC) 160M2 | 15 | 2930 | 28.8 | 89 | 0.89 | 150 | 0.35 | 150 | 7.5 | 2.2 | 2.3 | 130 |
| HMEJ(DC) 160L | 18.5 | 2930 | 34.7 | 90 | 0.9 | 150 | 0.35 | 150 | 7.5 | 2.2 | 2.3 | 149 |
| HMEJ(DC) 180M | 22 | 2940 | 40.8 | 91 | 0.9 | 200 | 0.35 | 150 | 7.5 | 2 | 2.3 | 189 |
| HMEJ(DC) 200L1 | 30 | 2950 | 55.3 | 91.6 | 0.9 | 300 | 0.45 | 200 | 7.5 | 2 | 2.3 | 243 |
| HMEJ(DC) 200L2 | 37 | 2950 | 67.6 | 92.4 | 0.9 | 300 | 0.45 | 200 | 7.5 | 2 | 2.3 | 267 |
| HMEJ(DC) 225M | 45 | 2970 | 82 | 92.7 | 0.9 | 400 | 0.45 | 200 | 7.5 | 2 | 2.3 | 323 |
| 380V/50HZ 4POLE 1500RPM |
| HMEJ(DC) 63M1 | 0.12 | 1310 | 0.44 | 57 | 0.72 | 4 | 0.2 | 18 | 4.4 | 2.1 | 2.2 | 13 |
| HMEJ(DC) 63M2 | 0.18 | 1310 | 0.62 | 60 | 0.73 | 4 | 0.2 | 18 | 4.4 | 2.1 | 2.2 | 14 |
| HMEJ(DC) 71M1 | 0.25 | 1330 | 0.79 | 65 | 0.74 | 4 | 0.2 | 18 | 5.2 | 2.1 | 2.2 | 15 |
| HMEJ(DC) 71M2 | 0.37 | 1330 | 1.12 | 67 | 0.75 | 4 | 0.2 | 18 | 5.2 | 2.1 | 2.2 | 16 |
| HMEJ(DC) 80M1 | 0.55 | 1390 | 1.57 | 71 | 0.75 | 7.5 | 0.2 | 30 | 5.2 | 2.4 | 2.3 | 17 |
| HMEJ(DC) 80M2 | 0.75 | 1390 | 2.03 | 73 | 0.76 | 7.5 | 0.2 | 30 | 6 | 2.3 | 2.3 | 18 |
| HMEJ(DC) 90S | 1.1 | 1380 | 2.89 | 75 | 0.77 | 15 | 0.2 | 50 | 6 | 2.3 | 2.3 | 22 |
| HMEJ(DC) 90L | 1.5 | 1390 | 3.07 | 78 | 0.79 | 15 | 0.2 | 50 | 6 | 2.3 | 2.3 | 27 |
| HMEJ(DC) 100L | 2.2 | 1390 | 5.16 | 80 | 0.81 | 30 | 0.2 | 65 | 7 | 2.3 | 2.3 | 34 |
| HMEJ(DC) 100L2 | 3 | 1410 | 6.78 | 82 | 0.82 | 30 | 0.2 | 65 | 7 | 2.3 | 2.3 | 38 |
| HMEJ(DC) 112M | 4 | 1410 | 8.8 | 84 | 0.82 | 40 | 0.25 | 90 | 7 | 2.3 | 2.3 | 48 |
| HMEJ(DC) 132S | 5.5 | 1435 | 11.7 | 85 | 0.83 | 75 | 0.25 | 90 | 7 | 2.3 | 2.3 | 71 |
| HMEJ(DC) 132M | 7.5 | 1440 | 15.6 | 87 | 0.84 | 75 | 0.25 | 150 | 7 | 2.3 | 2.3 | 83 |
| HMEJ(DC) 160M | 11 | 1440 | 22.3 | 88 | 0.84 | 150 | 0.35 | 150 | 7 | 2.2 | 2.3 | 128 |
| HMEJ(DC) 160L | 15 | 1460 | 30.1 | 89 | 0.85 | 150 | 0.35 | 150 | 7 | 2.2 | 2.3 | 142 |
| HMEJ(DC) 180M | 18.5 | 1470 | 35.9 | 91 | 0.86 | 200 | 0.35 | 150 | 8 | 2.2 | 2.3 | 184 |
| HMEJ(DC) 180L | 22 | 1470 | 42.6 | 91.3 | 0.86 | 200 | 0.35 | 150 | 8 | 2.2 | 2.3 | 197 |
| HMEJ(DC) 200L | 30 | 1470 | 57.4 | 92.4 | 0.86 | 300 | 0.45 | 200 | 7 | 2.2 | 2.3 | 264 |
| HMEJ(DC) 225S | 37 | 1480 | 69.6 | 92.9 | 0.87 | 300 | 0.45 | 200 | 7 | 2.2 | 2.3 | 303 |
| HMEJ(DC) 225M | 45 | 1480 | 84.3 | 93.3 | 0.87 | 400 | 0.45 | 200 | 7 | 2.2 | 2.3 | 337 |
| HMEJ(DC) 71M1 | 0.18 | 850 | 0.74 | 56 | 0.66 | 4 | 0.2 | 18 | 4 | 1.9 | 2 | 9.5 |
| HMEJ(DC) 71M2 | 0.25 | 850 | 0.95 | 59 | 0.68 | 4 | 0.2 | 18 | 4 | 1.9 | 2 | 11 |
| HMEJ(DC) 80M1 | 0.37 | 885 | 1.3 | 62 | 0.7 | 7.5 | 0.2 | 30 | 4.7 | 1.9 | 2 | 17 |
| HMEJ(DC) 80M2 | 0.55 | 885 | 1.79 | 65 | 0.72 | 7.5 | 0.2 | 30 | 4.7 | 1.9 | 2.1 | 19 |
| HMEJ(DC) 90S | 0.75 | 910 | 2.29 | 69 | 0.72 | 15 | 0.2 | 50 | 5.5 | 2 | 2.1 | 22 |
| HMEJ(DC) 90L | 1.1 | 910 | 3.18 | 72 | 0.73 | 15 | 0.2 | 50 | 5.5 | 2 | 2.1 | 26 |
| HMEJ(DC) 100L | 1.5 | 920 | 3.94 | 76 | 0.75 | 30 | 0.2 | 65 | 6.5 | 2 | 2.1 | 34 |
| HMEJ(DC) 112M | 2.2 | 935 | 5.6 | 79 | 0.76 | 40 | 0.25 | 90 | 6.5 | 2 | 2.1 | 42 |
| HMEJ(DC) 132S | 3 | 960 | 7.4 | 81 | 0.76 | 75 | 0.25 | 90 | 6.5 | 2.1 | 2.1 | 68 |
| HMEJ(DC) 132M1 | 4 | 960 | 9.8 | 82 | 0.76 | 75 | 0.25 | 90 | 6.5 | 2.1 | 2.1 | 79 |
| HMEJ(DC) 132M2 | 5.5 | 960 | 12.9 | 84 | 0.77 | 75 | 0.25 | 90 | 6.5 | 2.1 | 2.1 | 87 |
| HMEJ(DC) 160M | 7.5 | 970 | 17 | 86 | 0.77 | 150 | 0.35 | 150 | 6.5 | 2 | 2.1 | 122 |
| HMEJ(DC) 160L | 11 | 970 | 24.2 | 87 | 0.78 | 150 | 0.35 | 150 | 6.5 | 2 | 2.1 | 141 |
| HMEJ(DC) 180L | 15 | 979 | 31.5 | 89.2 | 0.81 | 200 | 0.35 | 150 | 7 | 2 | 2.1 | 195 |
| HMEJ(DC) 200L1 | 18.5 | 970 | 38.4 | 90.3 | 0.81 | 300 | 0.45 | 200 | 7 | 2.1 | 2.1 | 217 |
| HMEJ(DC) 200L2 | 22 | 970 | 44.5 | 90.4 | 0.83 | 300 | 0.45 | 200 | 7 | 2.2 | 2.1 | 240 |
| HMEJ(DC) 225M | 30 | 980 | 59.1 | 91.8 | 0.84 | 400 | 0.45 | 200 | 7 | 2 | 2.1 | 323 |
| 380V/50HZ 8POLE 750RPM |
| HMEJ(DC) 80M1 | 0.18 | 645 | 0.88 | 51 | 0.61 | 7.5 | 0.2 | 30 | 3.3 | 1.8 | 1.9 | 17 |
| HMEJ(DC) 80M2 | 0.25 | 645 | 1.15 | 54 | 0.61 | 7.5 | 0.2 | 50 | 3.3 | 1.8 | 1.9 | 19 |
| HMEJ(DC) 90S | 0.37 | 670 | 1.49 | 62 | 0.61 | 15 | 0.2 | 50 | 4 | 1.8 | 1.9 | 23 |
| HMEJ(DC) 90L | 0.55 | 670 | 2.18 | 63 | 0.61 | 15 | 0.2 | 50 | 4 | 1.8 | 2 | 25 |
| HMEJ(DC) 100L1 | 0.75 | 680 | 2.17 | 71 | 0.67 | 30 | 0.2 | 65 | 4 | 1.8 | 2 | 33 |
| HMEJ(DC) 100L2 | 1.1 | 680 | 2.39 | 73 | 0.69 | 30 | 0.2 | 65 | 5 | 1.8 | 2 | 38 |
| HMEJ(DC) 112M | 1.5 | 690 | 4.5 | 75 | 0.69 | 40 | 0.25 | 90 | 5 | 1.8 | 2 | 50 |
| HMEJ(DC) 132S | 2.2 | 705 | 6 | 78 | 0.71 | 75 | 0.25 | 90 | 6 | 1.8 | 2 | 63 |
| HMEJ(DC) 132M | 3 | 705 | 7.9 | 79 | 0.73 | 75 | 0.25 | 90 | 6 | 1.8 | 2 | 79 |
| HMEJ(DC) 160M1 | 4 | 720 | 10.3 | 81 | 0.73 | 150 | 0.35 | 150 | 6 | 1.9 | 2 | 118 |
| HMEJ(DC) 160M2 | 5.5 | 720 | 13.6 | 83 | 0.74 | 150 | 0.35 | 150 | 6 | 2 | 2 | 119 |
| HMEJ(DC) 160L | 7.5 | 720 | 17.8 | 85.5 | 0.75 | 150 | 0.35 | 150 | 6 | 2 | 2 | 145 |
| HMEJ(DC) 180L | 11 | 730 | 25.1 | 87.8 | 0.76 | 300 | 0.35 | 150 | 6.6 | 2 | 2 | 193 |
| HMEJ(DC) 200L | 15 | 730 | 34 | 88.3 | 0.76 | 300 | 0.45 | 200 | 6.6 | 2 | 2 | 250 |
| HMEJ(DC) 225S | 18.5 | 730 | 40.9 | 90.4 | 0.76 | 300 | 0.45 | 200 | 6.6 | 1.9 | 2 | 261 |
| HMEJ(DC) 225M | 22 | 740 | 47.1 | 91 | 0.78 | 150 | 0.45 | 200 | 6.6 | 1.9 | 2 | 283 |
Connection:
Power under 3KW selects Star connection;Power up 3KW selects Delta connection
Package
The range of frame size from 80 to 132 :Package by carton box and then
packed by wooden box
The range of frame size 160 and above:one wooden box per set
